1323 Stance Flexion 5-Bar Pneumatic Knee
Quick Links
Product information

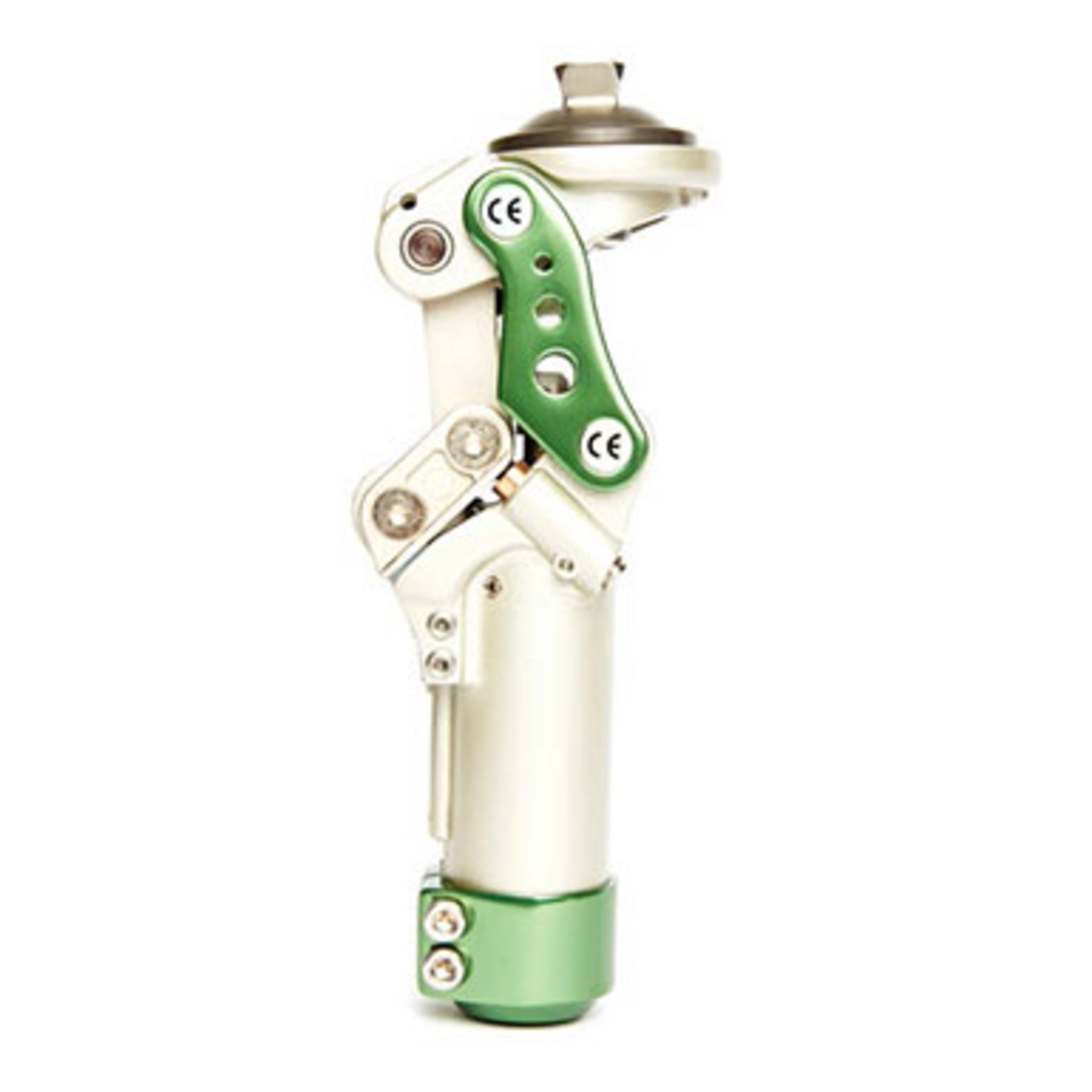

The 1323 Stance Flexion 5-Bar Pneumatic Knee features a pneumatic cylinder with independent flexion and extension adjustment for swing phase. It is designed for patients with low to high activity levels and high safety needs.
- Axes have built-in bearing
- Alignment adjusting abilities
- Proximal attachment has 2mm of A/P, M/L slide, and rotation adjustment
- Adjustable extension assist
- Adjustable from high to low stability stance flexion
- Up to 12 degree of stance flexion
Specifications
- Activity Level: K3
- Knee Design Type: 4-Bar Linkage or Multi-Axial, Pneumatic Swing Phase Control
- Axis: Polycentric, 5-Bar
- Swing Phase: Pneumatic
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 976-998
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 135 Degrees
- Proximal Connection: Pyramid Adapter, Lotus Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from purchase date
| Activity Level: | K3 (High) |
|---|---|
| Amputation Level: | Transfemoral (TF/AK) |
| Material: | Stainless Steel |
| User: | Adult |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs) |
| Axis Type: | Polycentric |
| Distal Connection: | Tube Clamp |
| Proximal Connection: | Loop Adapter, Male Pyramid Adapter |
| Stance Phase: | Friction |
| Swing Phase: | Pneumatic |
