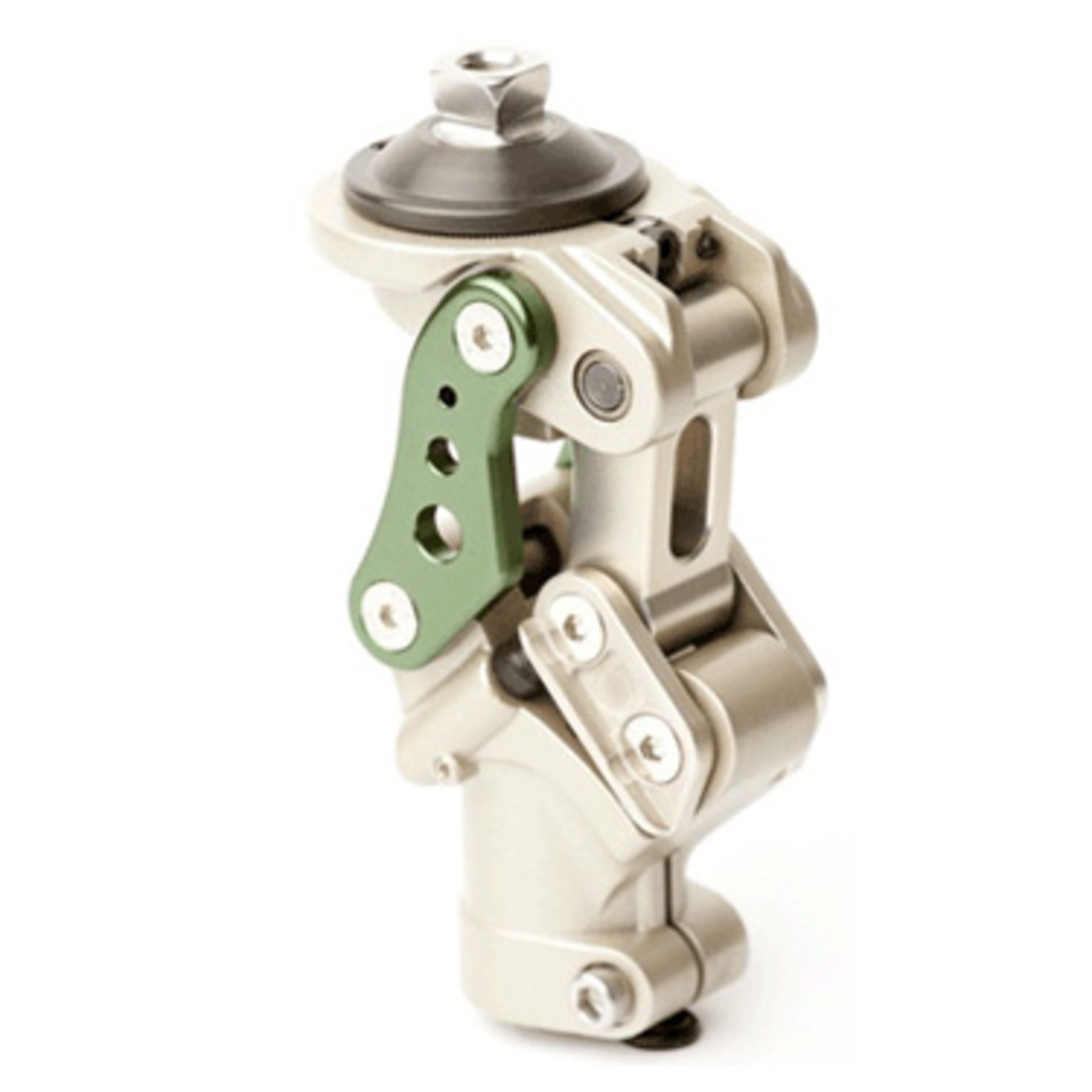

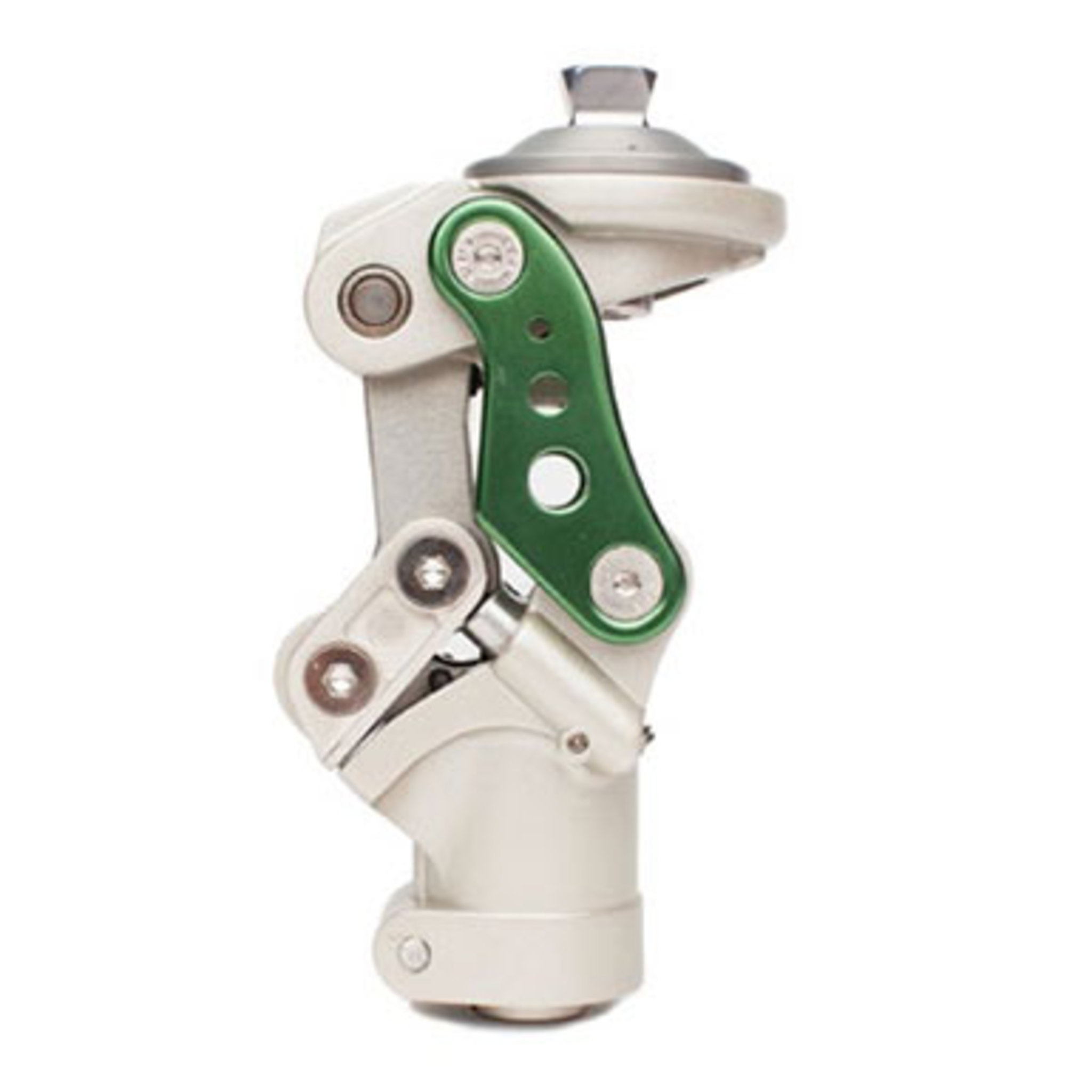

1324 Stance Flexion 5-Bar Mechanical Knee
Quick Links
Product information
The 1324 Stance Flexion 5-Bar Mechanical Knee features alignment and adjusting abilities for a smooth and natural gait pattern. The system forces the geometry into a very stable position at heel contact until the patient rolls over the toe to release the knee into swing.
- Axes have built-in bearing
- Adjustable constant friction for swing phase resistance
- Proximal attachment has 2mm of A/P, M/L slide, and rotation adjustment
- Adjustable from high to low stability stance flexion
- Up to 12 degree of stance flexion
- Optional manual lock mechanism
Specifications
- Activity Level: K2
- Knee Design Type: 4-Bar Linkage, Friction Swing Phase Control
- Axis: Polycentric, 5-Bar
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 789-801
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 135 Degrees
- Proximal Connection: Lotus Adapter, Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from purchase date
| Activity Level: | K1 (Low), K2 (Moderate) |
|---|---|
| Amputation Level: | Knee Disarticulation, Transfemoral (TF/AK) |
| Material: | Stainless Steel |
| User: | Adult |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs) |
| Axis Type: | Polycentric |
| Distal Connection: | Tube Clamp |
| Proximal Connection: | Loop Adapter, Male Pyramid Adapter |
| Stance Phase: | Friction |
| Swing Phase: | Friction |
