ALLUX 2 Knee
Quick Links
Product information

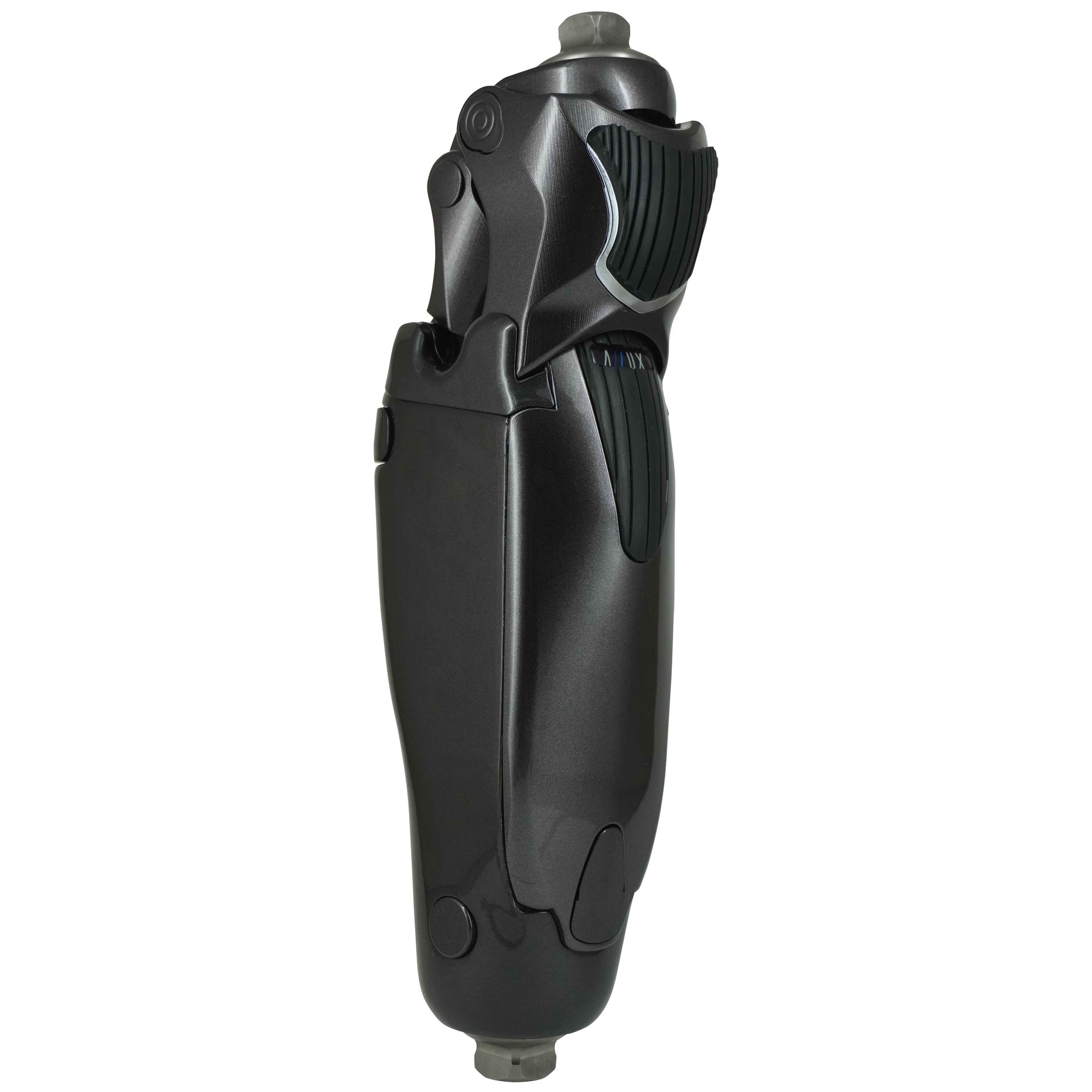

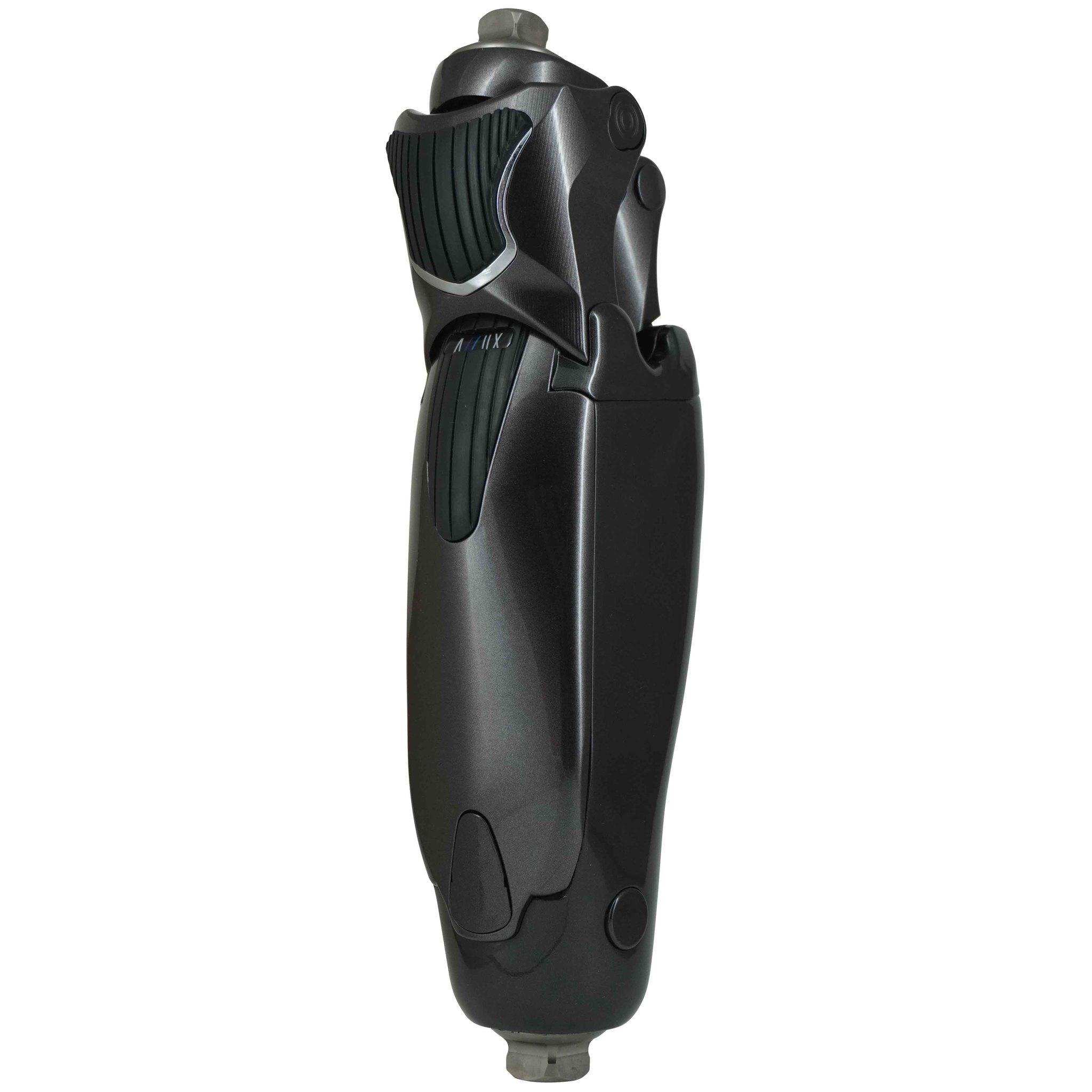

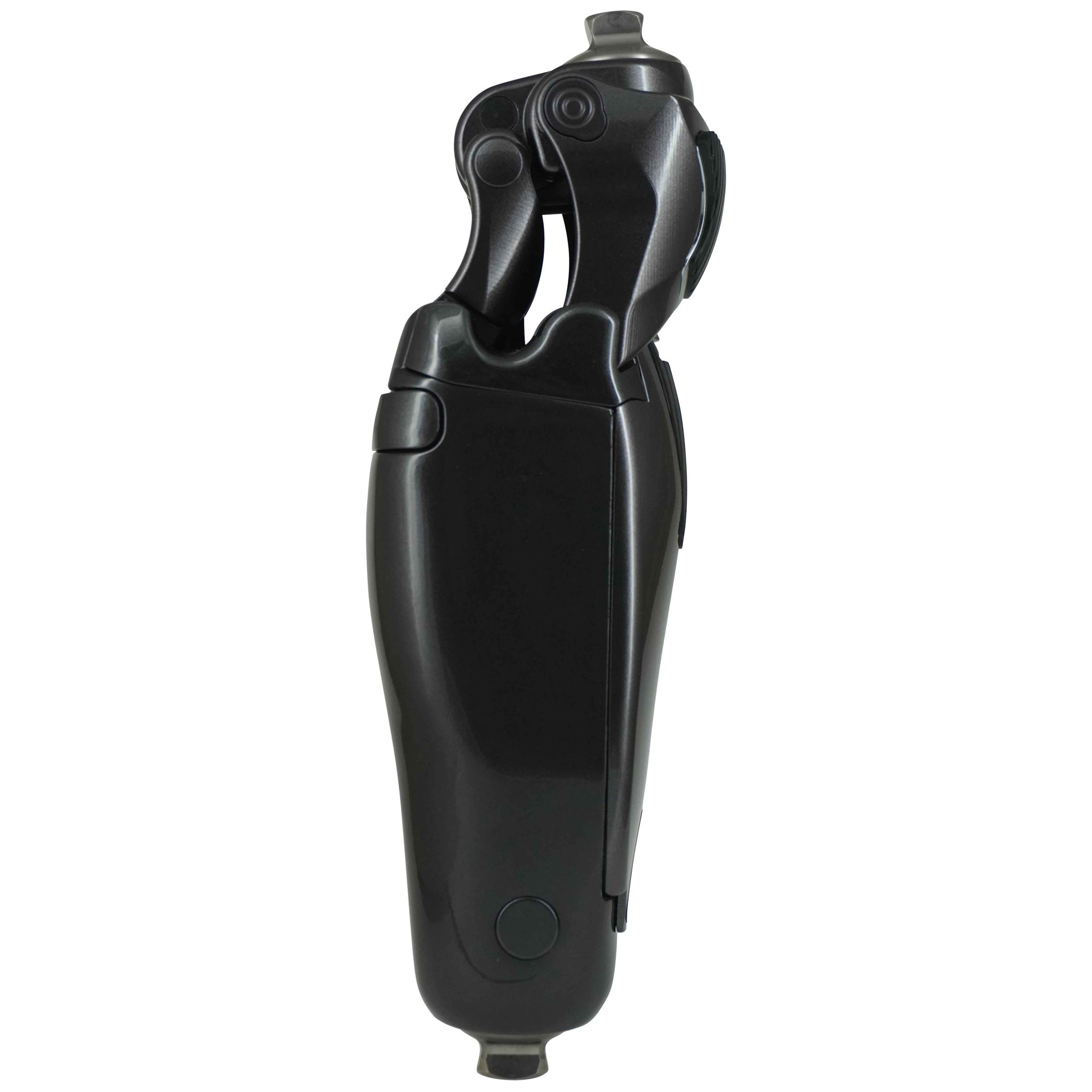

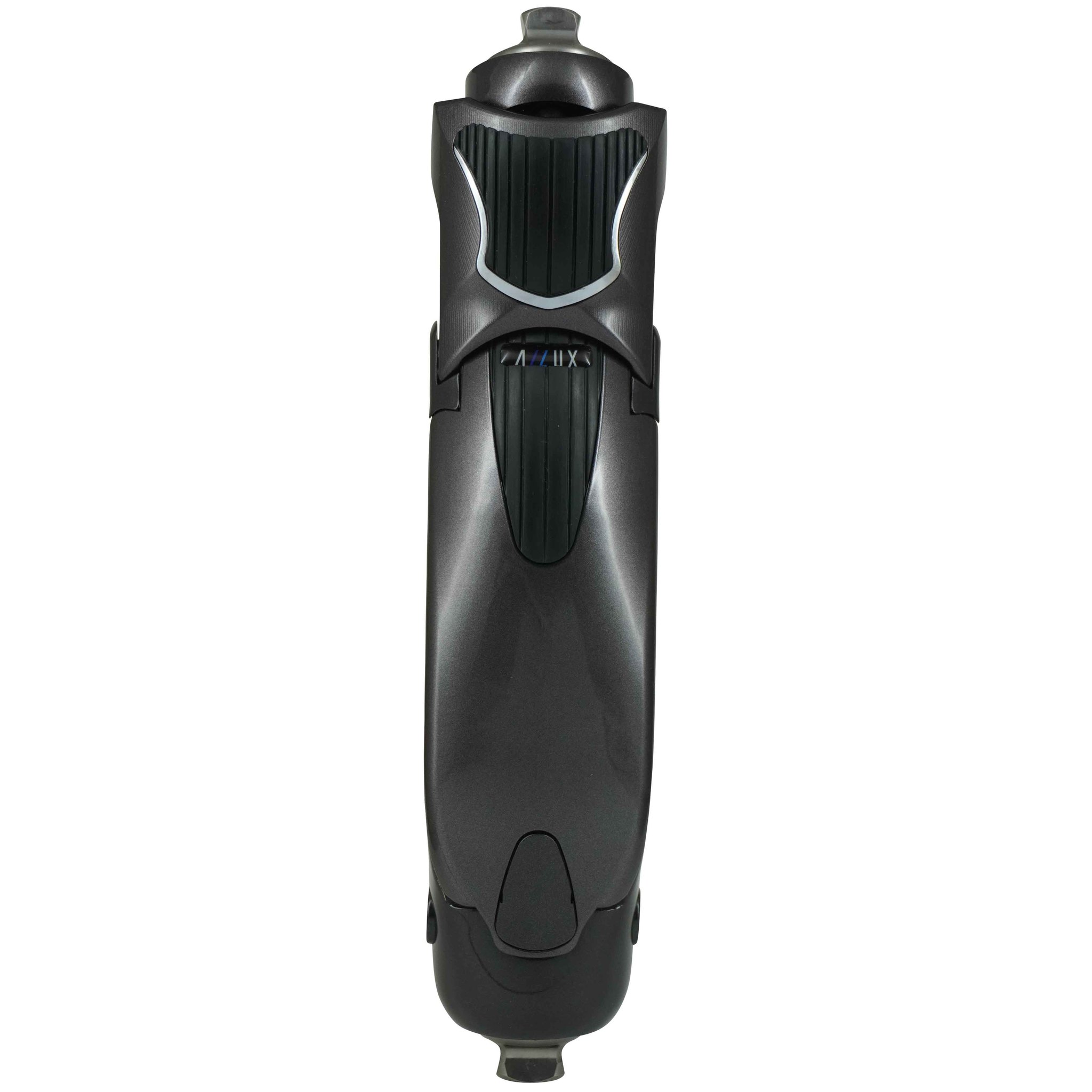

ALLUX 2 is the first 4-Bar MPK that controls both stance, and swing phase. Its unique design boasts a dual safety system based on inherent stability factors and microprocessor control. ALLUX 2 heightens safety and security while providing exceptional functionality to the user.
- Programmable & Adjustable via Bluetooth device
- Redesigned 4-Bar linkage utilizing needle bearings
- Smoother movement and increased durability
- Improved Water Resistance (IP44)
- Industry-leading range of motion (180° flexion)
- Increased toe clearance reduces risk of stumble
- Extended Warranty Available
Specifications
- Activity Level: K2, K3
- Knee Design Type: Single Axis, Pneumatic Swing, Friction Stance Control
- Axis: Single Axis
- Swing Phase: Hydraulic, Microprocessor
- Stance Phase: Hydraulic, Microprocessor
- Control Frame Material: Titanium
- Product Weight (g): 1,520
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 180 Degrees
- Proximal Connection: Pyramid Adapter, Threaded Adapter
- Distal Connection: Pyramid Adapter
- Trial Period: N/A
- Warranty: 36 months from invoice date
| Activity Level: | K2 (Moderate), K3 (High) |
|---|---|
| Amputation Level: | Knee Disarticulation, Transfemoral (TF/AK) |
| Key Features: | Microprocessor Product |
| Material: | Acrylic |
| User: | Adult |
| Weight Limit: | 125 kg (275 lbs) |
| Axis Type: | Polycentric |
| Distal Connection: | Male Pyramid Adapter |
| Proximal Connection: | Male Pyramid Adapter, Threaded Adapter |
| Stance Phase: | Hydraulic, Microprocessor |
| Swing Phase: | Hydraulic, Microprocessor |
