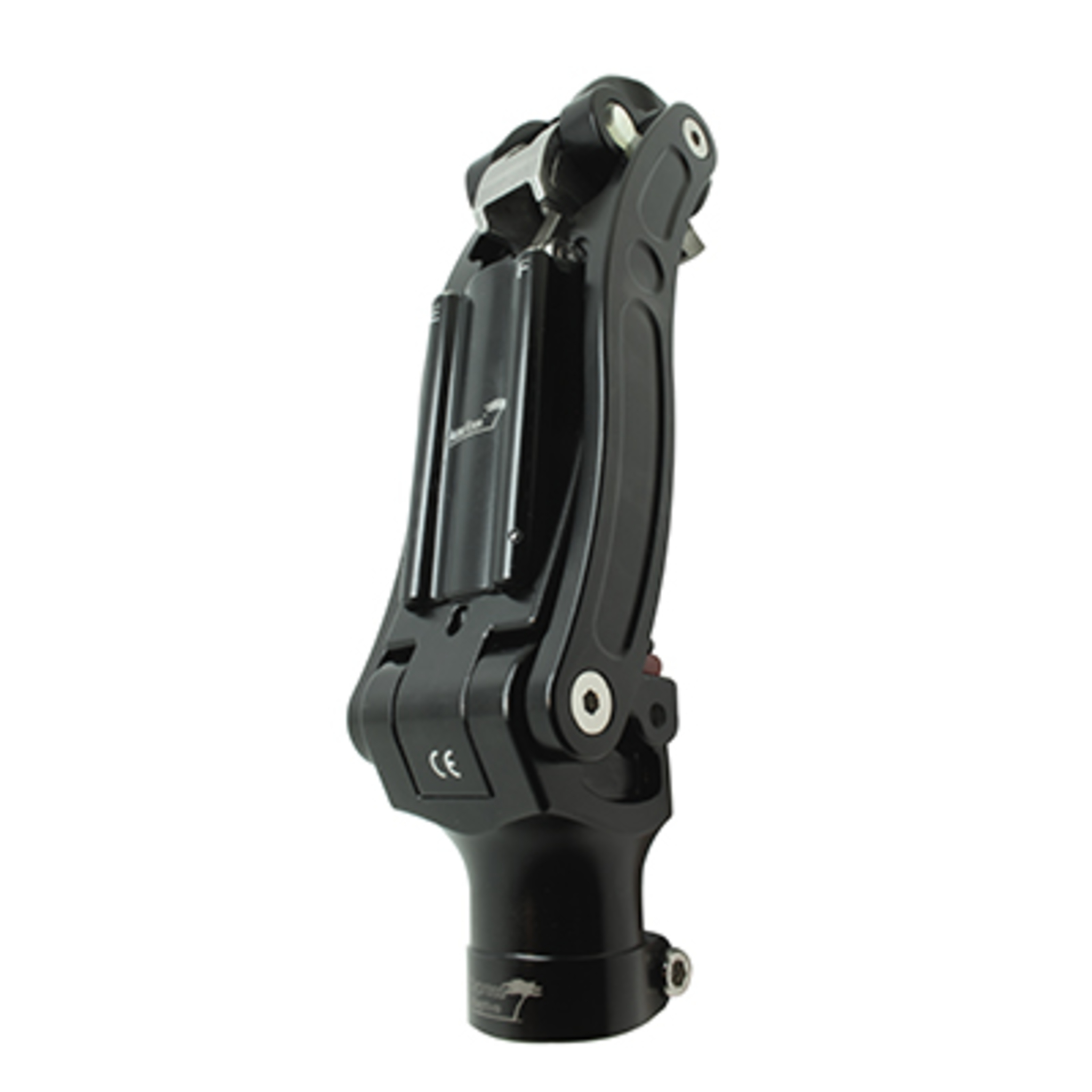

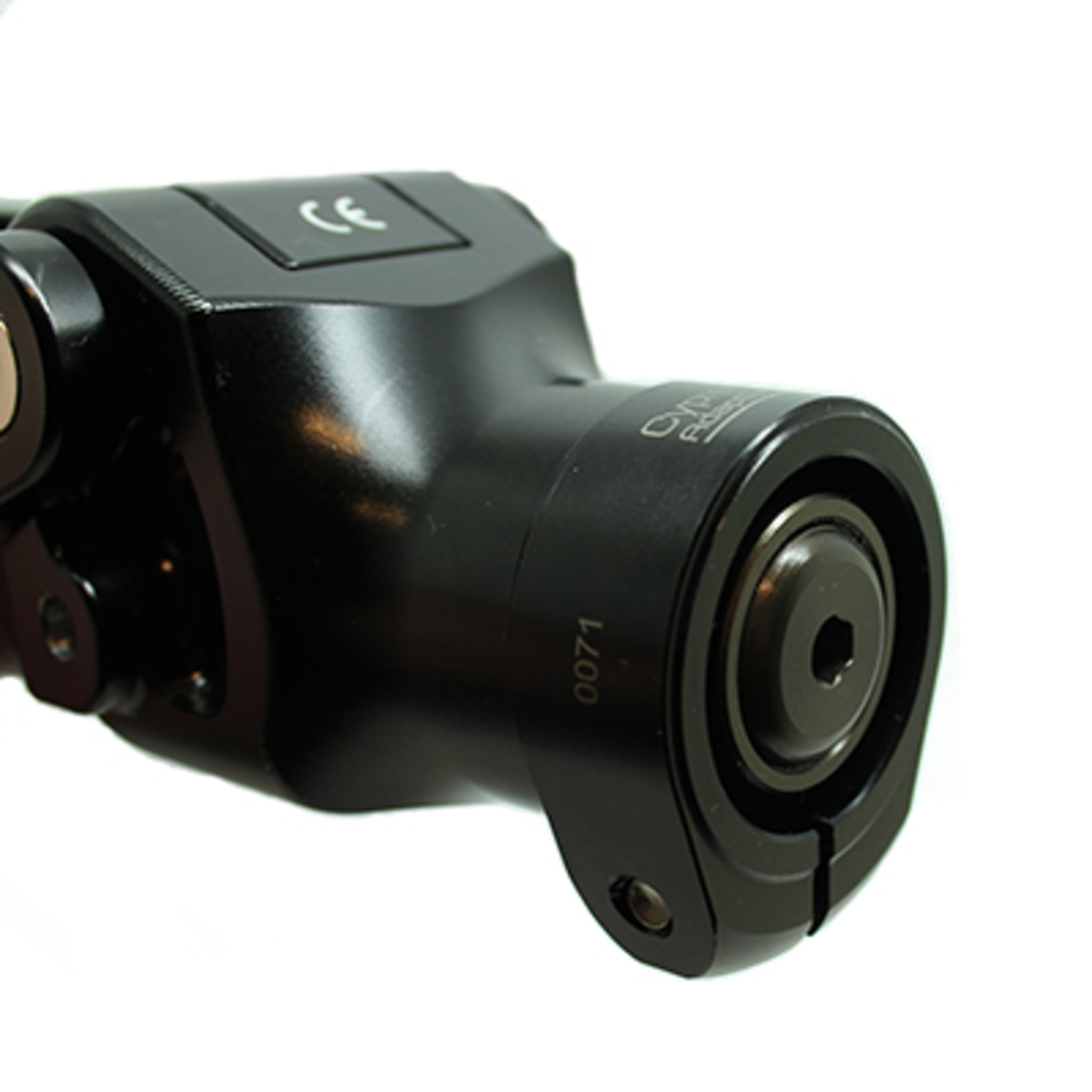

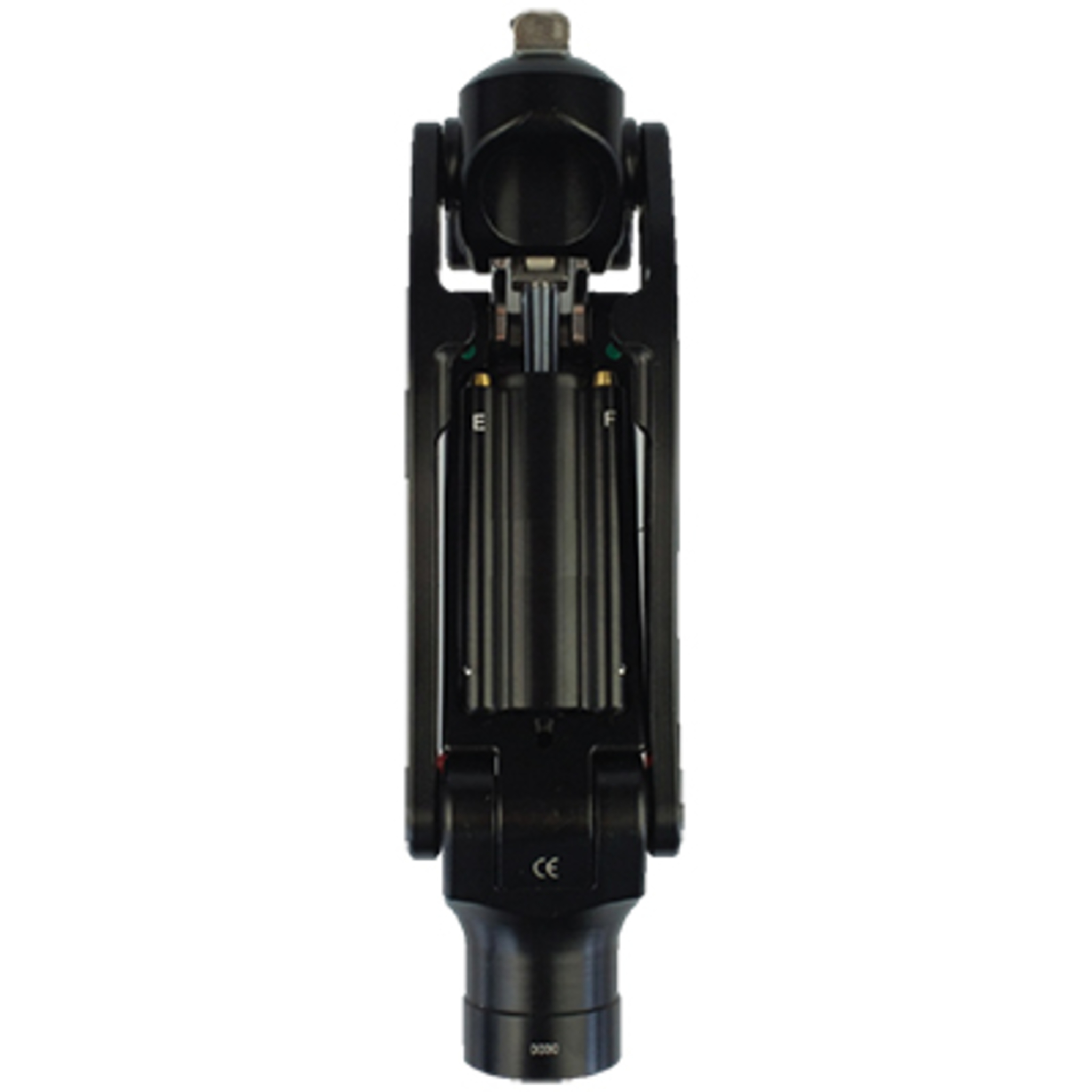

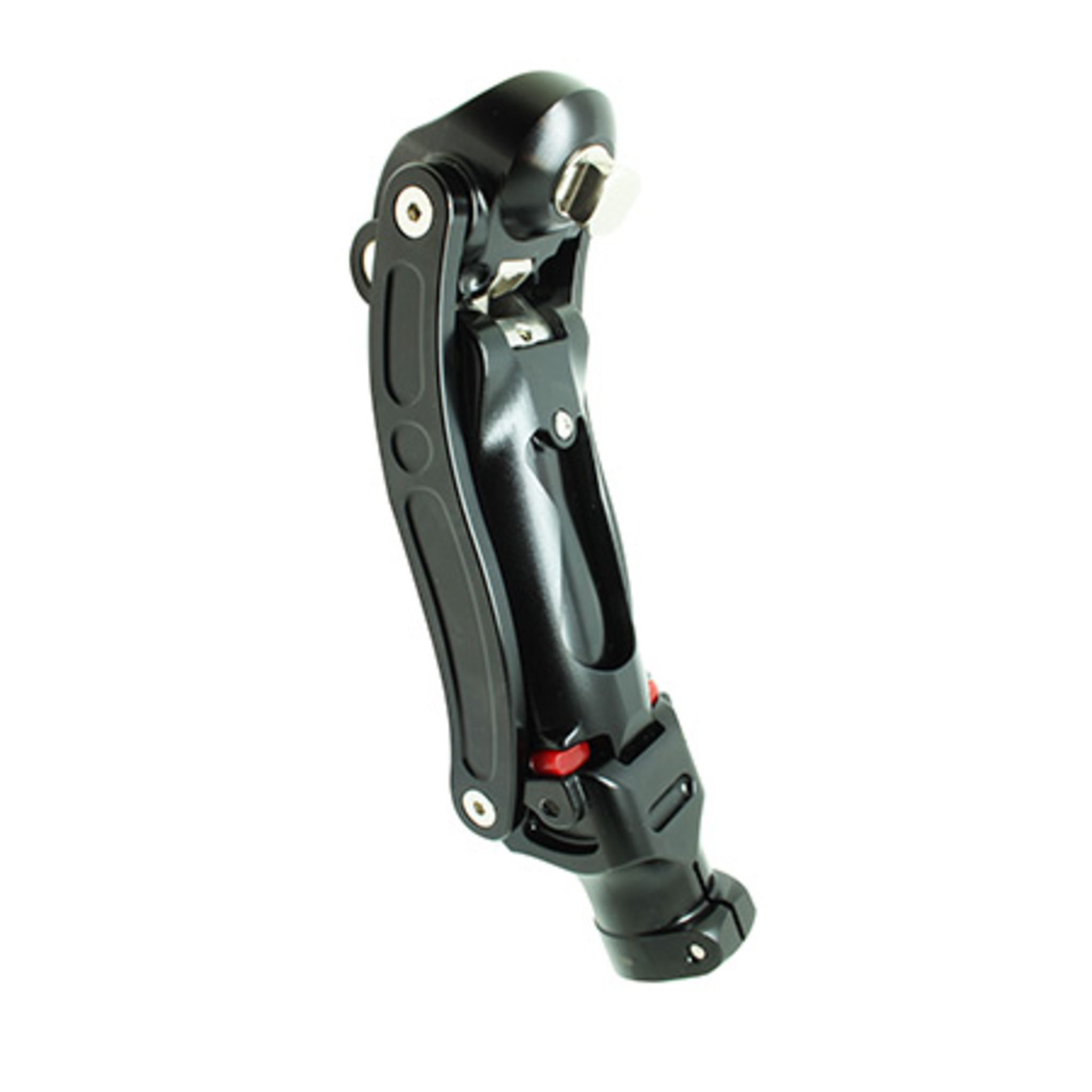

Actua Knee™
Quick Links
Product information
The Actua Knee™ is a polycentric pneumatic knee joint with stance flexion The stance flexion function can be fine-tuned to ensures optimal comfort during loading. The patented horizontal hydraulic cylinder contributes to the knee’s compact size.
- Adjustable swing performance, extension and flexion
- Non-adjustable spring extension assist
- Long steering knuckles ensure high stability
- High degree of knee flexion
Specifications
- Activity Level: K3
- Knee Design Type: Multi-Axial 4-Bar Linkage, Pneumatic Swing Control
- Axis: Polycentric
- Swing Phase: Pneumatic
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 1,155
- Maximum User Weight: 300lbs (136kg)
- Maximum Knee Flexion Angle: 145 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: 30 days from delivery date
- Warranty: 24 months from delivery date
| Activity Level: | K3 (High) |
|---|---|
| Amputation Level: | Transfemoral (TF/AK) |
| Material: | Stainless Steel |
| User: | Adult |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs) |
| Axis Type: | Polycentric |
| Distal Connection: | Tube Clamp |
| Proximal Connection: | Male Pyramid Adapter |
| Stance Phase: | Friction |
| Swing Phase: | Pneumatic |
