All-Terrain Knee Premium HD with Threaded Top

Product information

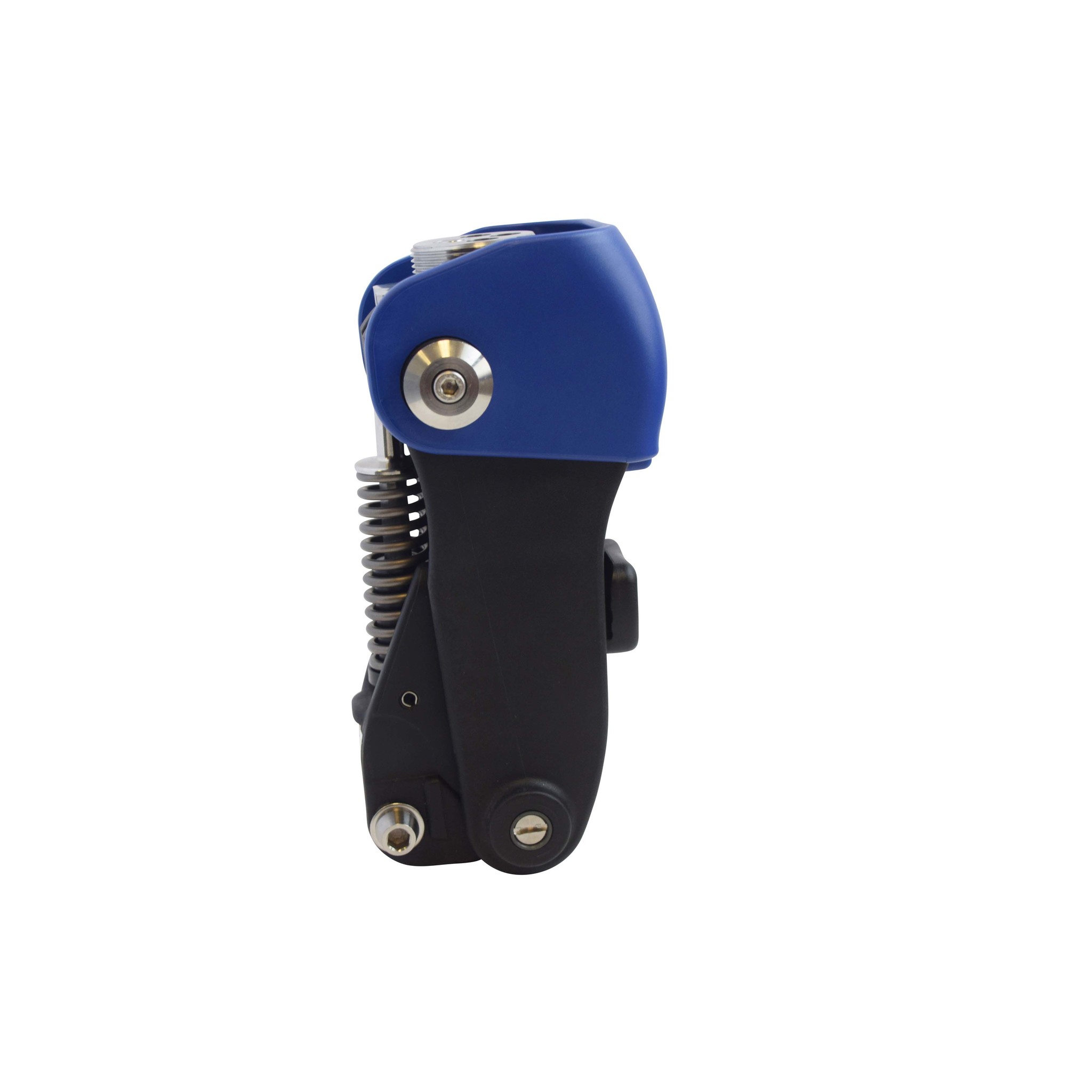

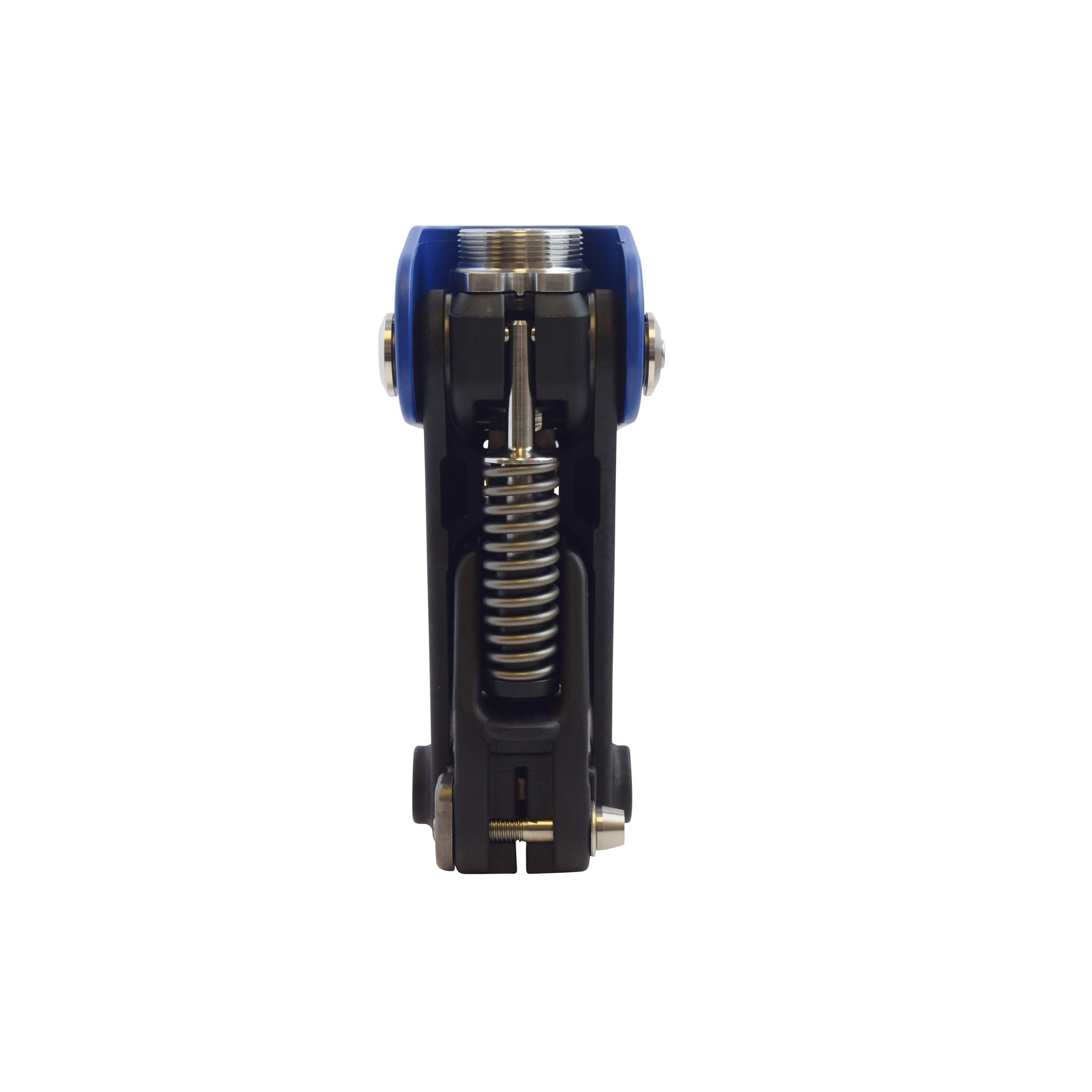

The All-Terrain Knee Premium HD with Threaded Top features patented AutoLock Technology promotes proper gait mechanics aiding in a more natural gait and energy efficient stride, now with a weight rating of up to 440 lbs. The Variable Cadence Controller facilitates multiple walking speeds without the use of hydraulics or pneumatics.

  • Now with a 440 lb weight rating
  • Simple twist-knob secondary manual lock
  • Waterproof and corrosion resistant in freshwater and saltwater
  • Supports transfemoral and knee disarticulation amputations
  • Demo available upon request: Contact your Sales Representative to request a 30-day loaner to trial for your patient

Specifications

  • Activity Level: K1, K2, K3, K4
  • Knee Design Type: 4-Bar Linkage, Friction Swing Phase Control
  • Axis: Polycentric
  • Swing Phase: Friction, Variable Cadence Controller
  • Stance Phase: Friction, AutoLock Technology
  • Control Frame Material: Fiber-Reinforced Composites, Stainless Steel
  • Product Weight (g): 1,049
  • Maximum User Weight: 440lbs (200kg)
  • Maximum Knee Flexion Angle: 150 Degrees
  • Proximal Connection: Pyramid Adapter
  • Distal Connection: 30mm Tube Clamp
  • Trial Period: 30 day demo available upon request
  • Warranty: 24 months from purchase date
Material: Thermal, Urethane
Axis Type: Polycentric
Distal Connection: Tube Clamp
Proximal Connection: Threaded Adapter
Stance Phase: Friction
Swing Phase: Friction
