Alpha Interlock™ Suspension System with Alpha® Lock
Quick Links
Product information

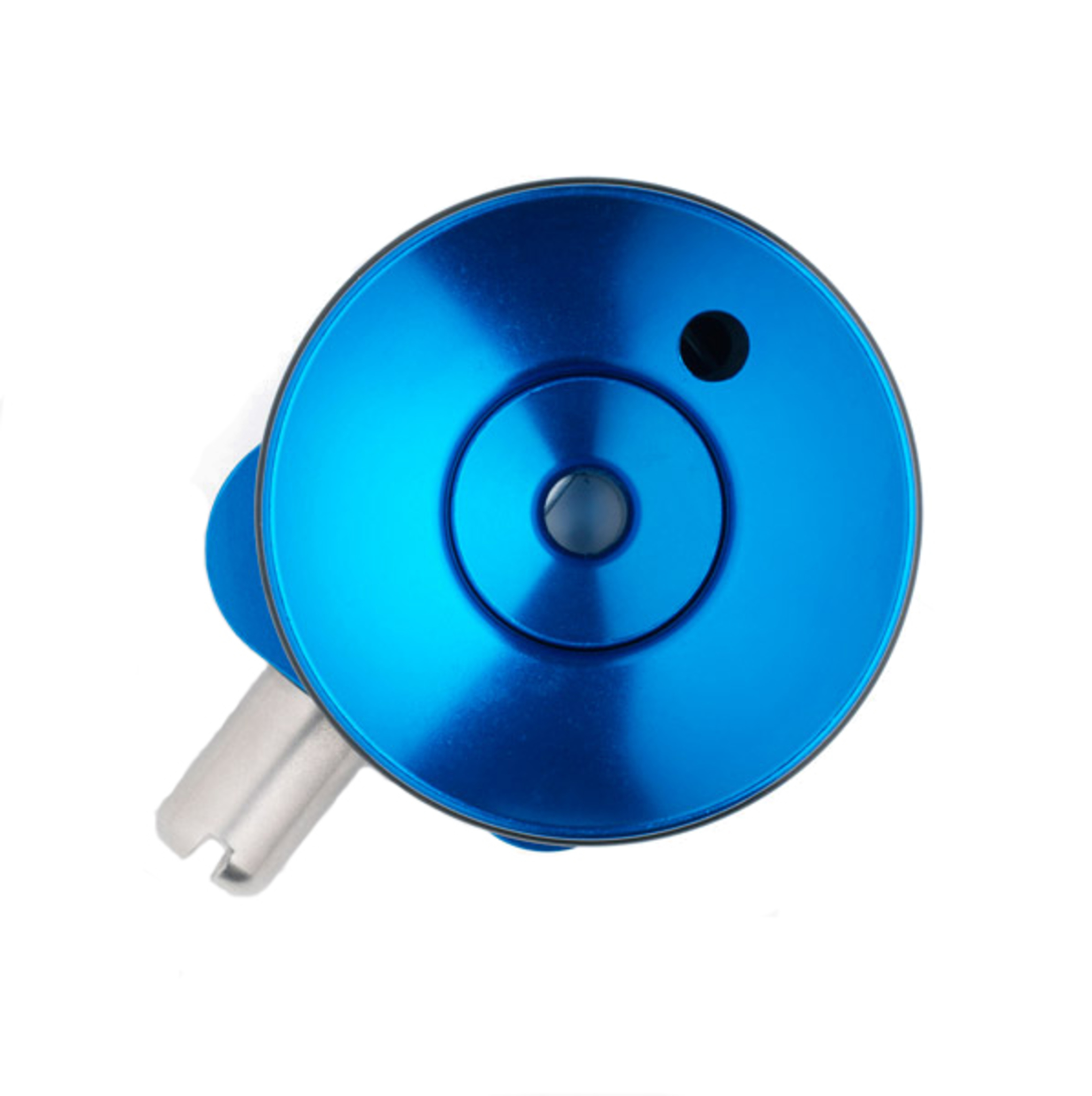

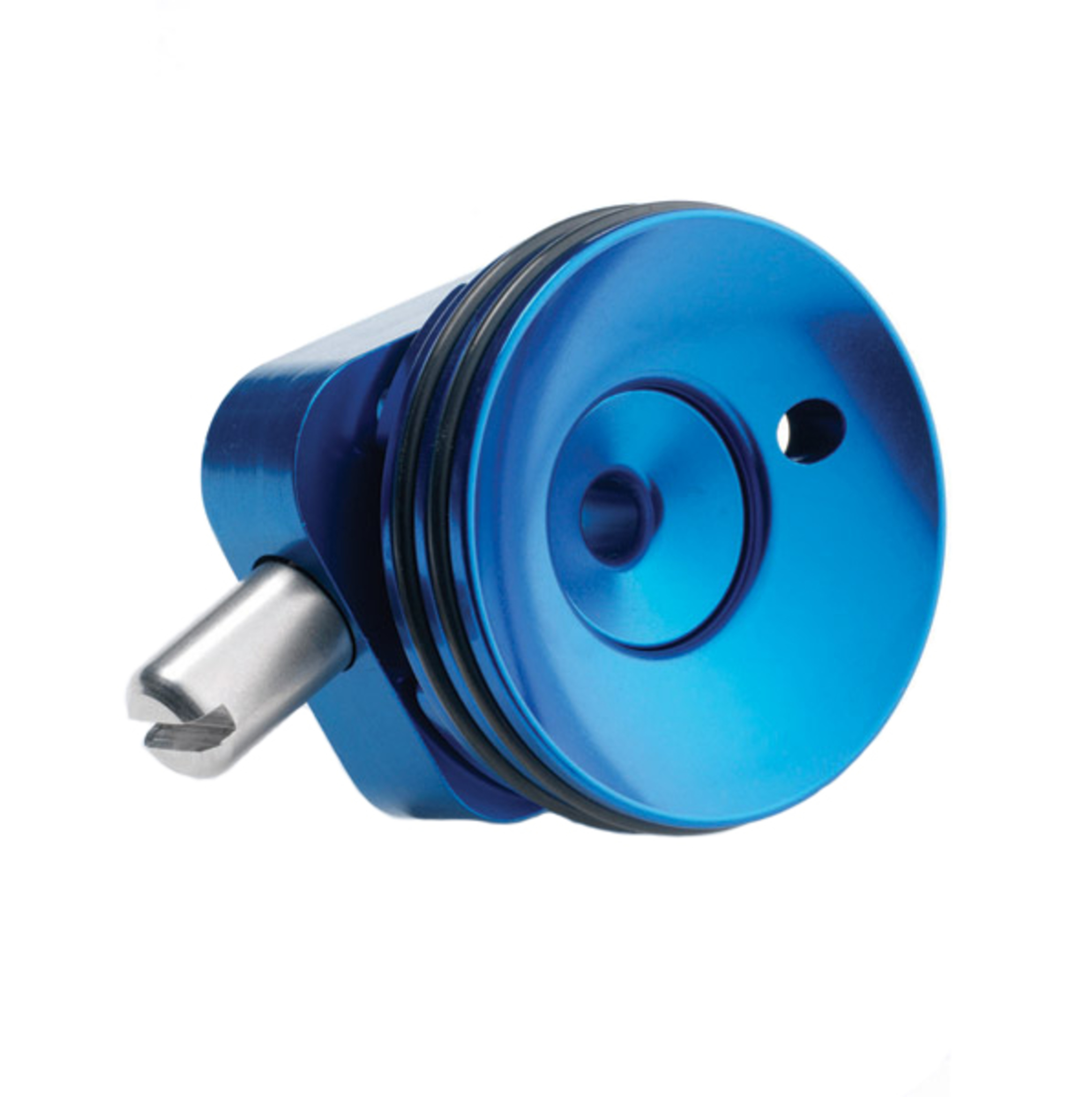

The Alpha Lock has a built-in one-way expulsion air valve which minimizes pistoning. The contoured design allows for easy pin alignment within the locking mechanism. The Alpha Interlock™ Suspension System allows you to interchange suspension methods without remaking a socket.

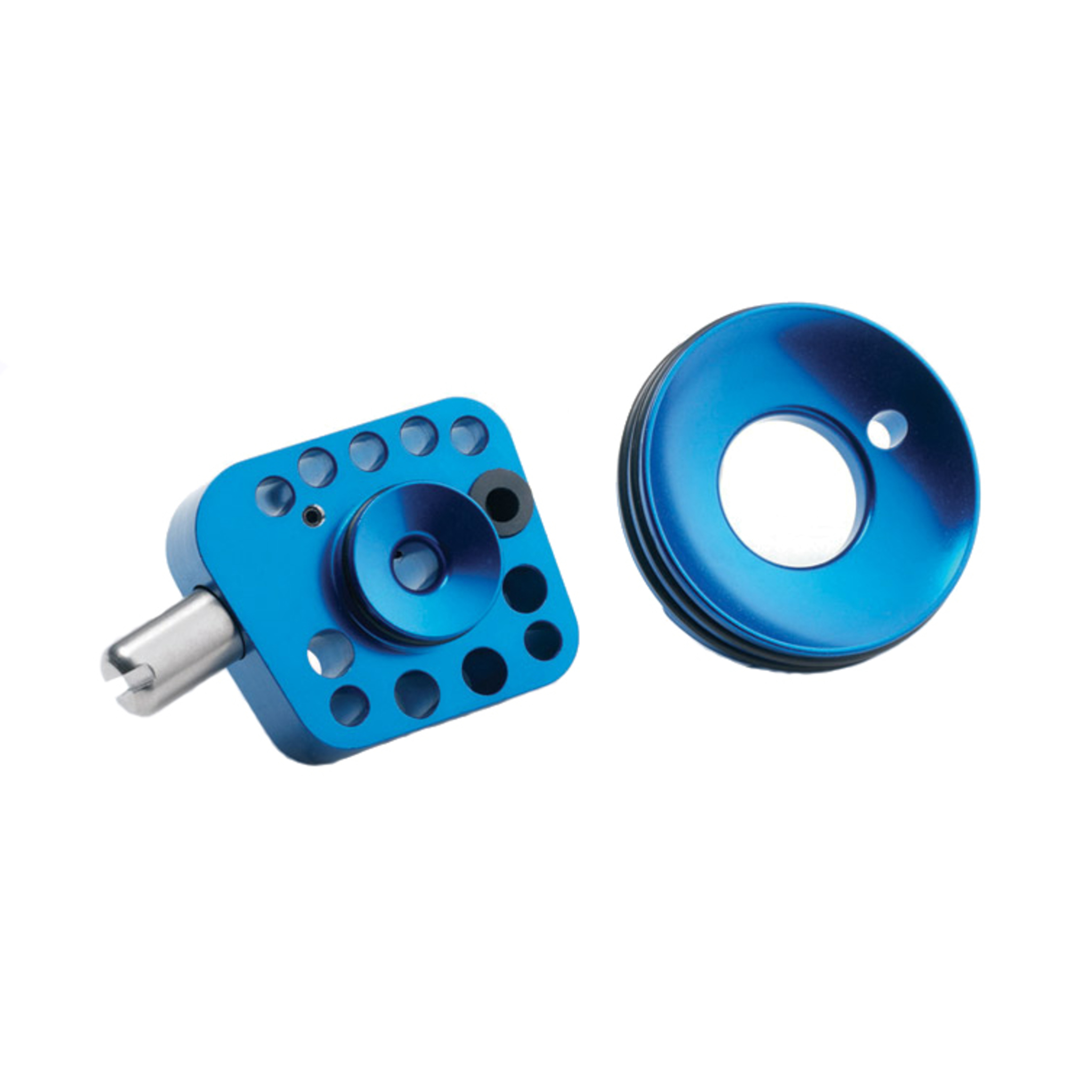

- Part of the Alpha Interlock™ Suspension System
- Simple fabrication process
Specifications
- Lock Type: Clutch with Valve
- Socket Material: Lamination, Thermoplastic
- Housing Material: N/A
- Amputation Level: Transfemoral, Transtibial
- Activity Level: N/A
- Weight Limit: 250lbs (115kg)
- Product Weight (g): 221 (4-Hole), 277 (Male Pyramid)
- Build Height (mm): N/A
- Distal Attachment: 4-Hole, Male Pyramid
- Warranty: 12 months from fit date
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
|---|---|
| User: | Adult |
| Weight Limit: | 100 kg (220 lbs) |
| Fabrication Technique: | Lamination, Thermoplastic |
| Suspension Type: | Locks |
