Alpha Silicone® AK Liner

Product information


The Alpha Silicone® AK Liner with symmetrical profile provides extra protection to the distal femur and allows the liner to be rotated for extended wear. The liner uses a proprietary, platinum-cured, medical grade silicone designed for both comfort and performance for transfemoral amputees. Alpha Silicone AK locking liner controls pistoning without a distal matrix, while the accordion umbrella blends with patient’s anatomy. The cushion liner is ideal for use with elevated vacuum suspension.

  • Non-Greasy & non-tacky surface
  • Retrofits with Alpha Hybrid AK Liner & Alpha Classic AK Liner with symmetrical profile

Specifications

  • Amputation Level: Transfemoral
  • Activity Level: K1, K2, K3, K4
  • Type: Cushion, Locking
  • Material: Silicone
  • Cover: Fabric Cover
  • Profile: Symmetrical
  • Style: Standard
  • Color: Taupe

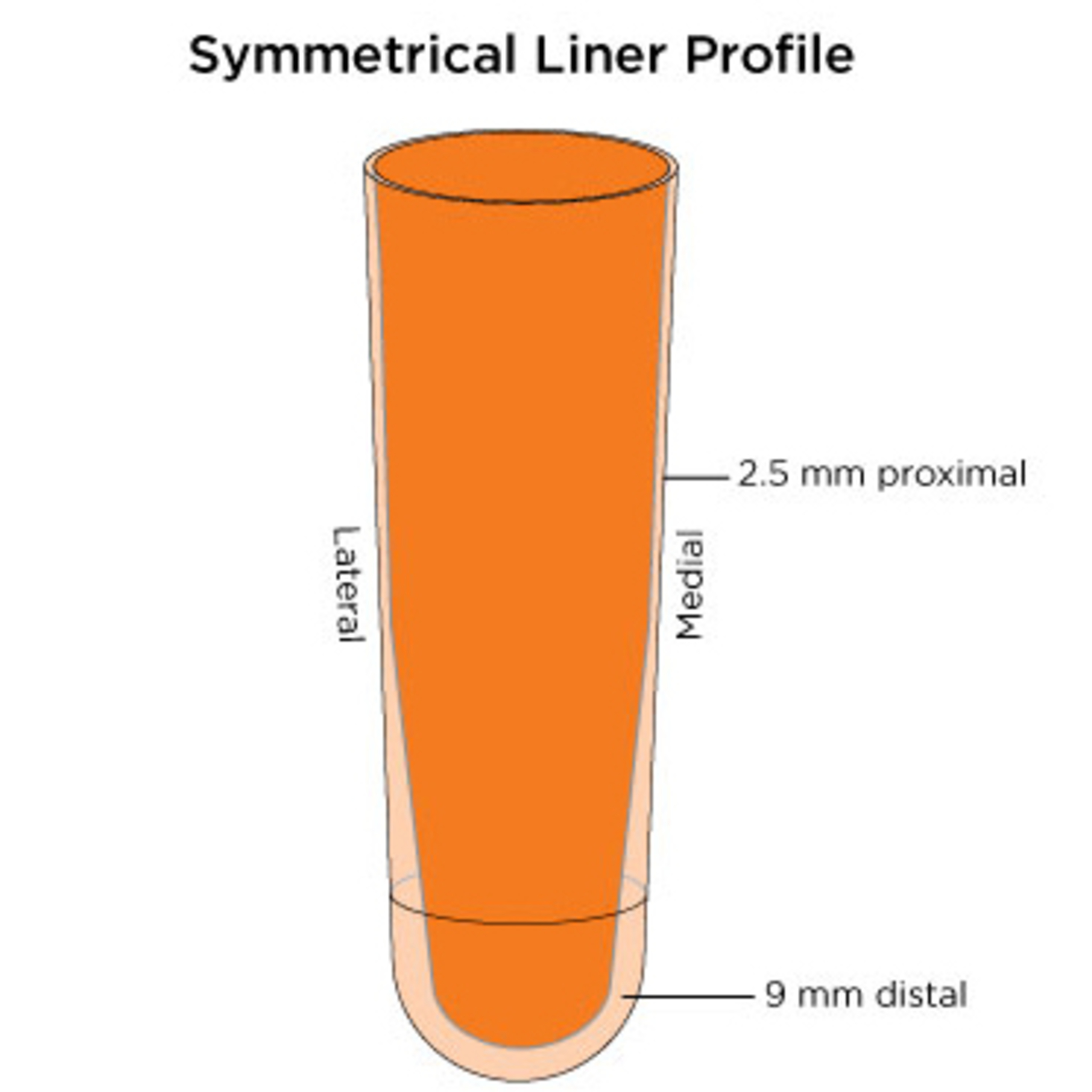

  • Thickness (mm): 9:2.5 (Tapered)
  • Sizes (cm): M+-XL
  • Trial Period: 30 days from fit date
  • Warranty: 12 months from fit date
Activity Level: K1 (Low), K2 (Moderate), K3 (High), K4 (Very High)
Amputation Level: Transfemoral (TF/AK)
Material: Silicone
User: Adult
Liner Profile: Symmetrical
Liner Style: Standard
Liner Thickness: 9 mm (3/8 in)
Liner Type: Cushion, Locking
