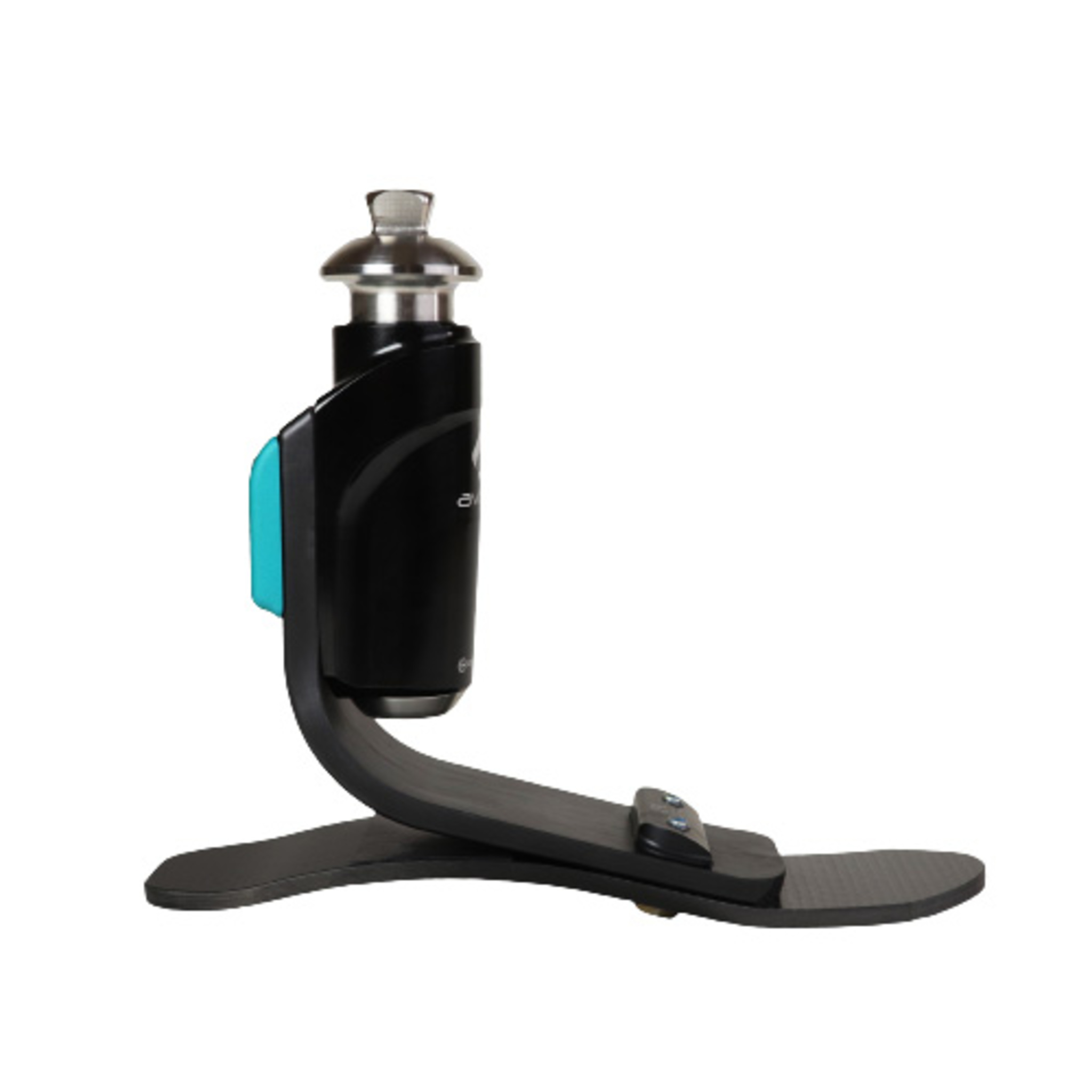

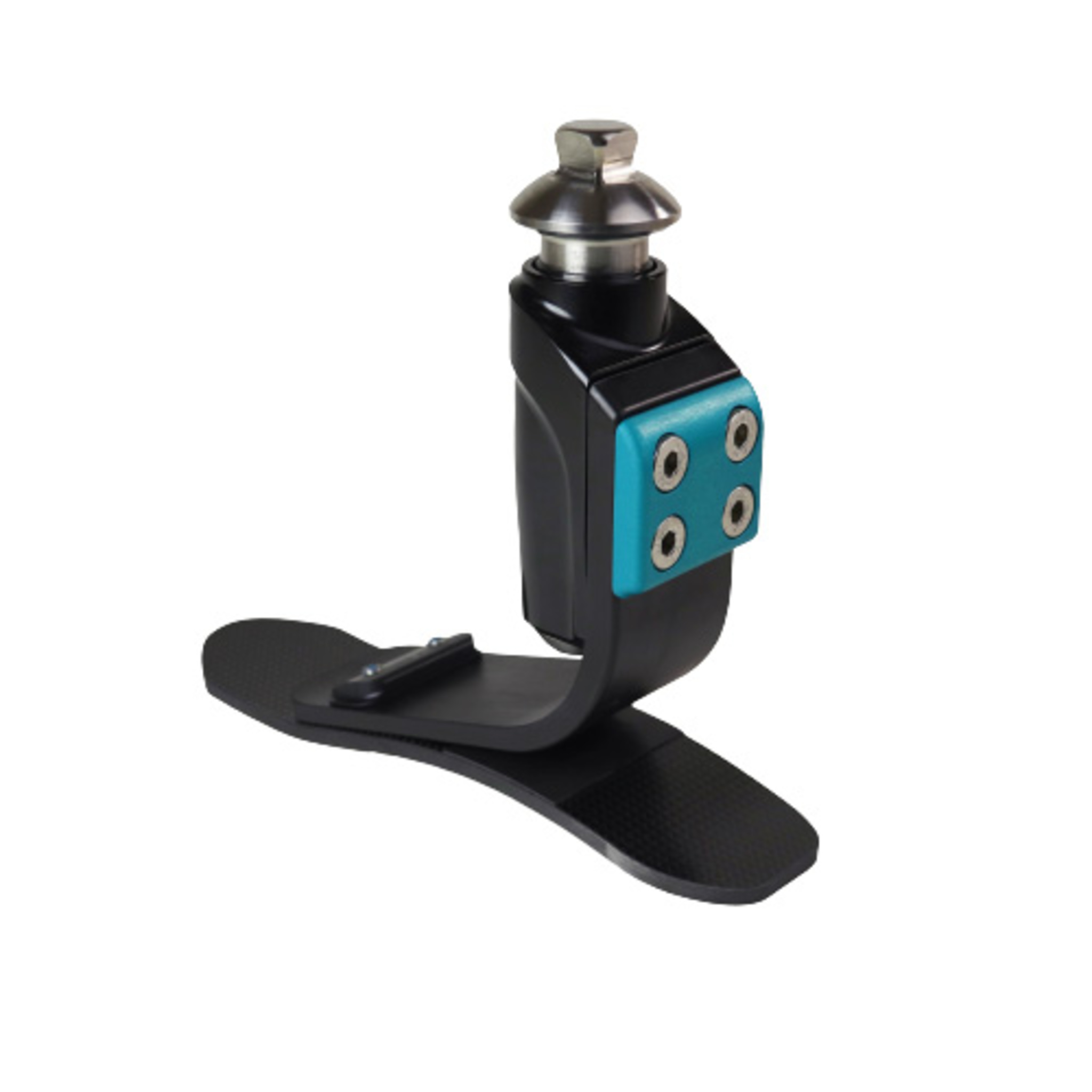

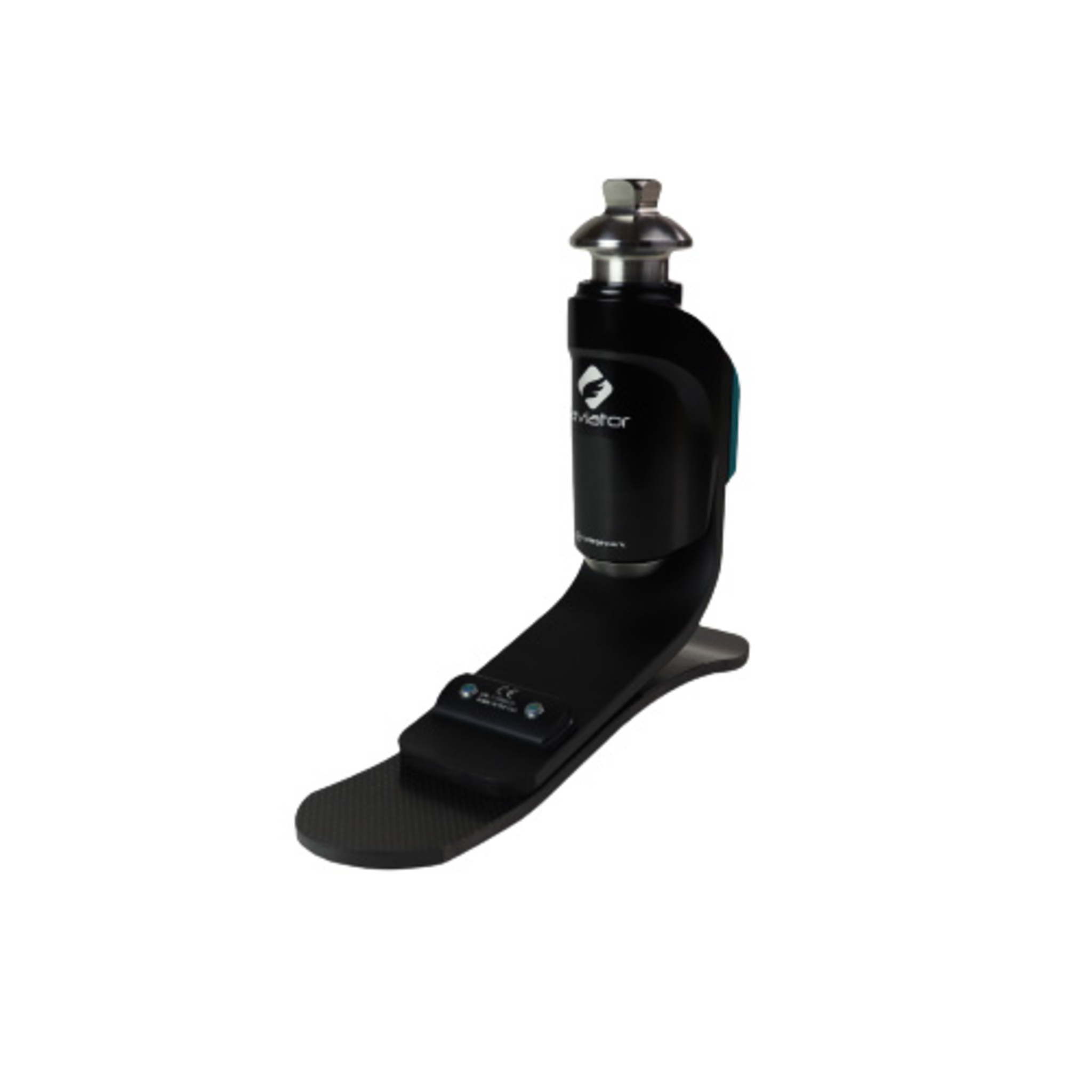

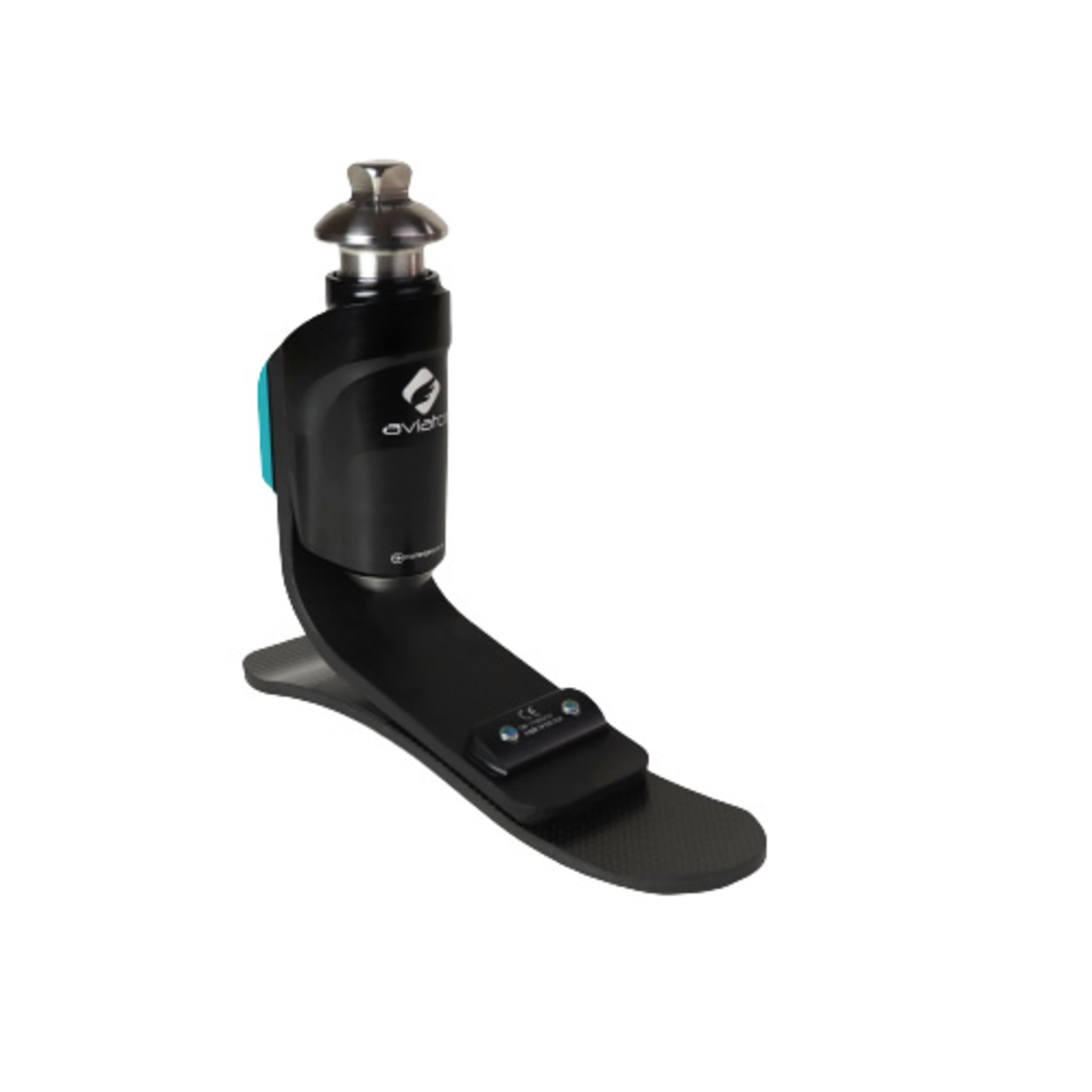

Aviator

Product information

The Aviator features a lightweight design that provides high energy return, comfort, and vertical shock absorption. The Aviator uses material fusion to maximize function and response.

  • Intelliweave composite material
  • Up to 10mm of vertical shock absorption

Specifications

  • Foot Type: Shank Foot System
  • Material Composition: Carbon Fiber + Intelleweave blend
  • Amputation Level: Transtibial, Transfemoral
  • Impact Level: K3/K4
  • Foot Shell: Not Included
  • Foot Shell Color: Caucasian, Tan, Brown, Jet Black
  • Sandal Toe: Yes
  • Waterproof: Yes (Freshwater)
  • Split Keel: No
  • Adjustable Heel: No
  • Weight Rating: 21-25cm: 275lbs (125kg), 26-30cm: 330lbs (150kg)
  • Stiffness Categories: 1-5
  • Sizes (cm): 21-30
  • Product Weight (g): 979
  • Build Height (in): 6.45 (164mm)
  • Heel Height (in): .39 (10mm)
  • Connector: Integrated Male Pyramid
  • Trial Period: 60 days from purchase date
  • Warranty: 36 months from purchase date

Activity Level: K3 (High), K4 (Very High)
Amputation Level: Transfemoral (TF/AK), Transtibial (TT/BK)
Key Features: High Weight Limit, Waterproof
Material: Carbon Composite
User: Adult
Weight Limit: 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs)
Build Height: 127-177 mm (5-6.9 in)
Foot Shell Included: No
Foot Type: Blade/Shank Foot
