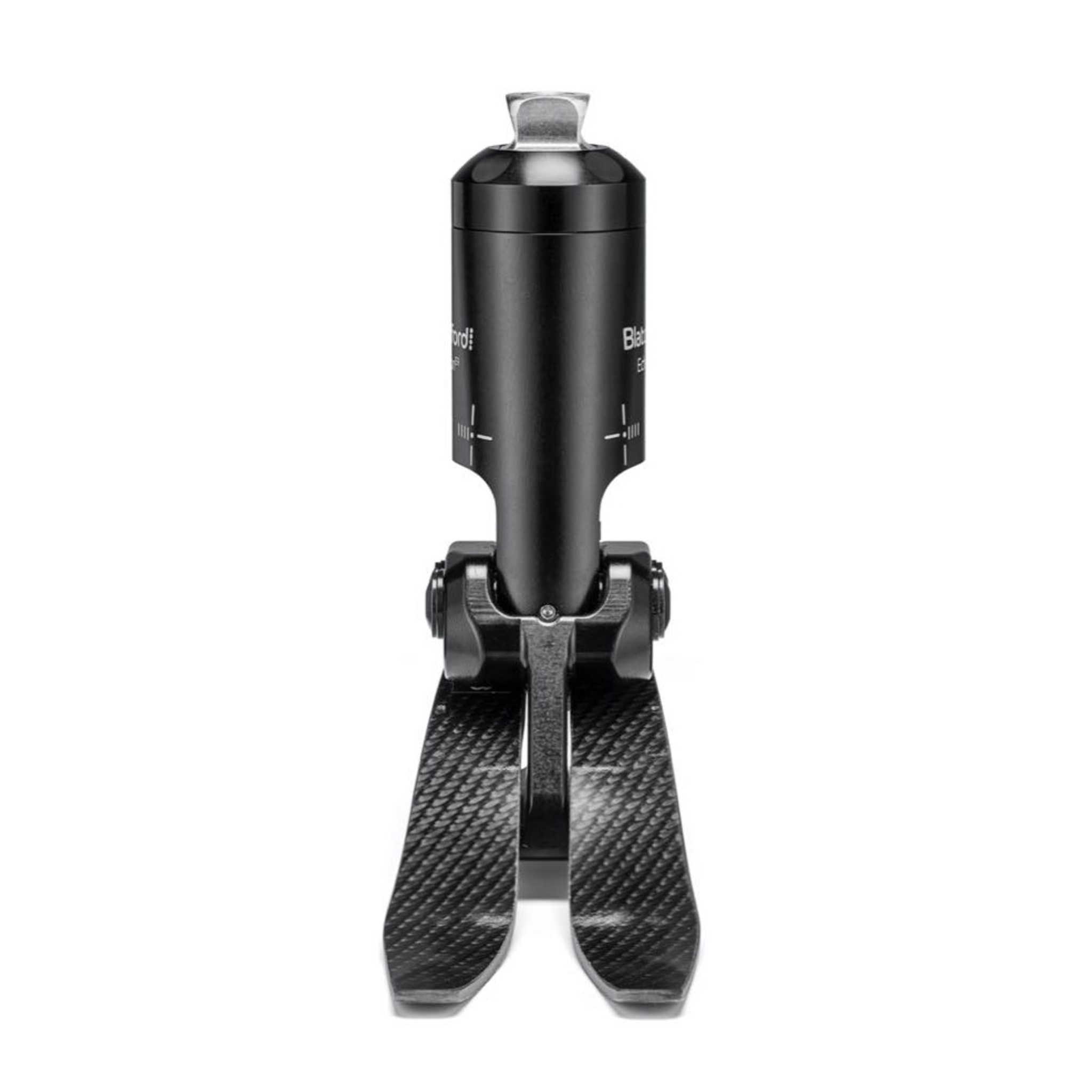

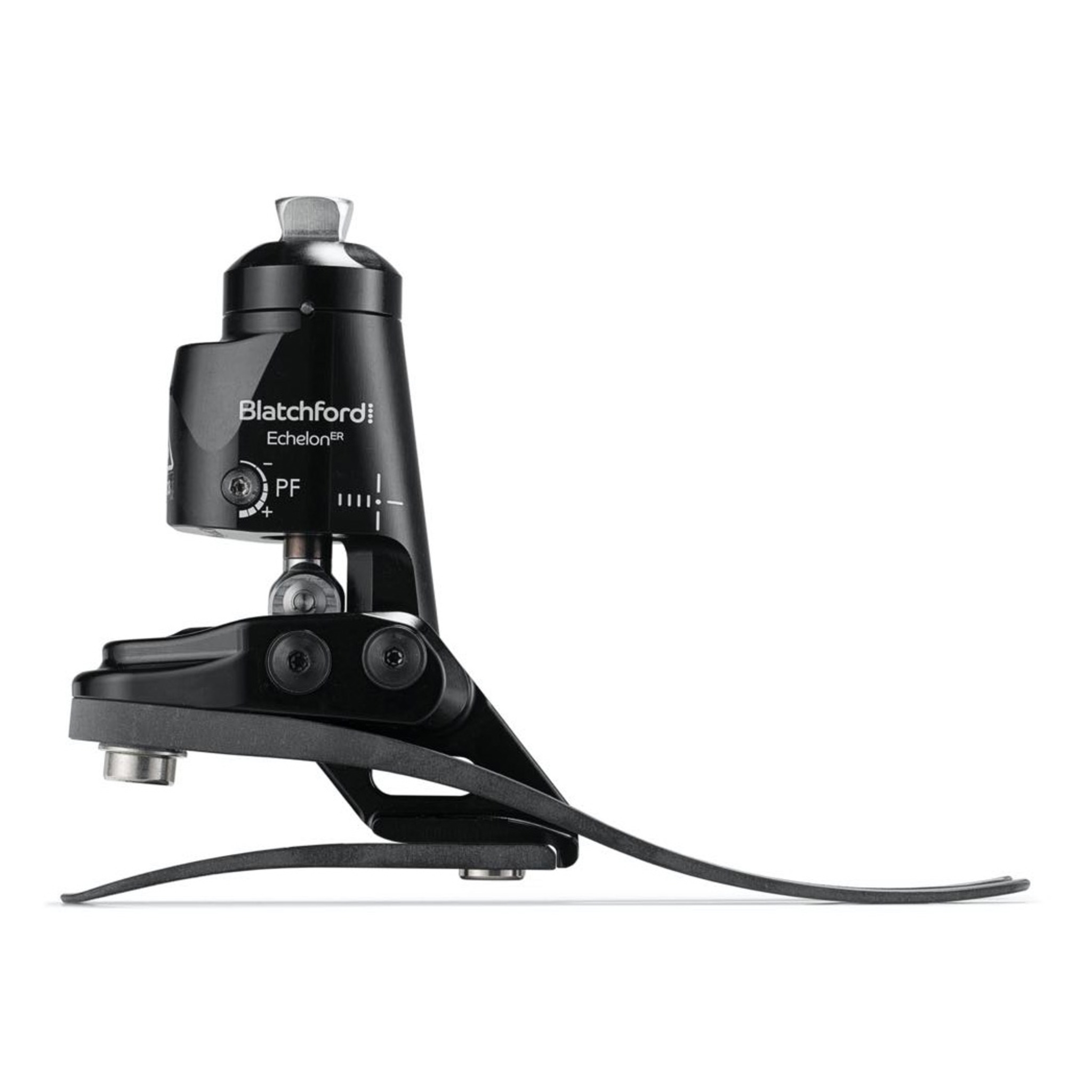

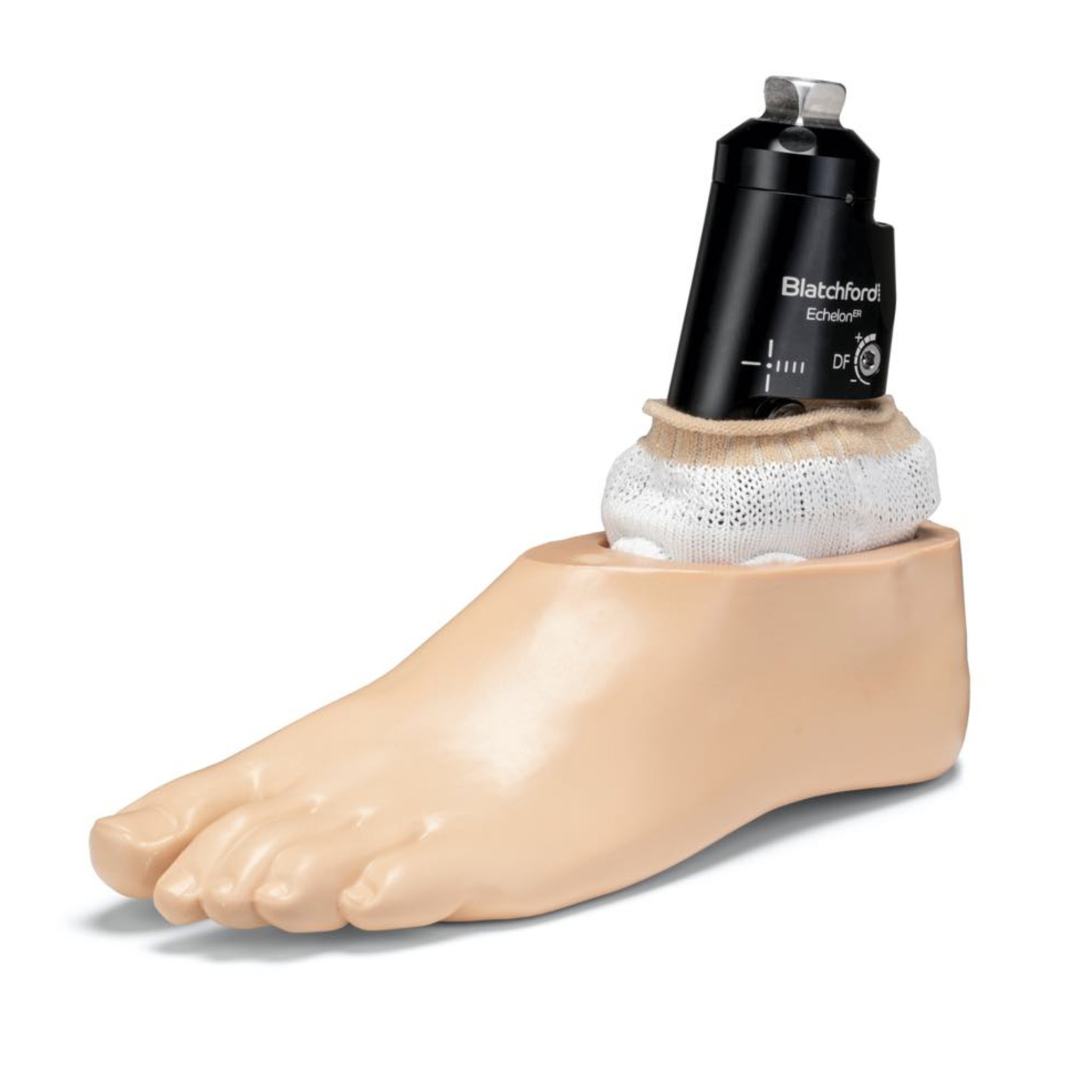

The EchelonER is a hydraulic ankle designed as an extended range of ankle movement. This foot is waterproof, and able to handle steep slopes and uneven terrain. It also self-aligns with the ground when users are seated which enables a relaxed foot position, a natural look, and reduces pressure on the residual limb.

Specifications

• Foot Type: Flex-Foot System
• Material Composition: Carbon Composite
• Amputation Level: Transtibial, Transfemoral
• Impact Level: K3
• Foot Shell: Included
• Foot Shell Color: Light, Dark
• Sandal Toe: Yes
• Waterproof: Yes
• Split Keel: Yes
• Adjustable Heel: No
• Weight Rating: 275lbs (125kg)
• Stiffness Categories: 1-8
• Sizes (cm): 22-30
• Product Weight (g): 770
• Build Height: 5.6in (142mm), 5.8in (147mm), 6.0in (152mm)
• Heel Height: 3/8in (10mm)
• Connector: Male Pyramid
• Trial Period:30 days from purchase date (like new condition)
• Warranty: 36 months
