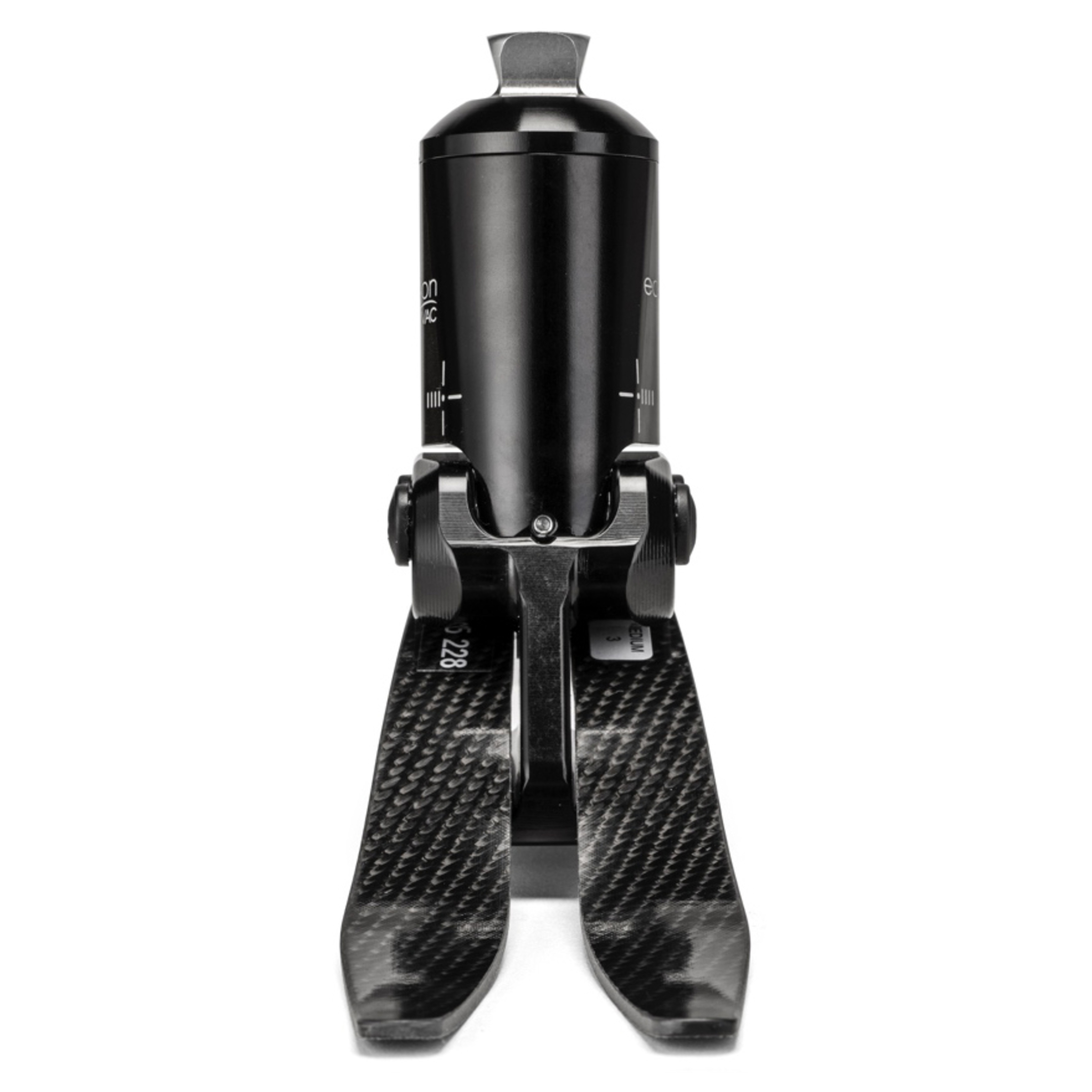

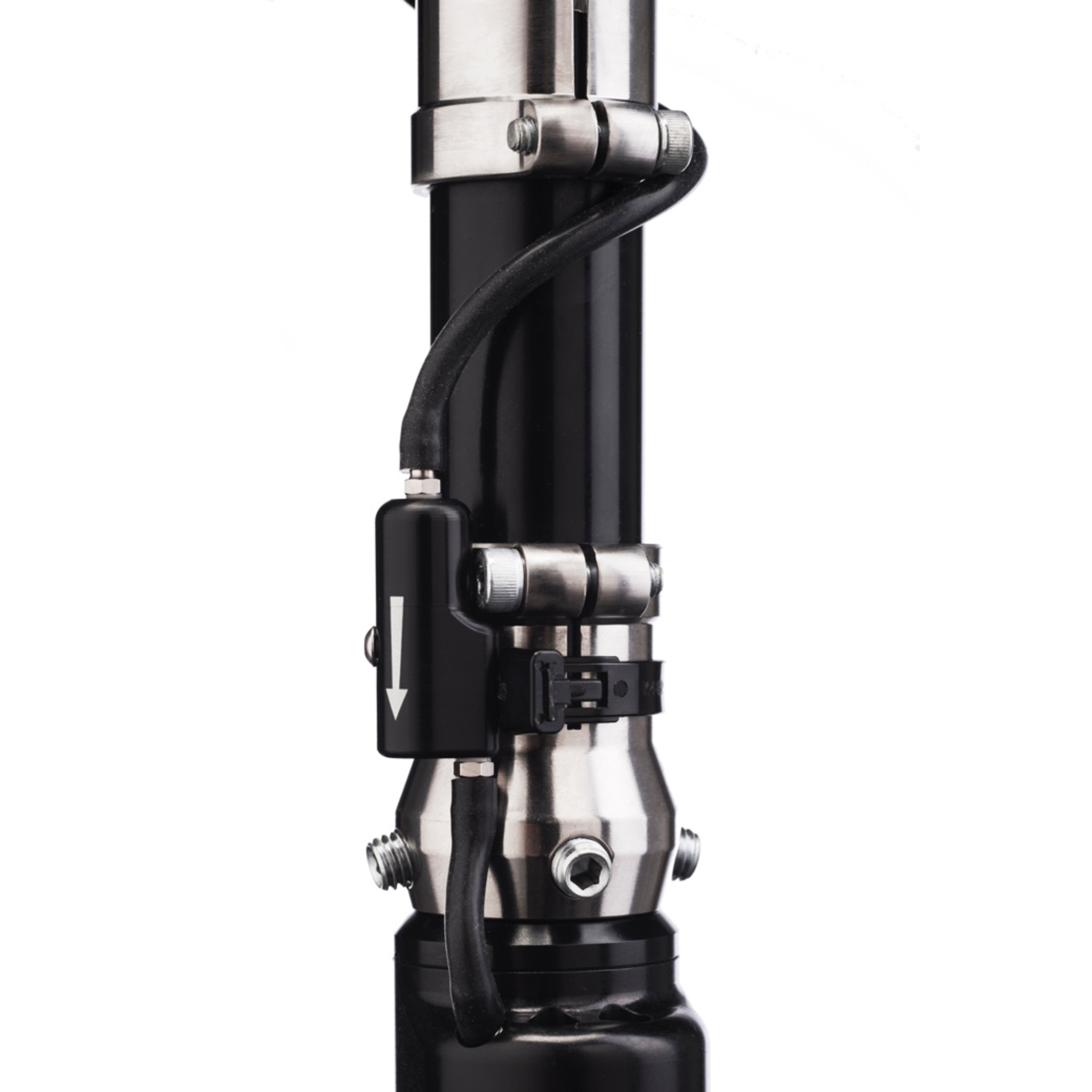

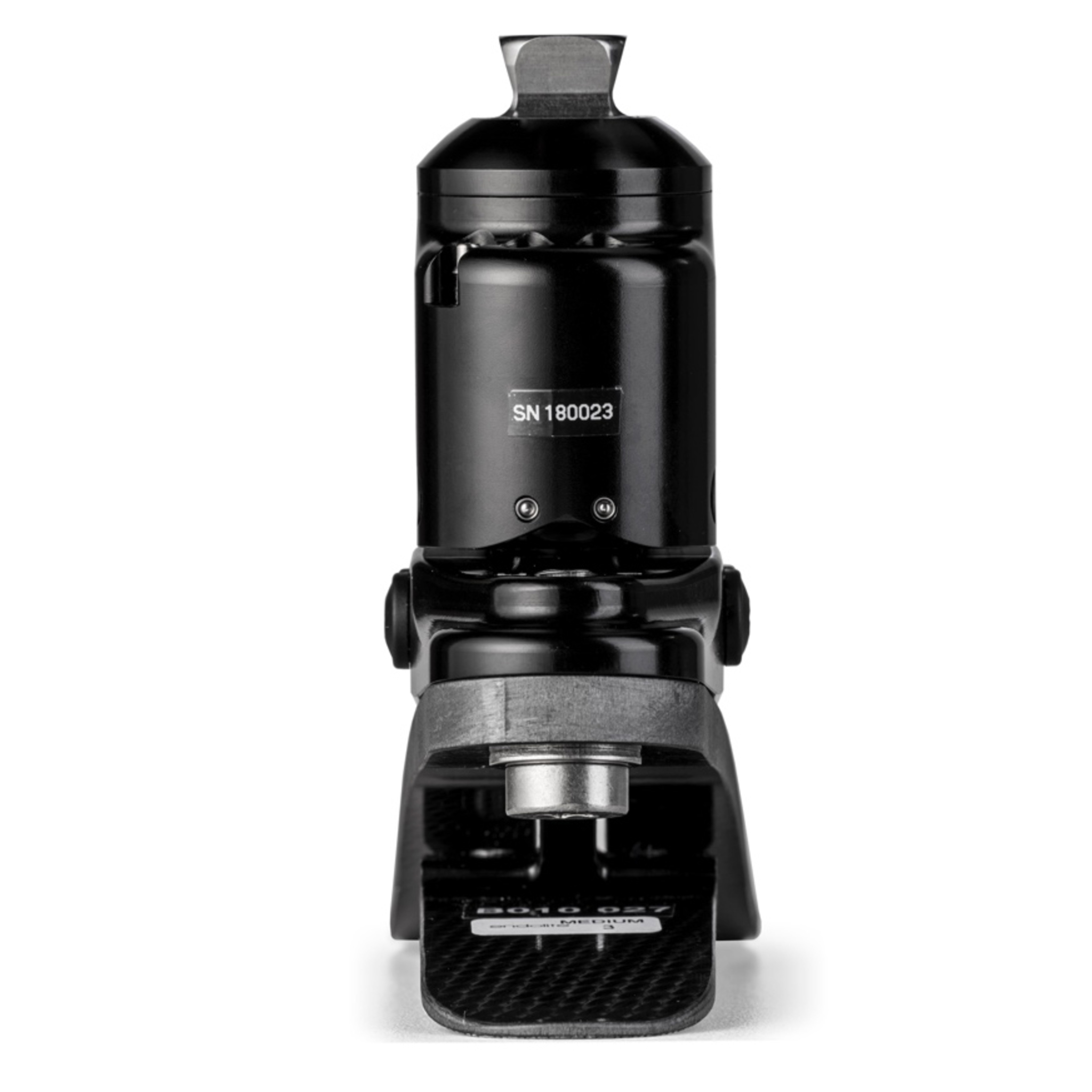

The EchelonVAC was developed to provide the benefits of Echelon alongside an elevated vacuum system for optimal socket connection. EchelonVAC’s design promotes healthier residual tissue allowing wounds to heal, without stopping prosthetic usage.

• Biomimetic hydraulic technology with integrated volume control
• Walking motion generates natural vacuum
• No power required, quiet gentle operation
• Lightweight, compact design
• Low build height
• E-carbon springs for efficient energy return
• Split toe design for ground compliance on uneven terrain
• Glide sock included

Specifications

• Foot Type: Flex Walk System
• Material Composition: Carbon Composite
• Amputation Level: Transtibial, Transfemoral
• Impact Level: K3
• Foot Shell: Included
• Foot Shell Color: Light, Dark
• Sandal Toe: Yes
• Waterproof: No
• Split Keel: Yes
• Adjustable Heel: No
• Weight Rating: 275lbs (125kg)
• Stiffness Categories: 1-8
• Sizes (cm): 22-30
• Product Weight (g): 930
• Build Height: 4.8in (121mm), 5in (126mm), 5.16in (131mm)
• Heel Height: 3/8in (10mm)
• Connector: Male Pyramid
• Trial Period: 30 days from purchase date (like new condition)
• Warranty: Three years from purchase date
