The EchelonVT combines the hydraulic technology of Echelon with an additional rotation and vertical shock absorption element, to reduce the shear forces at the socket interface. This reduces the rate of loading at the socket interface and allows the socket to rotate with the residual limb, rather than against it. This means the user can move and adapt more freely.

• Hydraulic control of dorsiflexion and plantarflexion
• Dorsiflexed toe for swing phase
• Rotation and vertical shock absorption
• Tripod action for conformance and vertical compliance
• Smooth hydraulic and spring action
• Slimline foot design
• Responsive e-carbon foot springs
• Glide sock included

Specifications

• Foot Type: Flex-Foot System
• Material Composition: Carbon Composite
• Amputation Level: Transtibial, Transfemoral
• Impact Level: K3

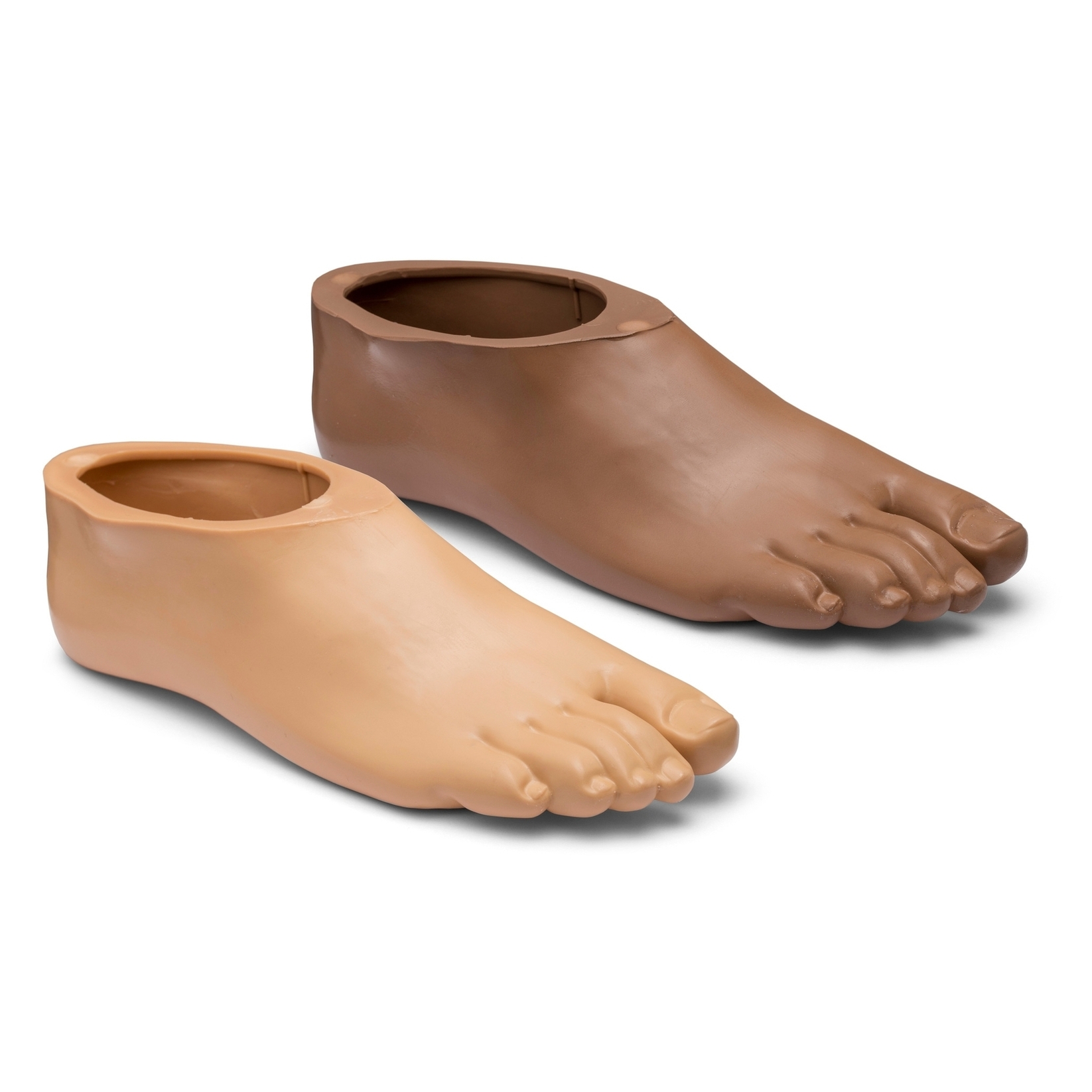

• Foot Shell: Included
• Foot Shell Color: Light, Dark
• Sandal Toe: Yes
• Waterproof: No
• Split Keel: Yes
• Adjustable Heel: No
• Weight Rating: 275lbs (125kg)
• Stiffness Categories: 1-8
• Sizes (cm): 22-30
• Product Weight (g): 700
• Build Height: 6.6in (168mm), 6.8in (173mm), 7in (178mm)
• Heel Height: 3/8in (10mm)
• Connector: Male Pyramid
• Trial Period: 30 days from purchase date (like new condition)
• Warranty: Three years from purchase date
