Fillauer PDQ PO-2 Infrared Oven
Quick Links
Product information
The PO ovens were developed for the practice that does primarily bubble-forming. The new PO-2 now has a Rollabout Tray (designed as part of the door) to hold the frames, in addition to a flat plastic tray.
- Stainless steel construction
- Four 1000 watt infrared emitters on top and four 1000 watt emitters on bottom
- Interior light
- Two double-pane viewing windows
- Programmable digital temperature controller
- Fitted Teflon sheet for tray
- Rollabout tray/rack
- Interior dimensions: 50" wide x 36" deep x 20" high
- Exterior dimensions: 60" wide x 40" deep x 53" high
- 12 Months from the date of shipment

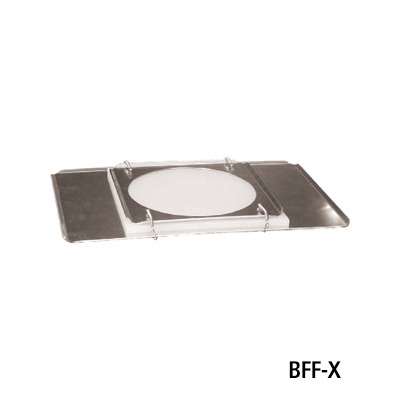

PDQ Bubble Forming Frame. (BFF-X)
- Round hole reduces plastic stretch
- Spring clips allow different plastic thickness
- Available in five sizes
- BT-3 and BT-4 ovens require special frames
PDQ Plastic Rack. (RACKLARGE)
- Used for storing sheet plastic
- 30 in. H x 52 in. W x 44 in. D

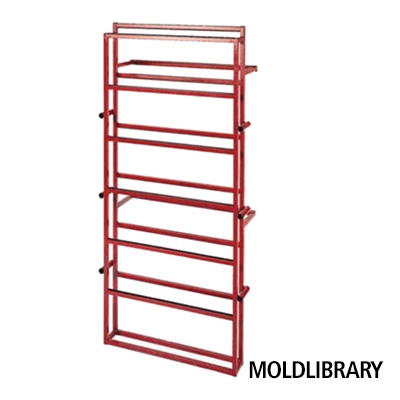

PDQ Mold Library. (MOLDLIBRARY)
- Used for storing casts
- 84 in. H x 36 in. W x 16 in. D

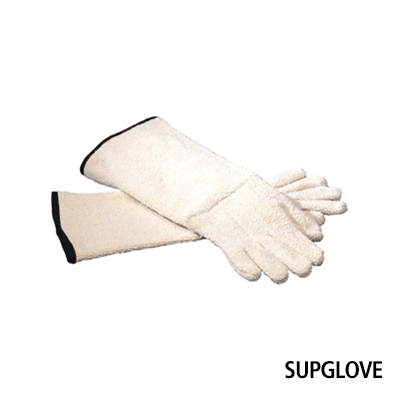

PDQ Oven Gloves. (SUPGLOVE)
- Terry cloth thermoforming gloves
- Extended length to protect forearms
- 84 in. H x 36 in. W x 16 in. D

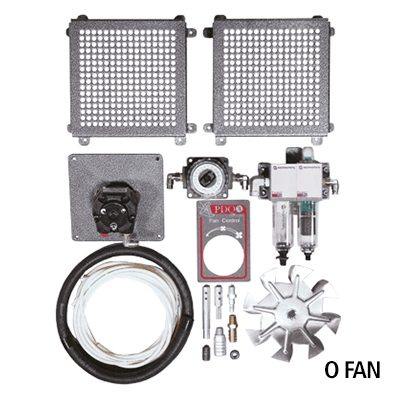

PDQ Oven Fan Kit. The fan motor is powered by compressed air and operates on shop air. Retrofit kit includes complete instructions and items required for installation, which can be accomplished in less than an hour. (O FAN KIT; O FAN NEW)
- Available as a retrofit kit for an existing PDQ Infrared Oven
- Available as factory-installed accessory on a new PDQ Infrared Oven
- Provides controlled heating of pre-preg and TFC materials
- Reduces production time by as much as 20% for O&P plastics
- Fits all models except BT-1 and BT-4

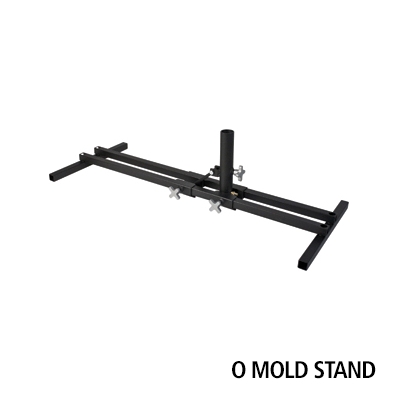

Mold Stand - Adjustable. (O MOLD STAND)
- Holds mold firmly at any angle between 20?–?160°
- Slides back and forth

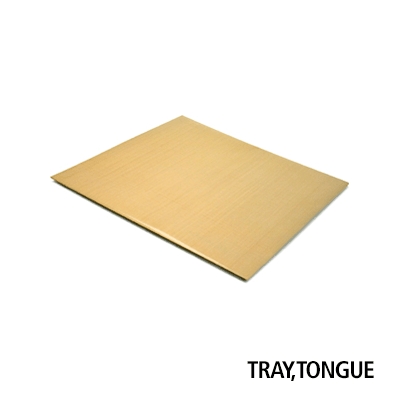

Tongue Tray. (TRAY,TONGUE)
- Tongue Tray, 1/2 in. H x 24 in. W x 24 in. D
