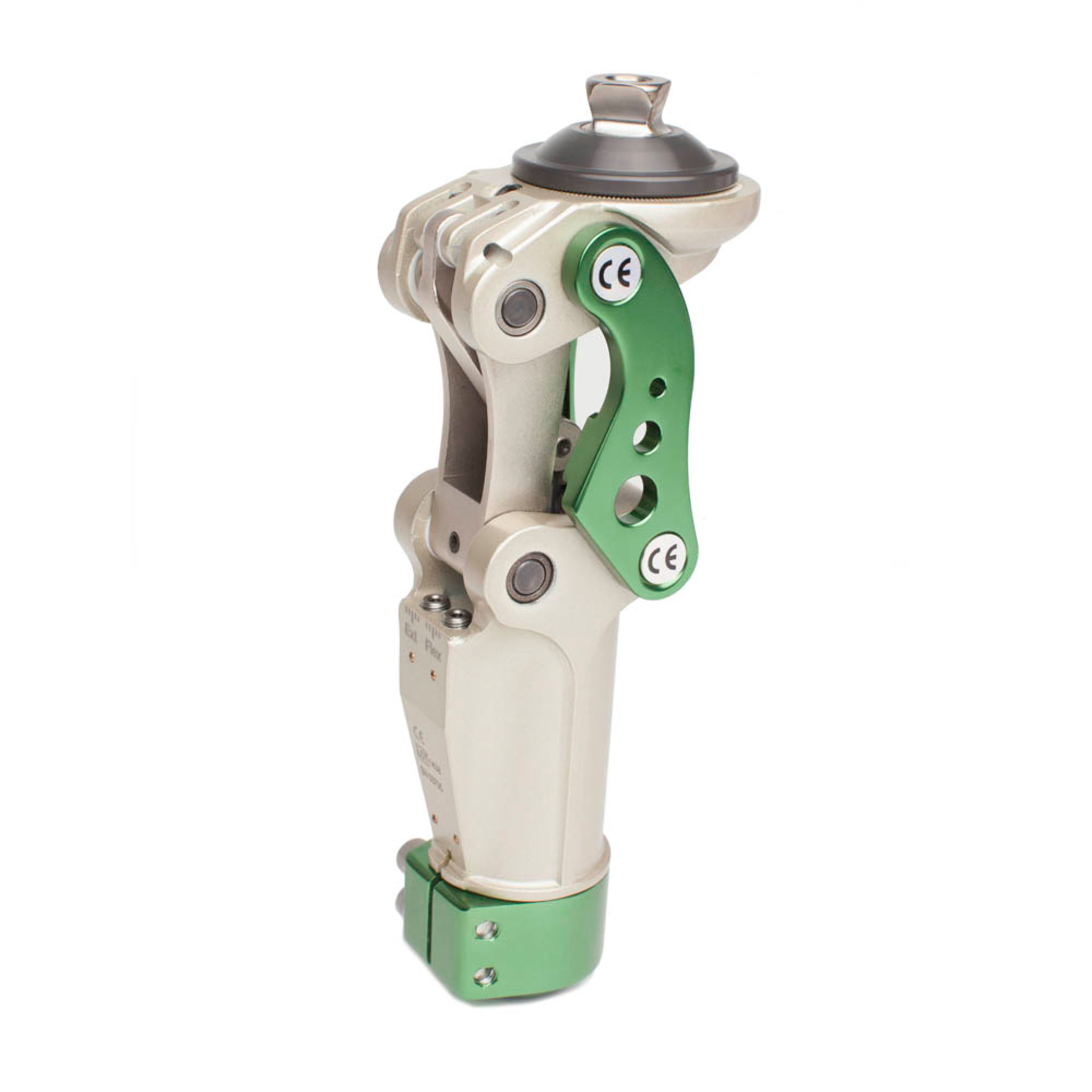

L1322 Polycentric Pneumatic 4-Bar Knee with Manual Lock

Product information


  • Polycentric knee joint with pneumatic swing control
  • Independent flexion and extension resistance adjustment
  • Built in bearings which allow for ultra-smooth walking movement
  • Frame construction made of superlight aluminum alloy
  • Adjustable extension assists
  • Manual glide lock mechanism provides added security when needed
  • Provides secure safety when standing for long periods of time, tight confines or uneven ground

Specifications

  • Activity Level: K3
  • Knee Design Type: 4-Bar Linkage or Multi-Axial, Pneumatic Swing Phase Control, Manual Lock
  • Axis: Single Axis
  • Swing Phase: Pneumatic
  • Stance Phase: Friction
  • Control Frame Material: Aluminum
  • Product Weight (g): 875
  • Maximum User Weight: 275lbs (125kg)
  • Maximum Knee Flexion Angle: 135 Degrees
  • Proximal Connection: Pyramid Adapter
  • Distal Connection: Tube Clamp
  • Trial Period: N/A
  • Warranty: 24 months from purchase date
Activity Level: K3 (High)
Amputation Level: Transfemoral (TF/AK)
Material: Stainless Steel
User: Adult
Weight Limit: 100 kg (220 lbs), 125 kg (275 lbs)
Axis Type: Polycentric
Distal Connection: Tube Clamp
Proximal Connection: Male Pyramid Adapter
Stance Phase: Friction
Swing Phase: Pneumatic
