Product information

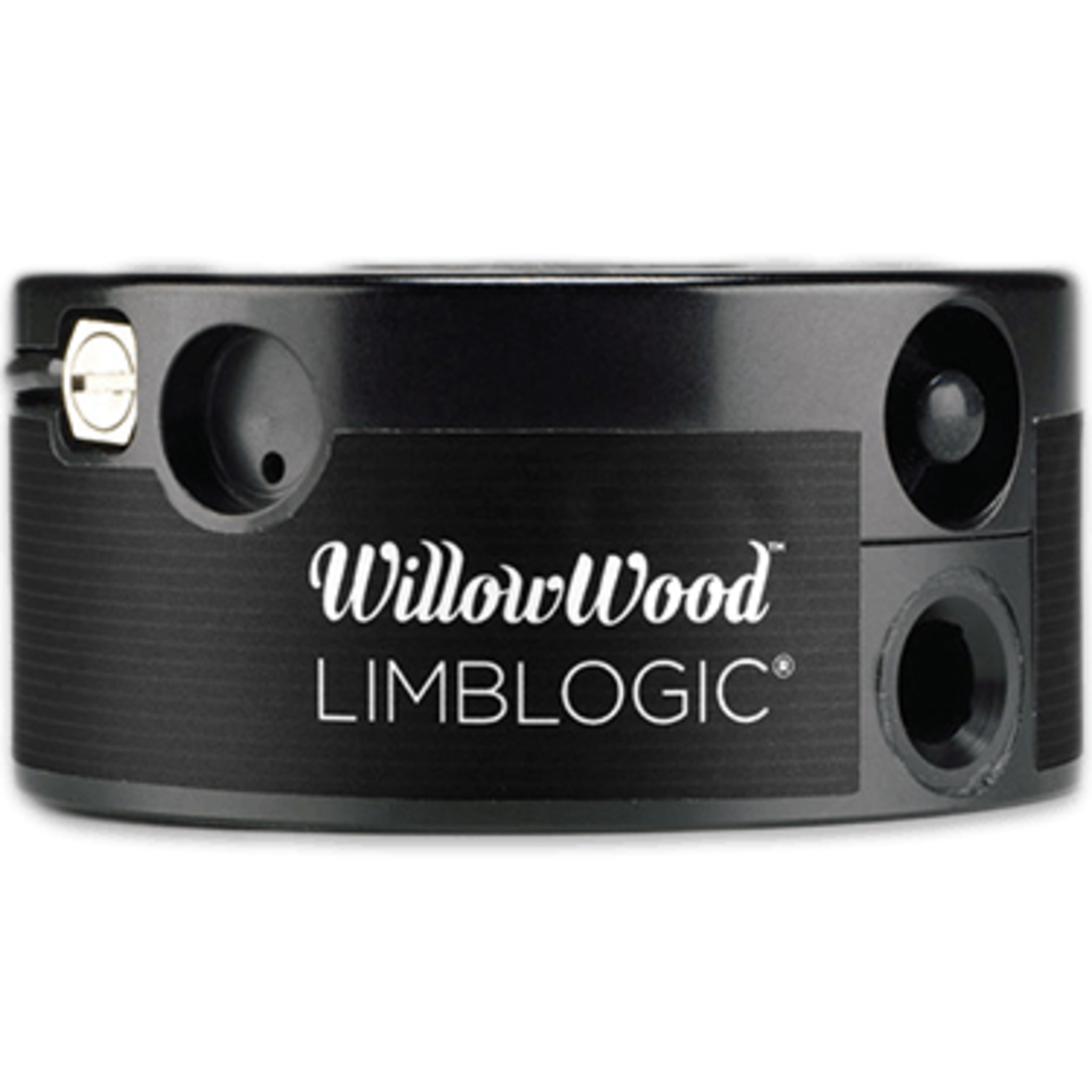

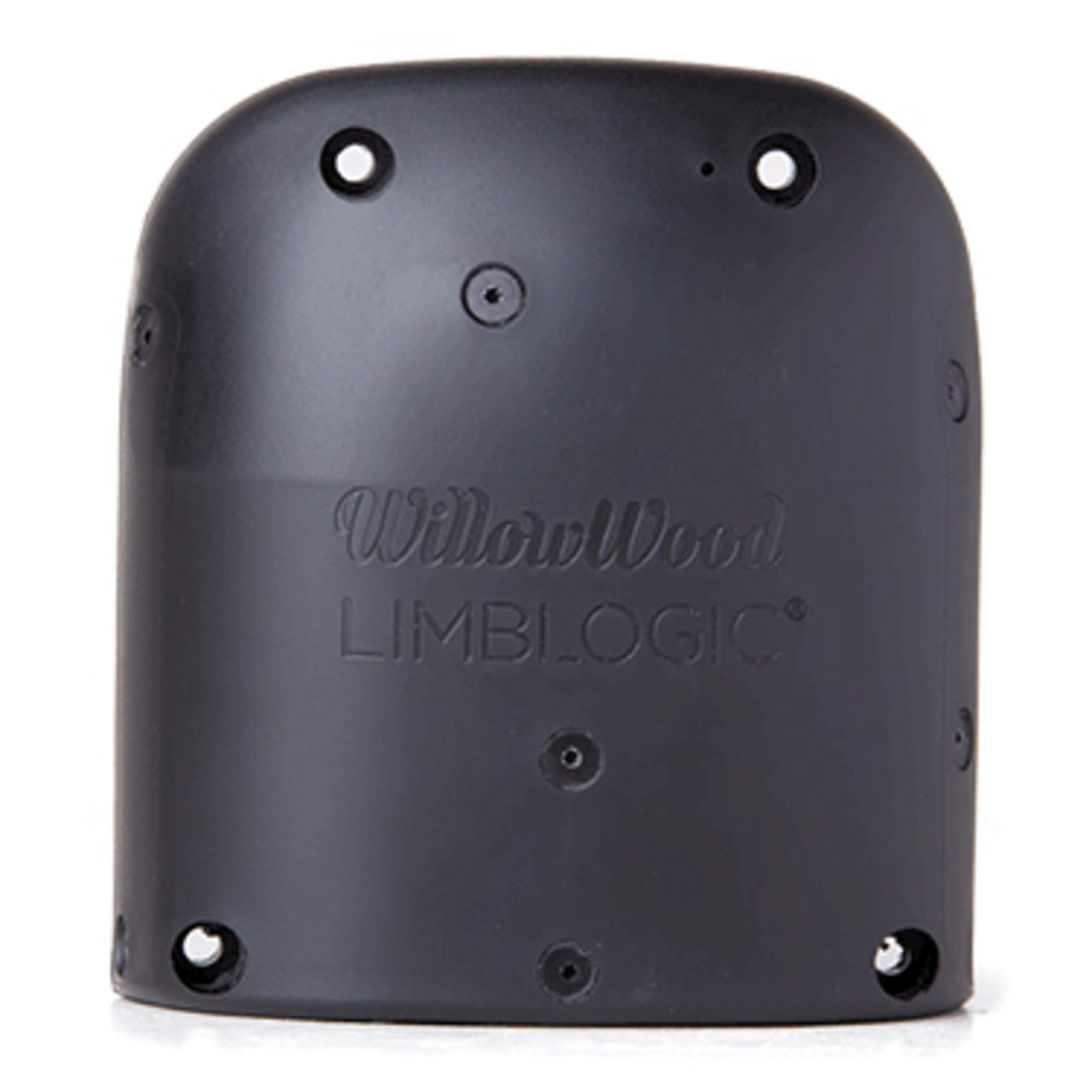

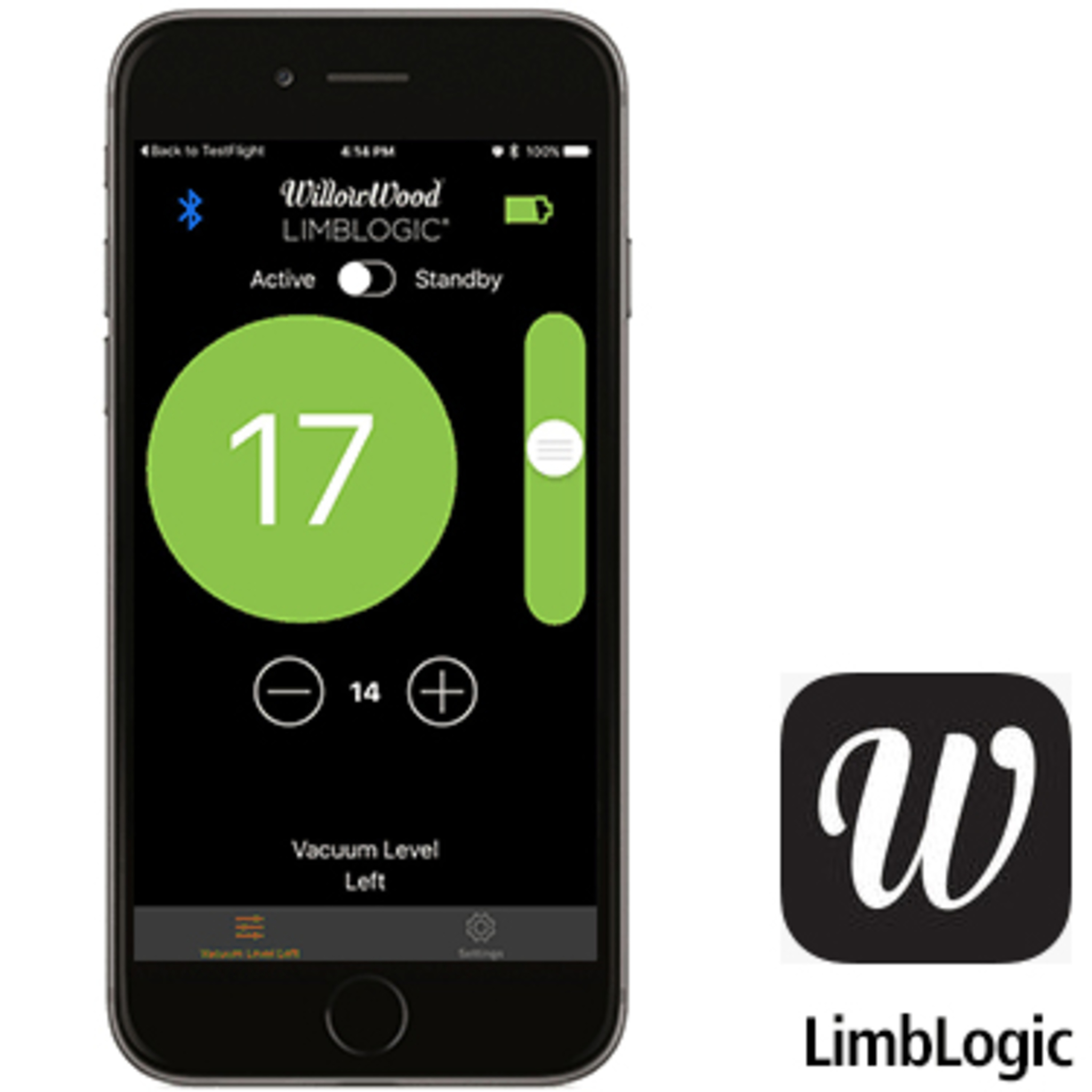

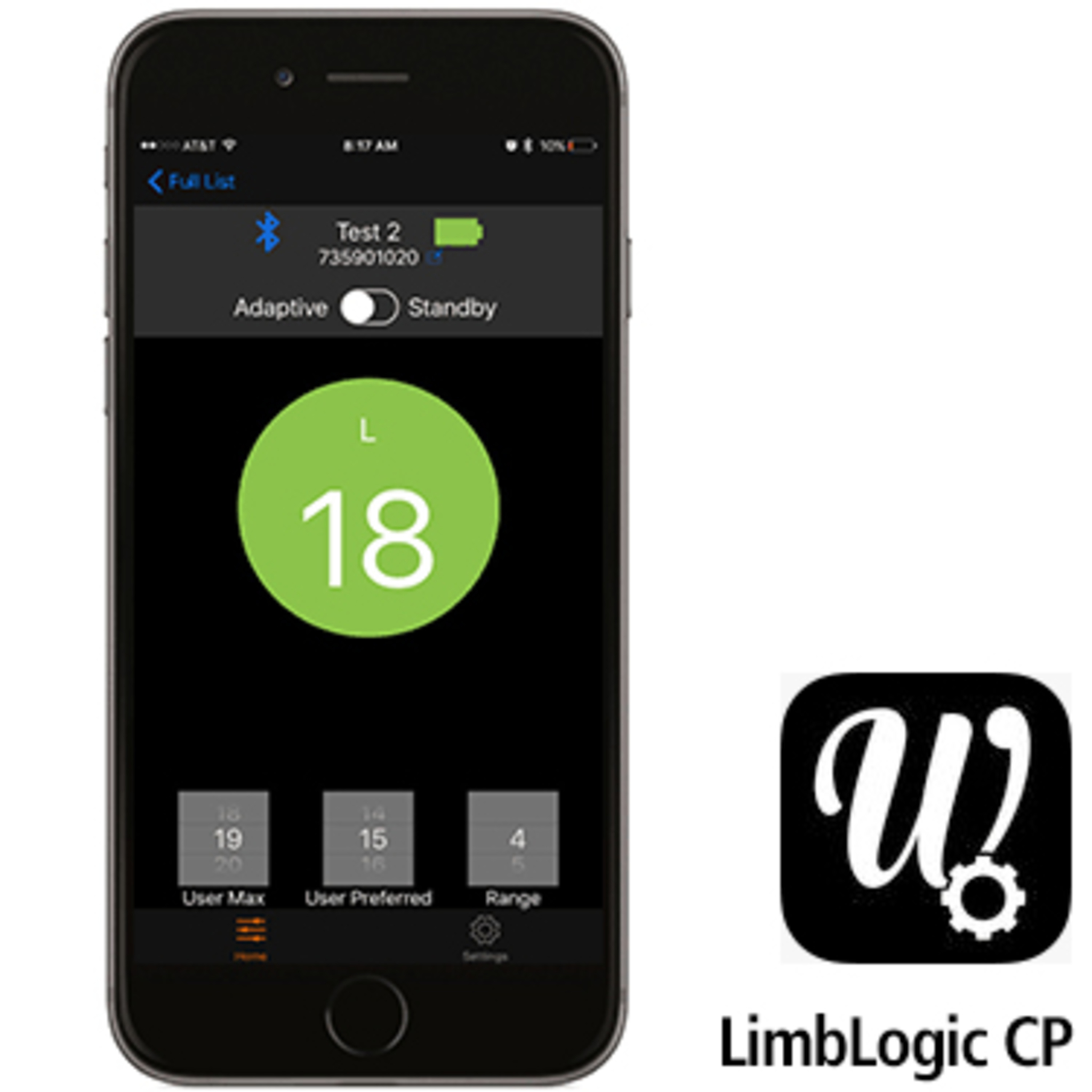

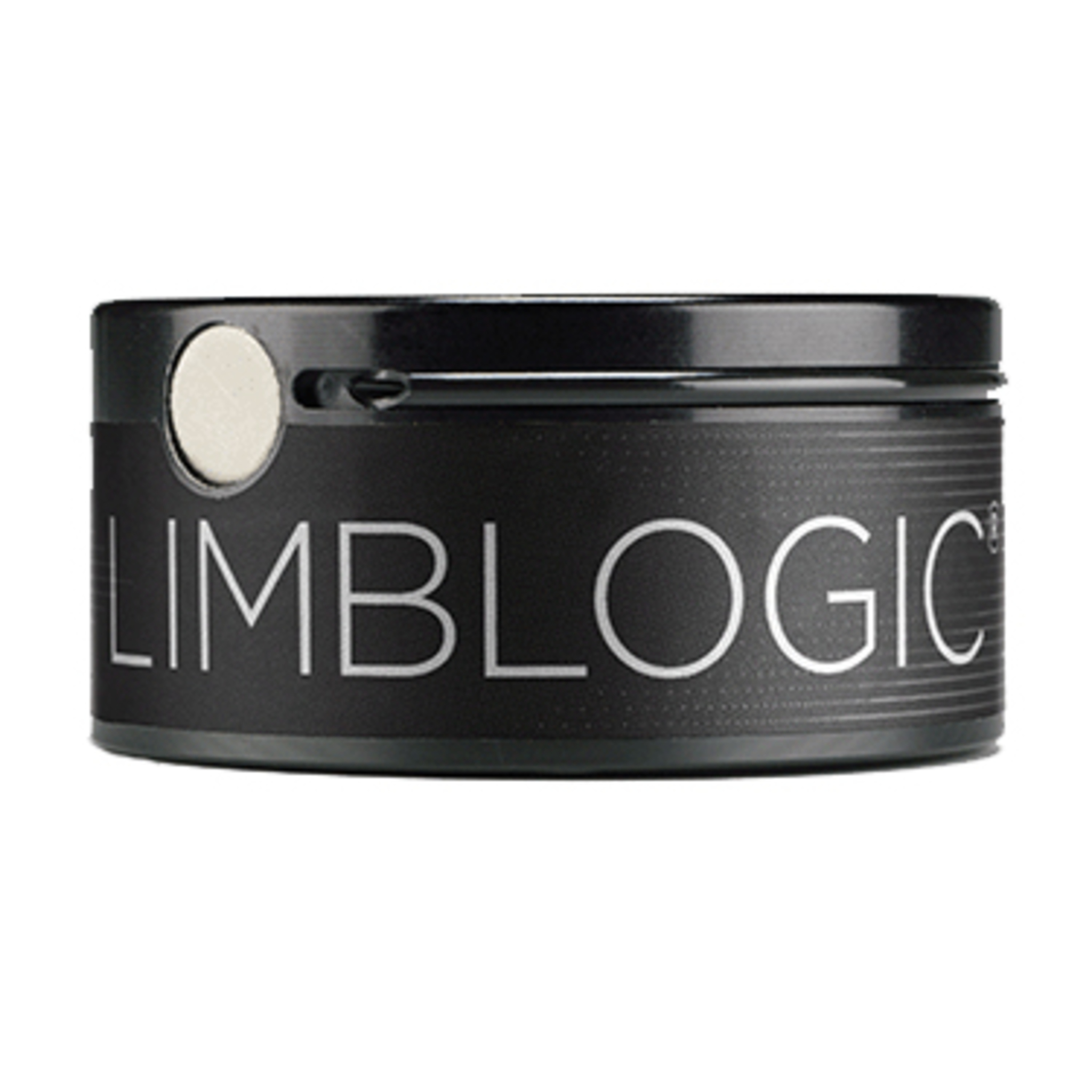

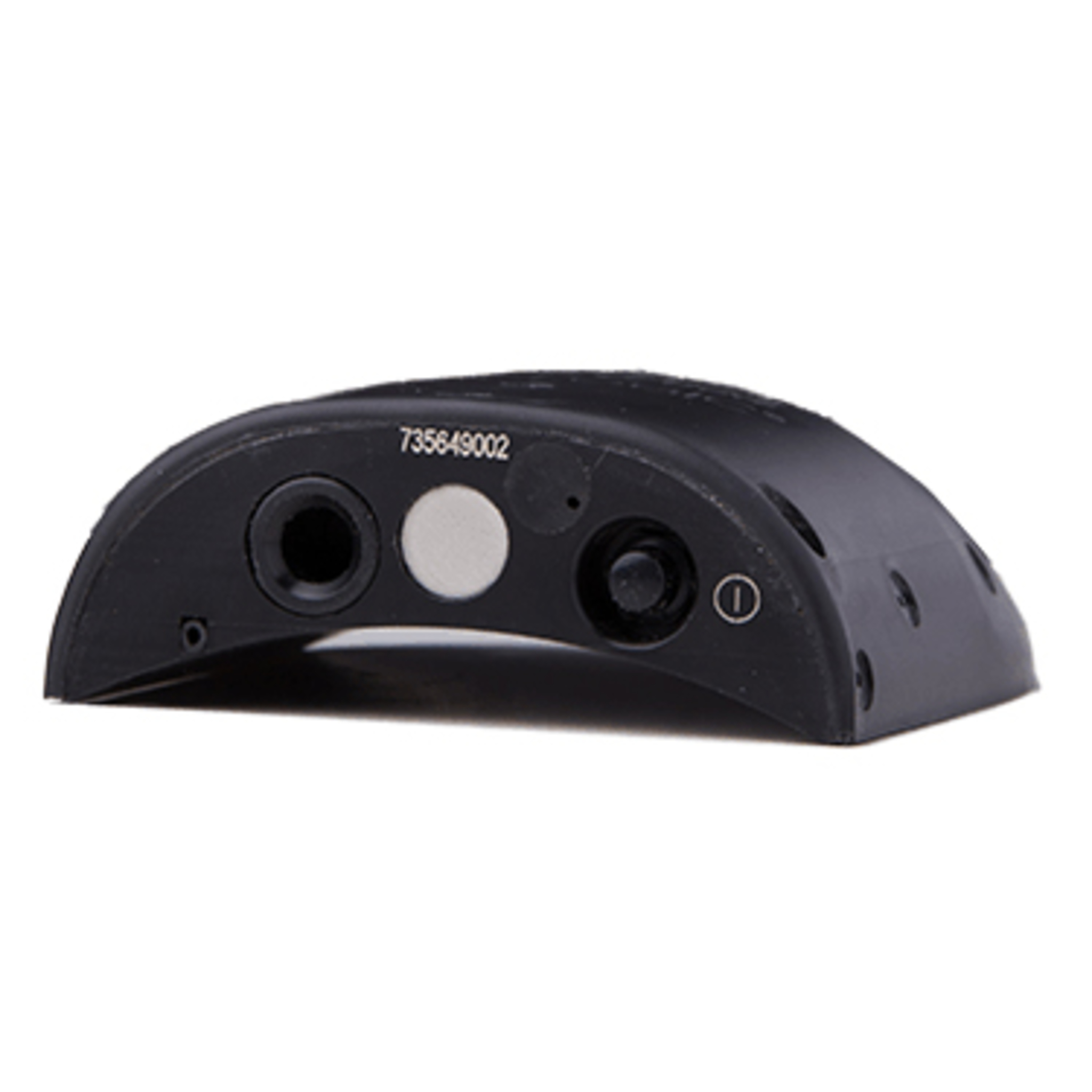

The LimbLogic® vacuum system features a small Bluetooth® Low Energy fob, inductive charging, and a choice of mounting style. The controller is offered as a distal-mount 4-hole controller to mount in line with a prosthesis or, when clearance is a concern, a side-mount to place on the side of a socket. The system continually monitors a socket's vacuum level within a set range, maintaining a secure fit. Amputees may use the handheld fob or their iPhone or iPad to increase or decrease the vacuum level as desired. The LimbLogic® Controller is waterproof in fresh water to a depth of 3 meters (10 feet) for up to 12 hours at a time. The handheld fob should not be exposed to water.

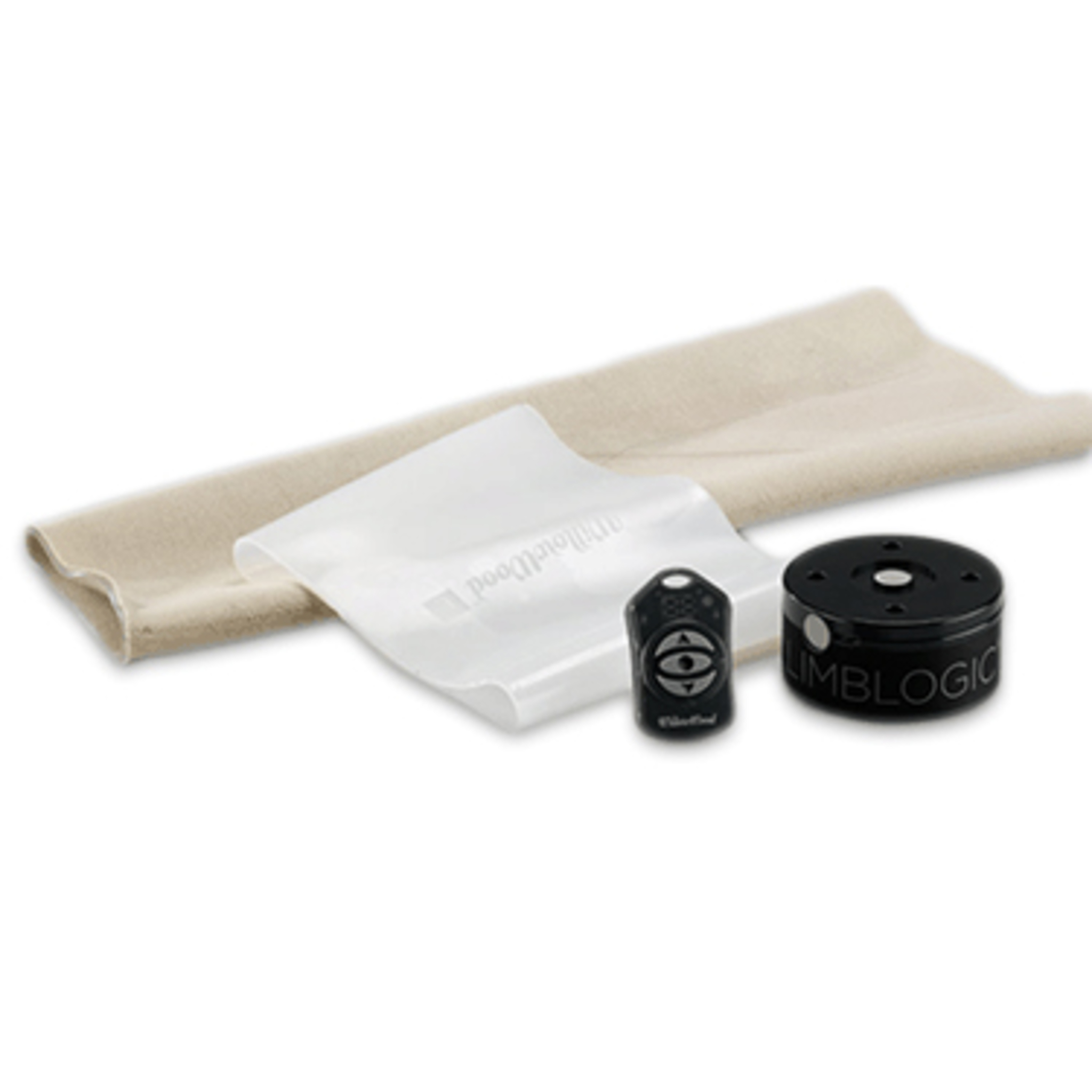

A silicone sleeve with repositionable cuff has been designed for use with the LimbLogic® system. The sleeve's repairable inner cuff may be rotated should a leak occur so that an airtight seal may be maintained at all times. The LimbLogic® Sleeve enhances knee flexibility and is constructed of medical-grade silicone.
- Inductive charging for easy patient use

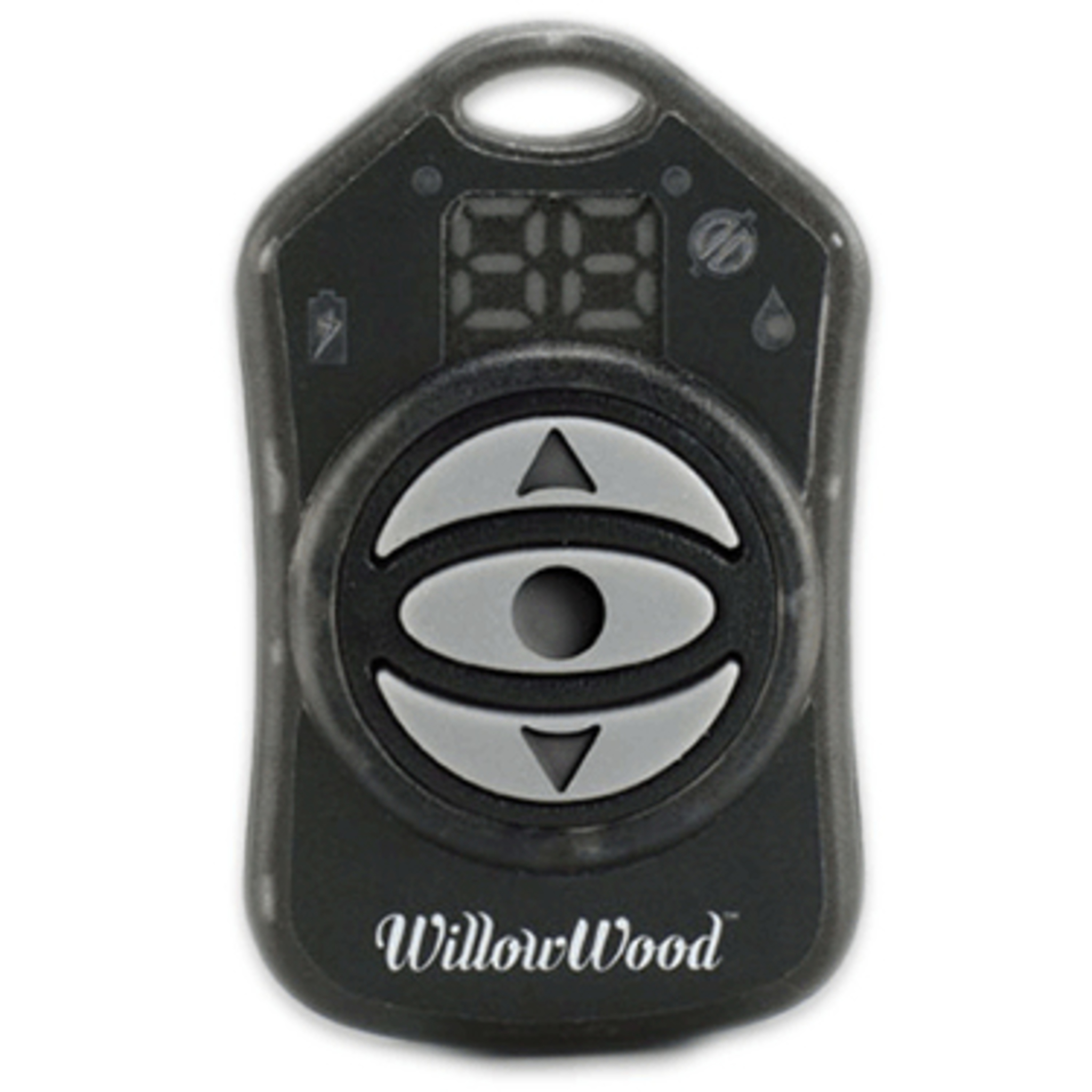

- Utilizes a smaller, more convenient Bluetooth® Low Energy fob
- Pump is waterproof in fresh water
Specifications
- Amputation Level: Transfemoral, Transtibial
- Activity Level: K1, K2, K3, K4
- Housing Material: N/A
- Max Vacuum (inHg): 20
- Weight Limit: 350lbs (160kg) for K3, 300lbs (136kg) K4
- Product Weight (g): 225 (Distal Mount), 209 (Side Mount)
- Build Height (mm): 36 (Distal Mount), 35.22x100.15 (Side Mount)
- Diameter (mm): 74.68
- Trial Period: 30 days from patient fit date
- Warranty: 24 months from patient fit date
Weight of single unit
Weight limit information (Distal Mounted) : With lamination kit = 160kg (350lbs) at K3, 136kg (300lbs) at K4 With thermoplastic adapter = 115kg (250lbs)
Activity level information : With lamination kit = High to Very High (K3-K4) With thermoplastic adapter = Moderate to High (K2-K3)
Communicator module sold separately
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
|---|---|
| Key Features: | Waterproof |
| Material: | Carbon Composite |
| User: | Adult |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 159 kg (350 lbs) |
| Fabrication Technique: | Lamination, Thermoplastic |
| Suspension Type: | Vacuum Systems |
