Locking Knees

Product information

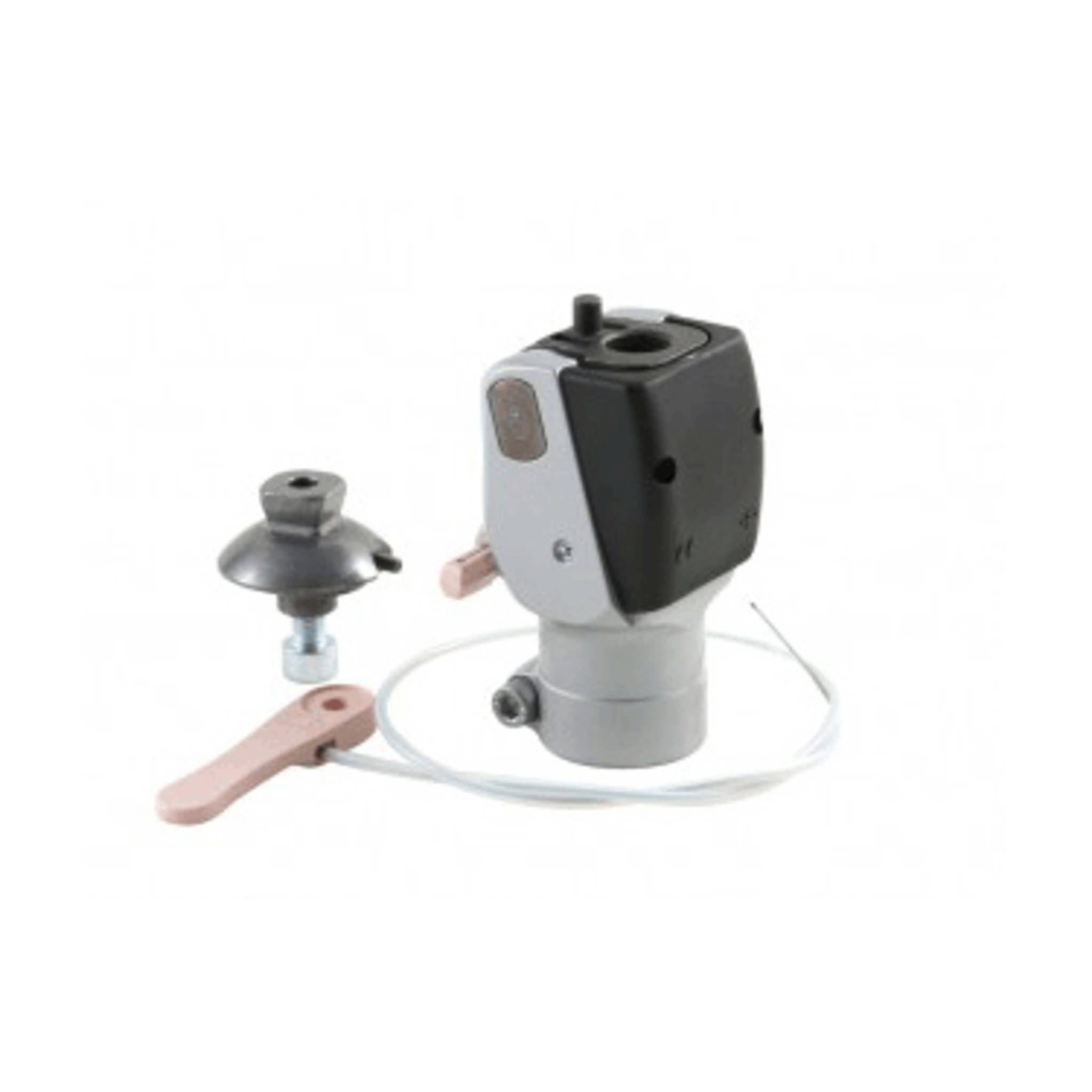

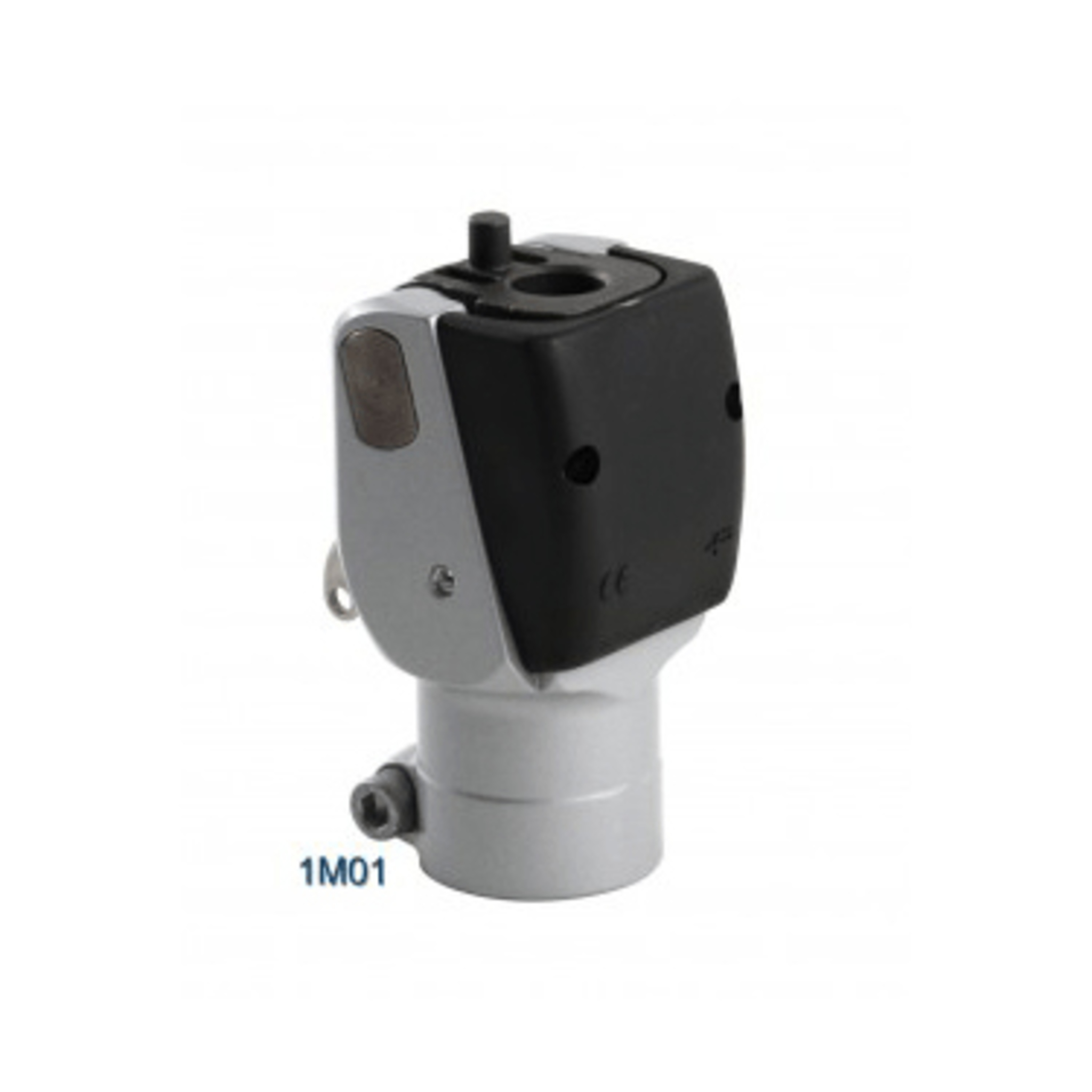

The Locking Knees feature a compact, lightweight design and a locking mechanism that allow the patient to walk in complete safety. The release cable for the 1M01 can be attached to either the right or left side of the leg.

  • Safe and reliable
  • Easy to assemble
  • Joint friction adjustment
  • Lock with adjustable stop

Specifications

  • Activity Level: K1
  • Knee Design Type: Single Axis, Manual Lock
  • Axis: Single Axis
  • Swing Phase: Friction
  • Stance Phase: Friction
  • Control Frame Material: Aluminum, Stainless Steel
  • Product Weight (g): 345-385
  • Maximum User Weight: 275lbs (125kg)
  • Maximum Knee Flexion Angle: 130 Degrees
  • Proximal Connection: Single Bolt Chassis
  • Distal Connection: 30mm Tube Clamp, 34mm Tube Clamp
  • Trial Period: N/A
  • Warranty: 12 months from invoice date
Activity Level: K1 (Low)
Amputation Level: Knee Disarticulation, Transfemoral (TF/AK)
Material: Stainless Steel, Urethane
User: Adult
Weight Limit: 100 kg (220 lbs), 125 kg (275 lbs)
Axis Type: Single Axis
Distal Connection: Tube Clamp
Proximal Connection: Single Bolt Chassis
Stance Phase: Friction
Swing Phase: Friction
