MATIK Knee

Product information

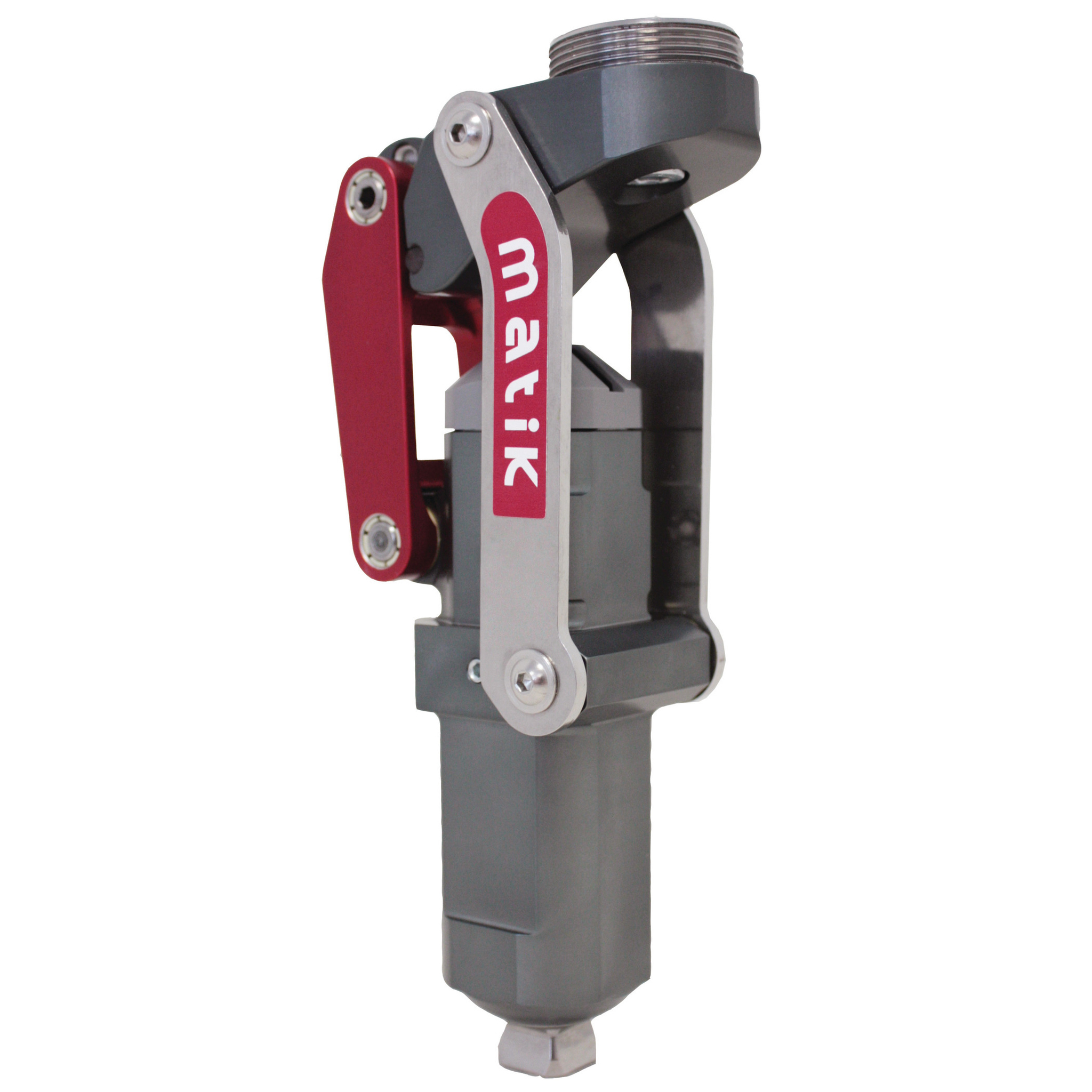

The MATIK knee features a double chamber pneumatic system with return spring and a 4-axis geometry providing a natural gait and patient safety. In swing phase, the pneumatic unit increases the performance and control of the swing phase.

  • Smooth resistance to extension
  • Compact and lightweight
  • Large range of flexion

Specifications

  • Activity Level: K2, K3
  • Knee Design Type: Multi-Axial 4-Bar Linkage, Pneumatic Swing Control
  • Axis: Polycentric
  • Swing Phase: Pneumatic
  • Stance Phase: Friction
  • Control Frame Material: Aluminum, Stainless Steel
  • Product Weight (g): 743
  • Maximum User Weight: 275lbs (125kg)
  • Maximum Knee Flexion Angle: 170 Degrees
  • Proximal Connection: Pyramid Adapter, Threaded Adapter
  • Distal Connection: Pyramid Adapter
  • Trial Period: N/A
  • Warranty: 24 months from invoice date
Activity Level: K2 (Moderate), K3 (High)
Amputation Level: Knee Disarticulation, Transfemoral (TF/AK)
Material: Stainless Steel, Urethane
User: Adult
Weight Limit: 100 kg (220 lbs), 125 kg (275 lbs)
Axis Type: Polycentric
Distal Connection: Male Pyramid Adapter
Proximal Connection: Male Pyramid Adapter, Threaded Adapter
Stance Phase: Friction
Swing Phase: Pneumatic
