Model F5 Aluminum Coupler with Pyramid Receiver

Product information

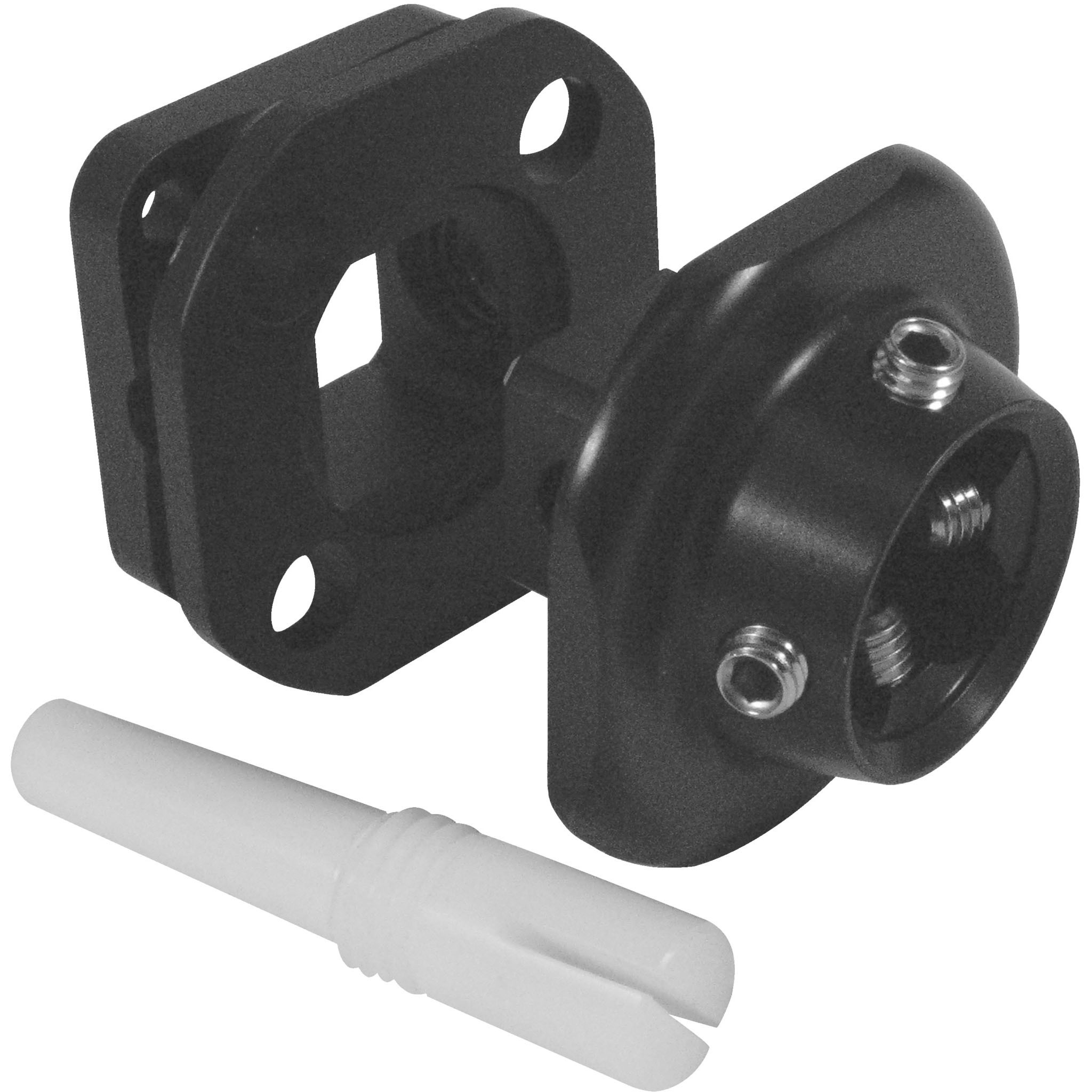

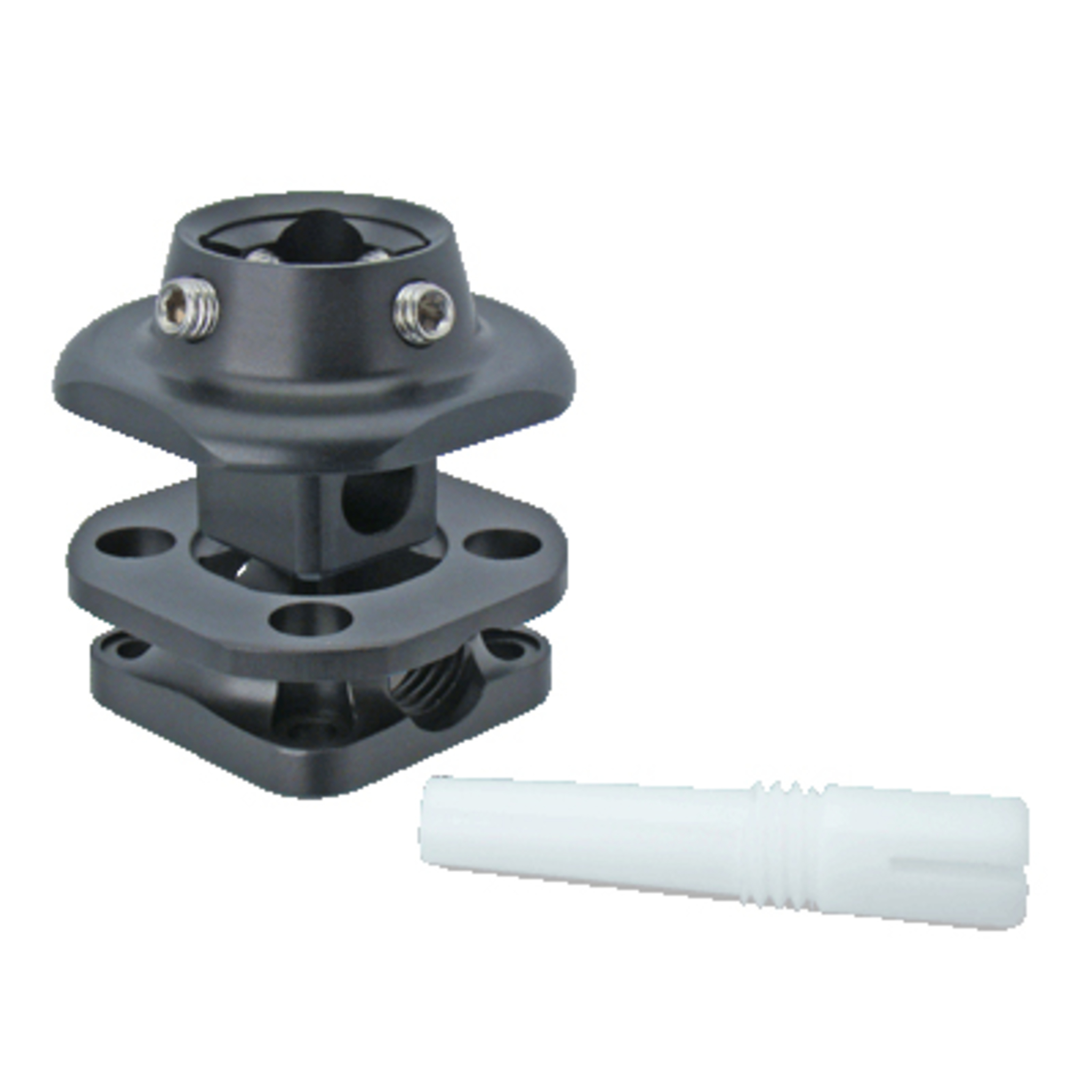

The F5 coupler with female pyramid receiver is for use in all lower limb prostheses. The male portion features a female pyramid receiver for simple assembly, fewer parts and weight reduction. The female portion bolts to any 4-hole component.
  • Hard coated for durability
  • Stainless 6mm bolts are included
  • All Models are interchangeable

Includes:
  • (1) A200 Female Portion
  • (1) F201 Male Portion
  • (1) D300 Delrin Pin
  • (1) KEY Pin Key

Specifications

  • Material: Aluminum
  • Weight Limit: 275 lbs (125 kg)
  • Build Height (mm): 44.5
  • Assembly Weight (g): 207
  • Torque (Nm): N/A
  • Warranty: Lifetime
Material: Carbon Fiber
User: Adult
Weight Limit: 100 kg (220 lbs)
Endoskeletal Type: Quick Change Adapters
