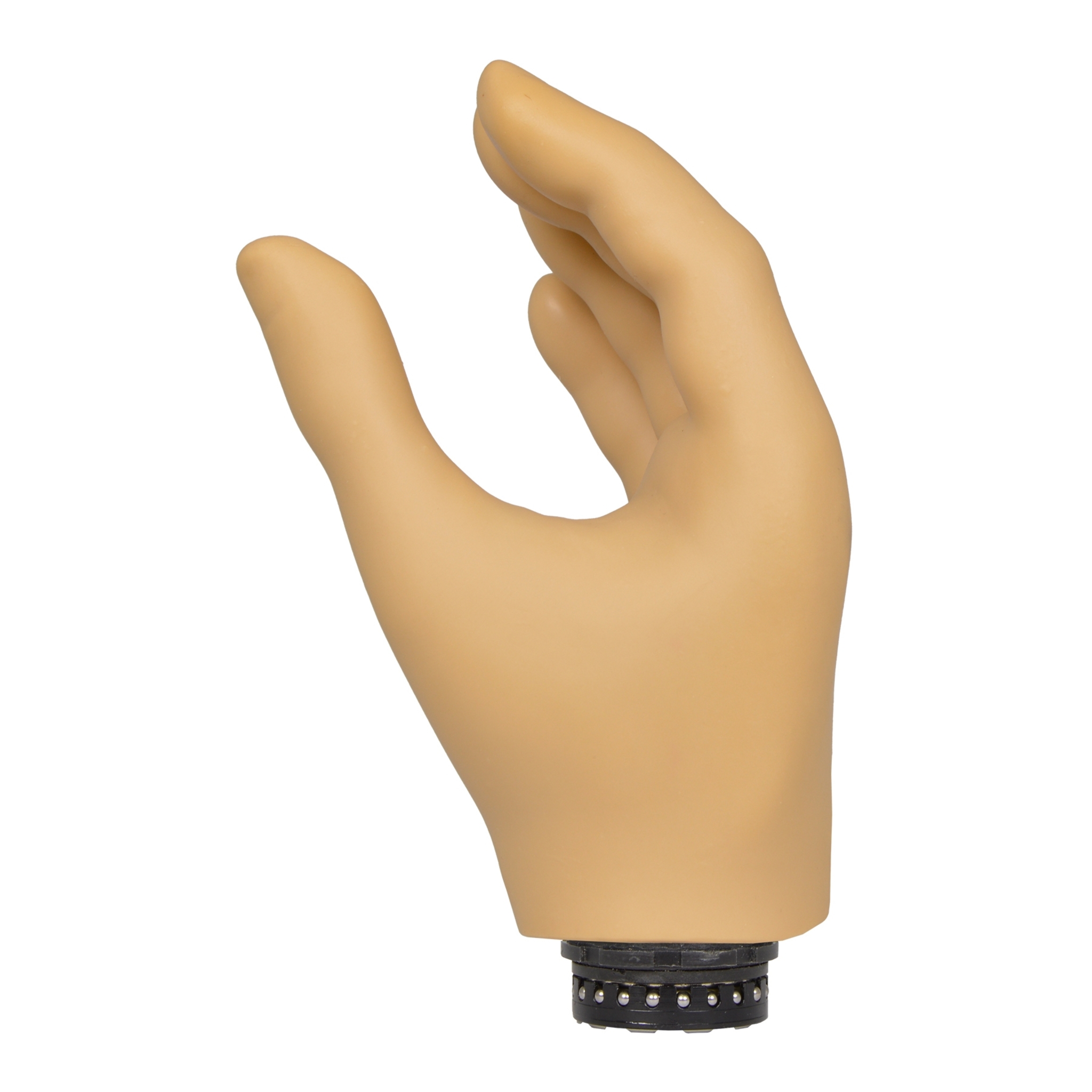

Motion Control Hand with Quick Disconnect Wrist
Motion Control Hand with Quick Disconnect Wrist
Product number:
5010025
Quick Links
Product information
The Motion Control (MC) Hand is made with high-strength, CNC machined fingers. It is wide opening and has a built-in safety release. The MC Hand serves as a useful tool for many tasks and lifestyles. Flexion Wrist or Multi-flex Wrist options are available, as well as an optional MC Wrist Rotator. The Standard Hand can be used with all Motion Control Elbow systems and ProControl 2.
- Operating Temperature: -5° to 60° C (23° to 140° F)
- Transport & Storage Temperature: -18° to 71° C (0° to 160° F)
- Pinch Force: At 7.2 volts: 10 kg (22 lbs, or ~ 100N)
- Operating Voltage Range: 6 to 16 Vdc (MC Hand)
- Load Limit: 22 kg / 50 lbs in all directions (+/- 10%)
- Return: 30 days from ship date
- Warranty: 12 months
| User: | Adult |
|---|
