Xtend® Connect Prime

Product information

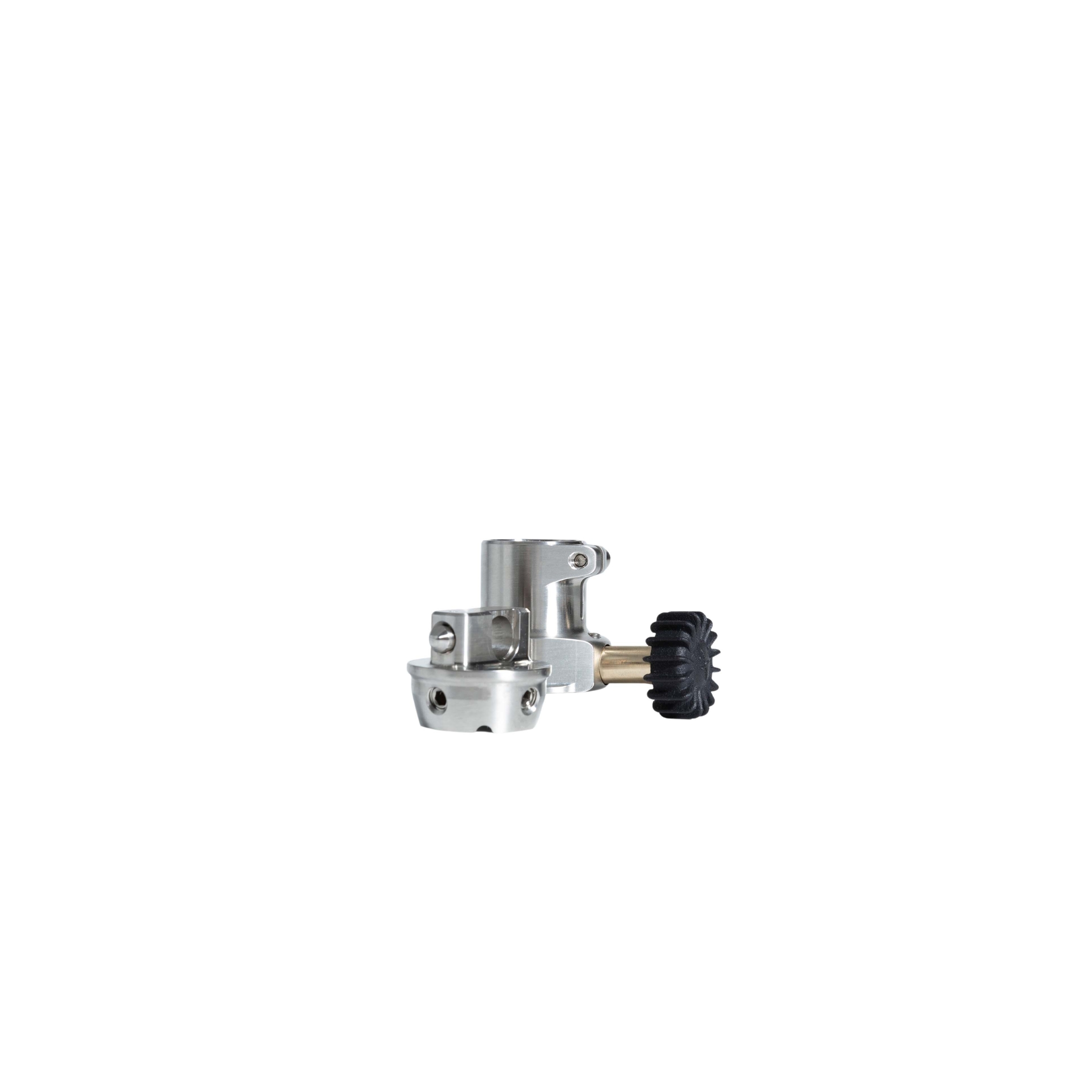

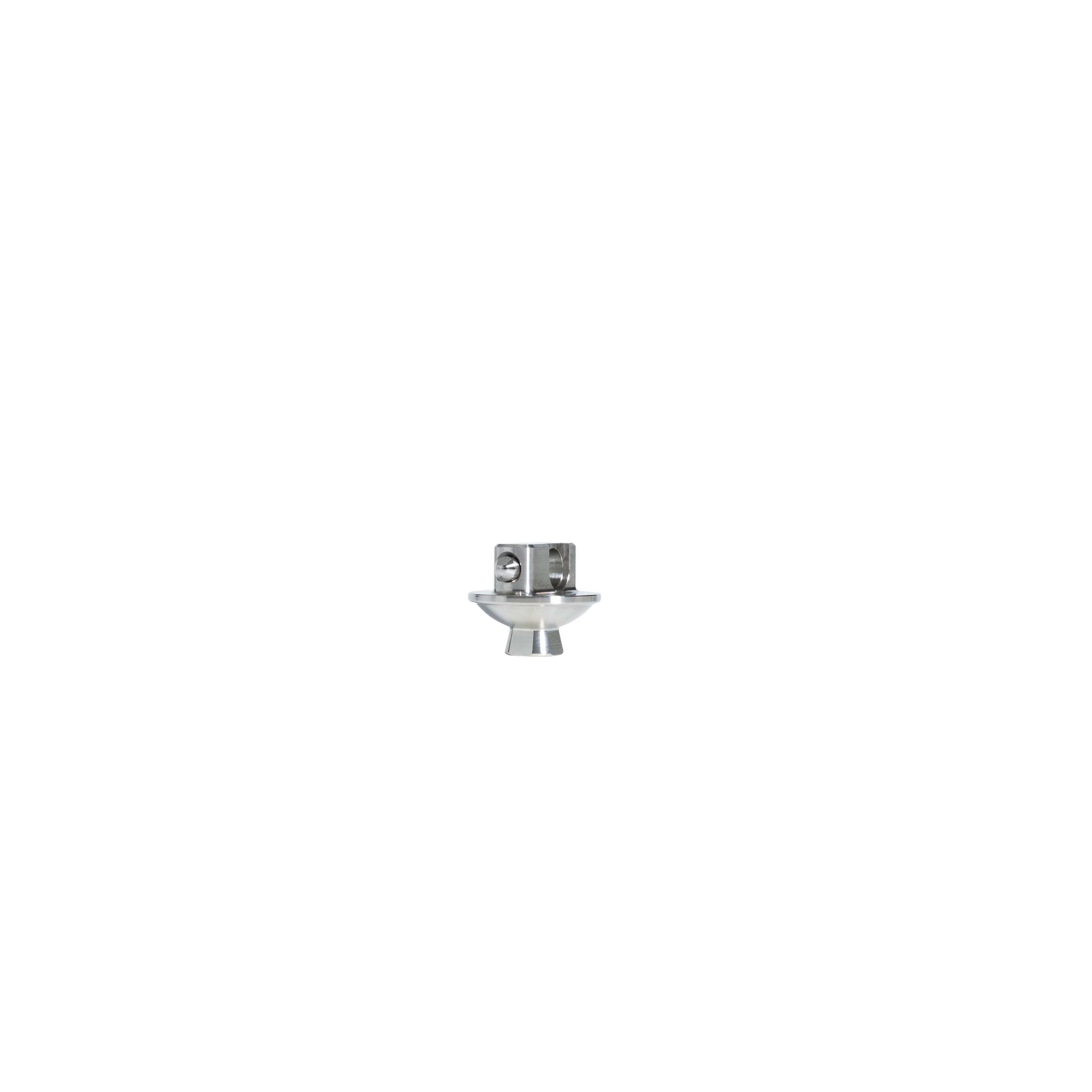

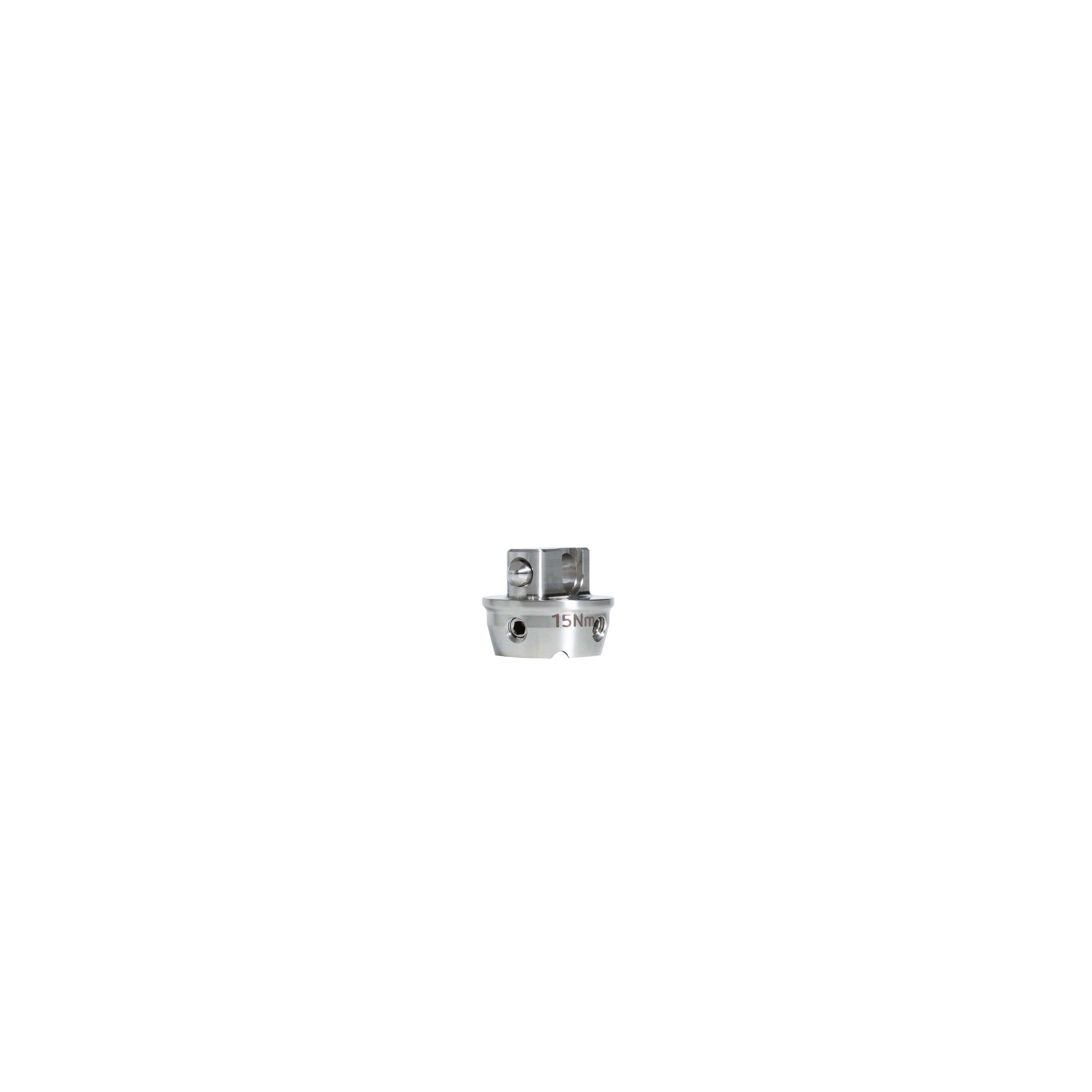

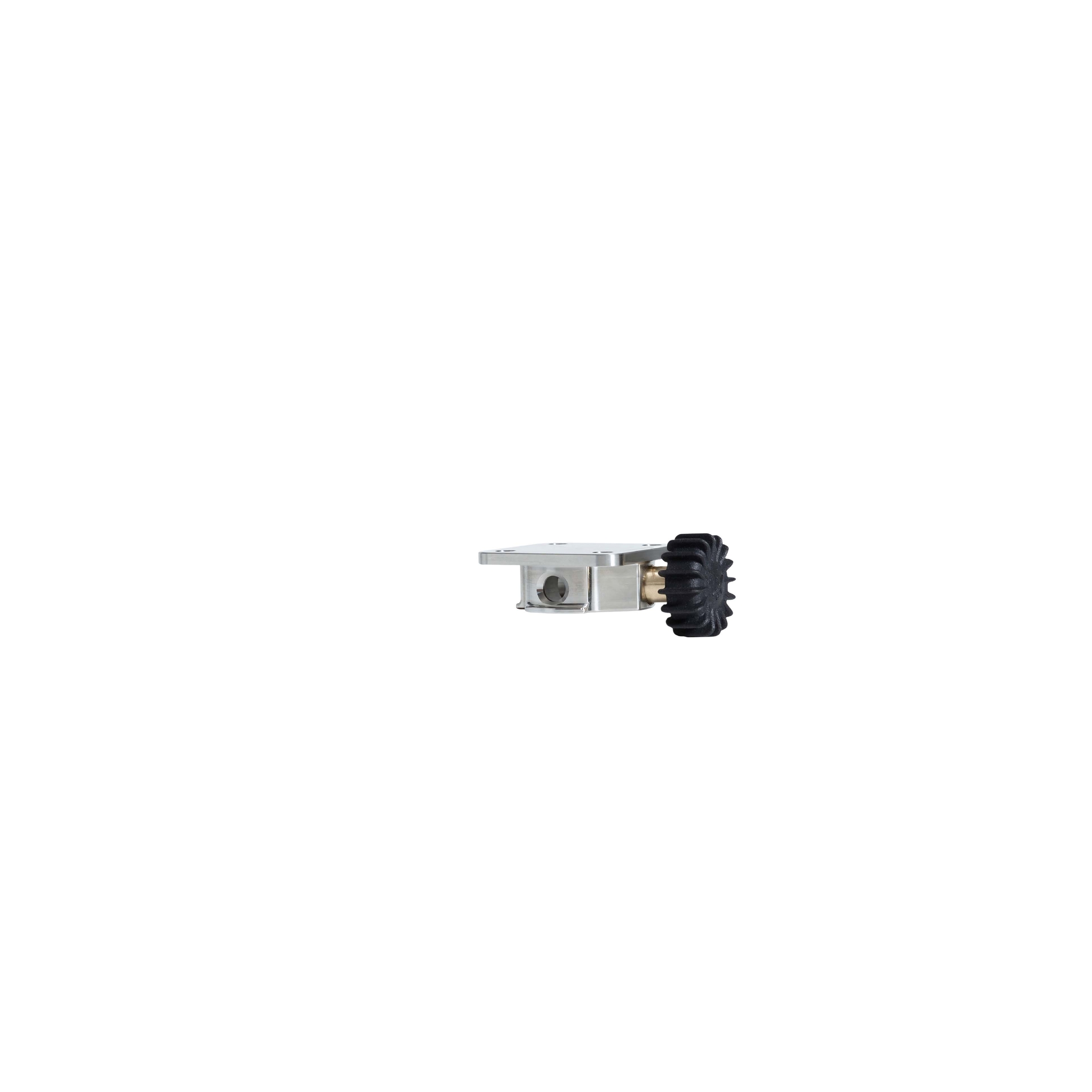

The Xtend® Connect Prime multi-functional adapter consist of two main components, a Quick Fit Unit and Base Unit, that allows for quick and easy changes from complete prosthetics for various activities. It fits all types of users, both uni and bilaterial, above and below knee, and to most prosthetic systems used today.

  • Quick Fit Unit and Base Unit are both required

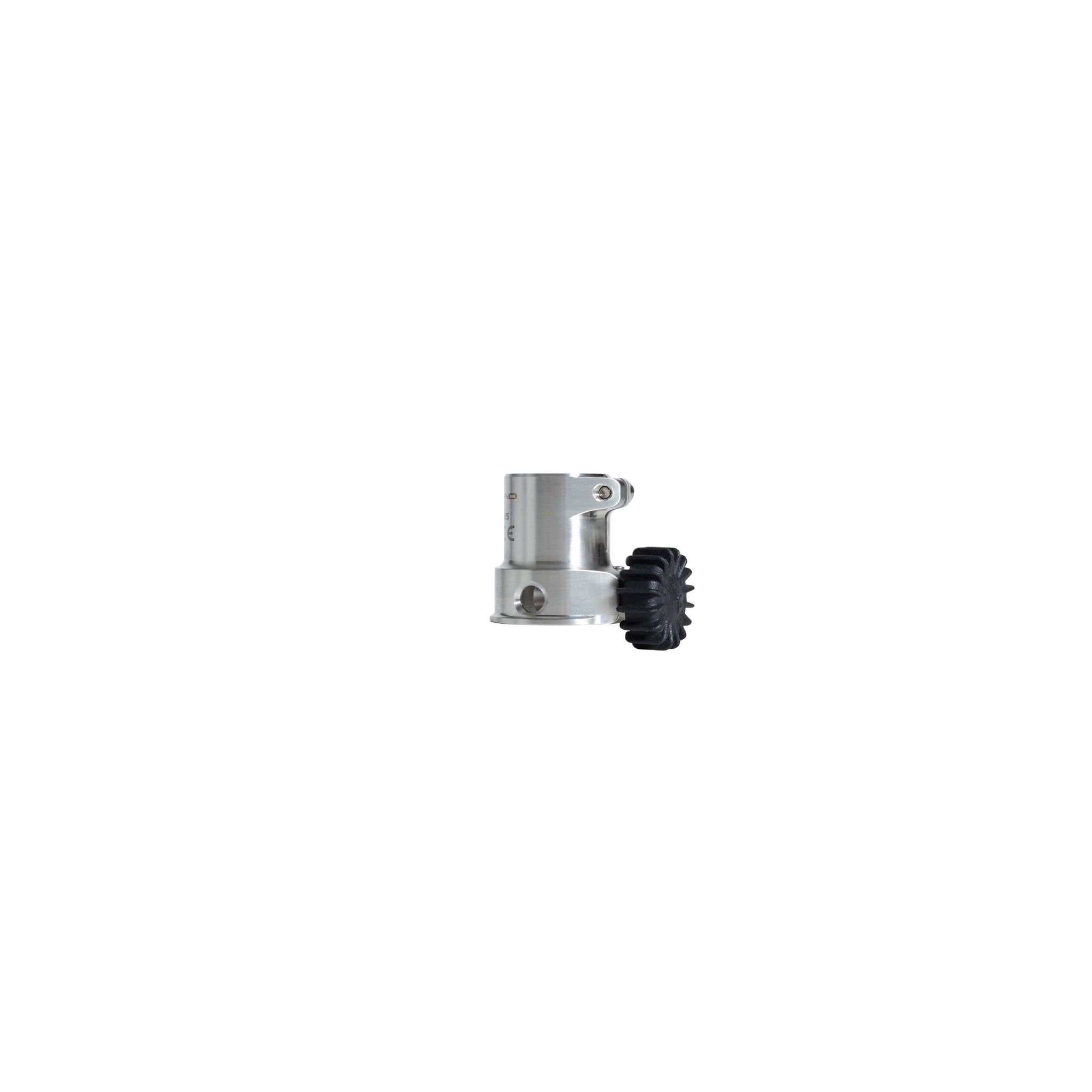

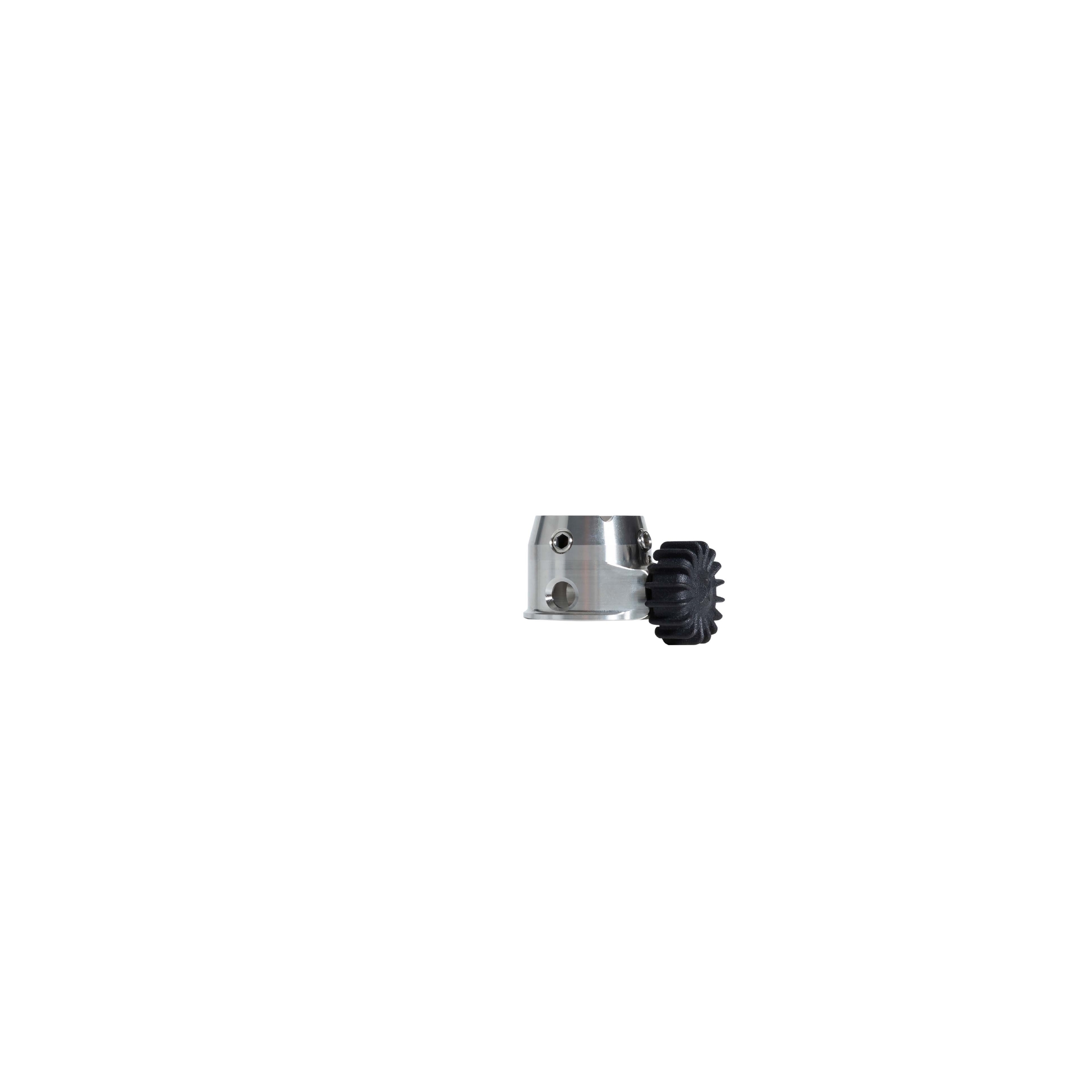

  • Quick Fit Unit that can be opened and closed with the aid of a locking wheel and a safety push-button
  • Minimal extra “build height”
  • All connection solutions can also be freely combined
  • All components can be rotated in any direction
  • Waterproof- including salt and pool

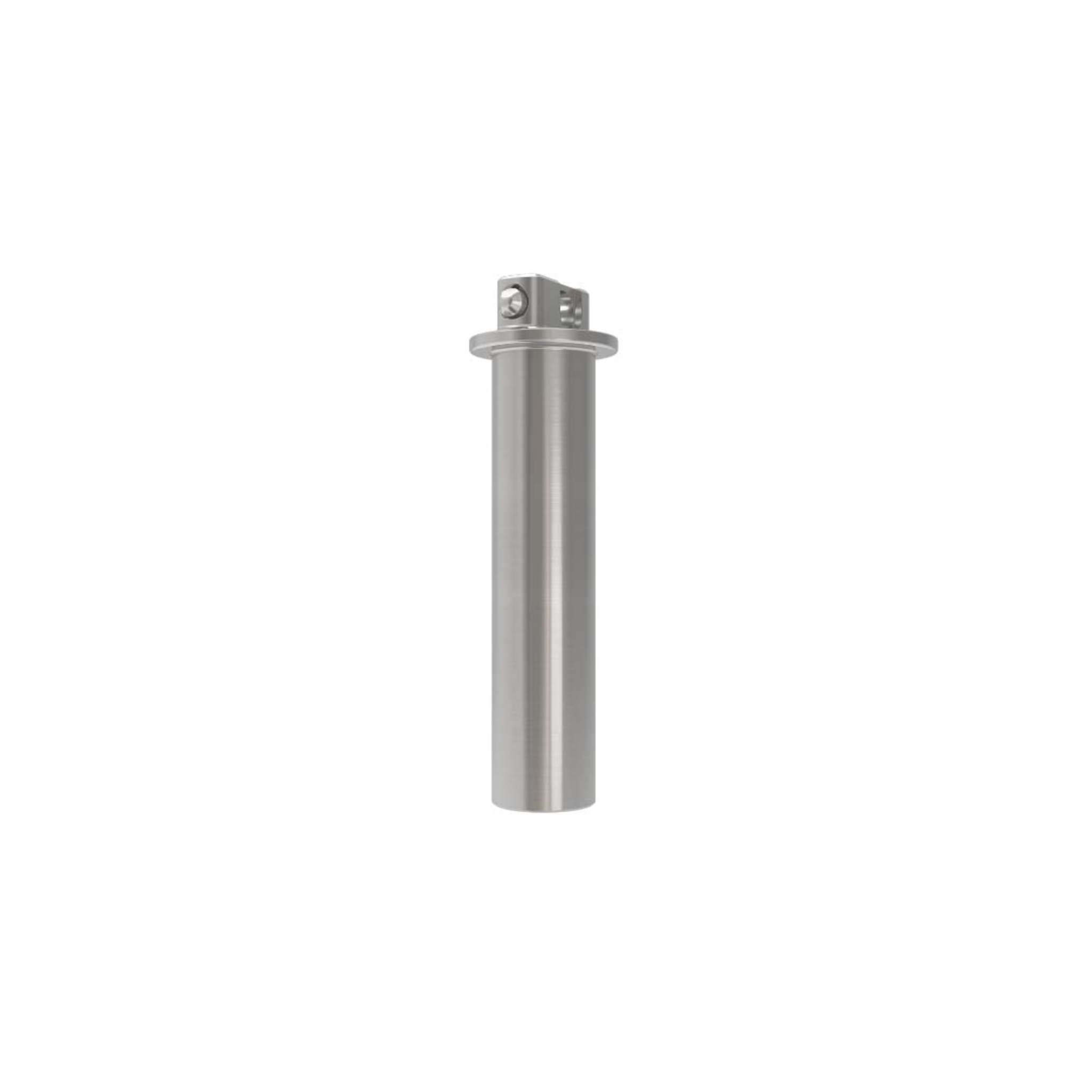

  • B30: Adaptable effective height and weight as the tube can be cut off with up to 100 mm.

Specifications

  • Material: Stainless Steel
  • Weight Limit: 330 lbs (150 kg)
  • Build Height (mm): 39-179
  • Assembly Weight (g): 274-519*
  • Torque (Nm): 15 (Set Screw), 7 (Clamp Screw)
  • Warranty: 12 months from patient fit date, 60 days trial period

Product Configurator

Locking wheel Color

Key Features: High Weight Limit
Material: Synthetic
User: Adult
Weight Limit: 150 kg (330 lbs)
Endoskeletal Type: Quick Change Adapters
