Product information

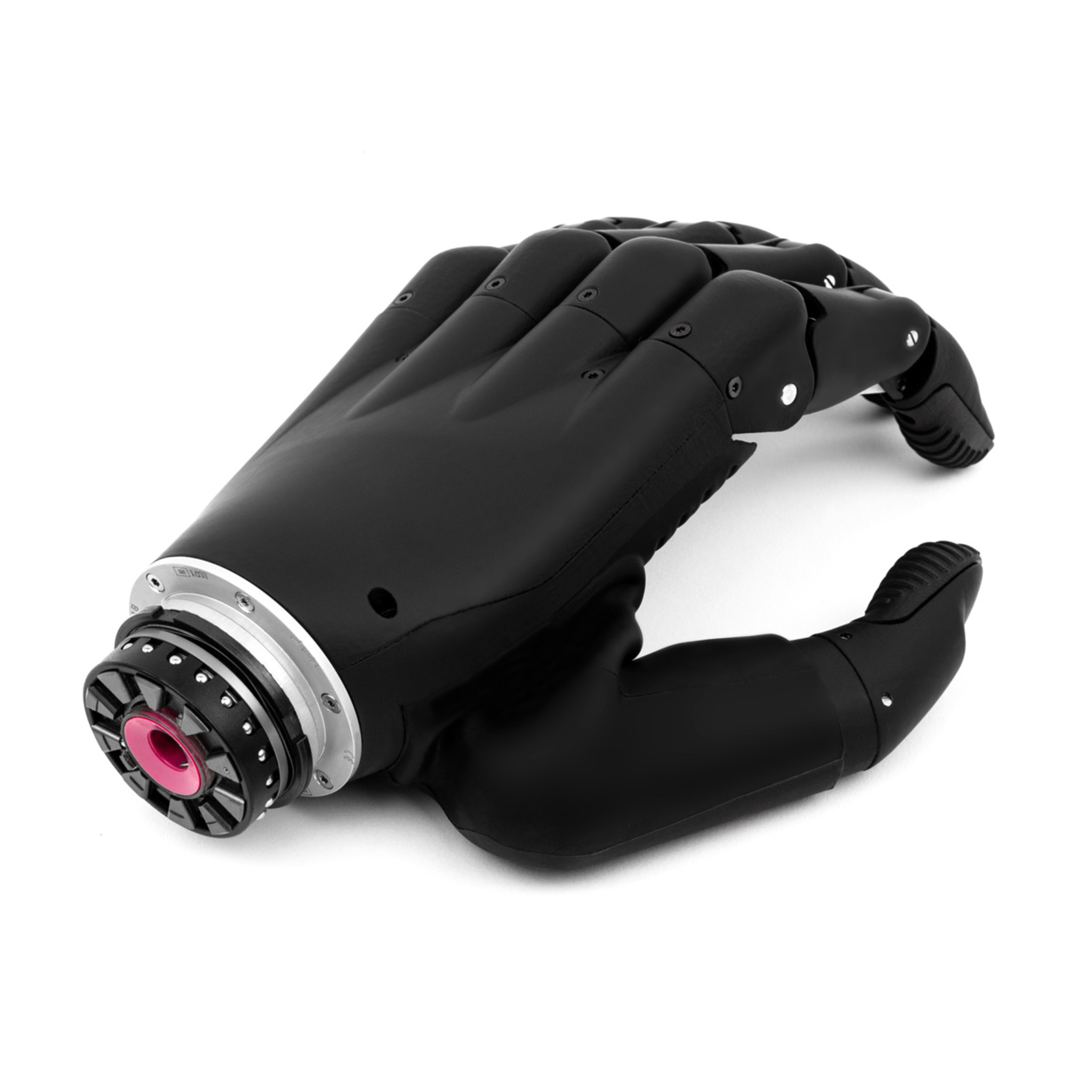

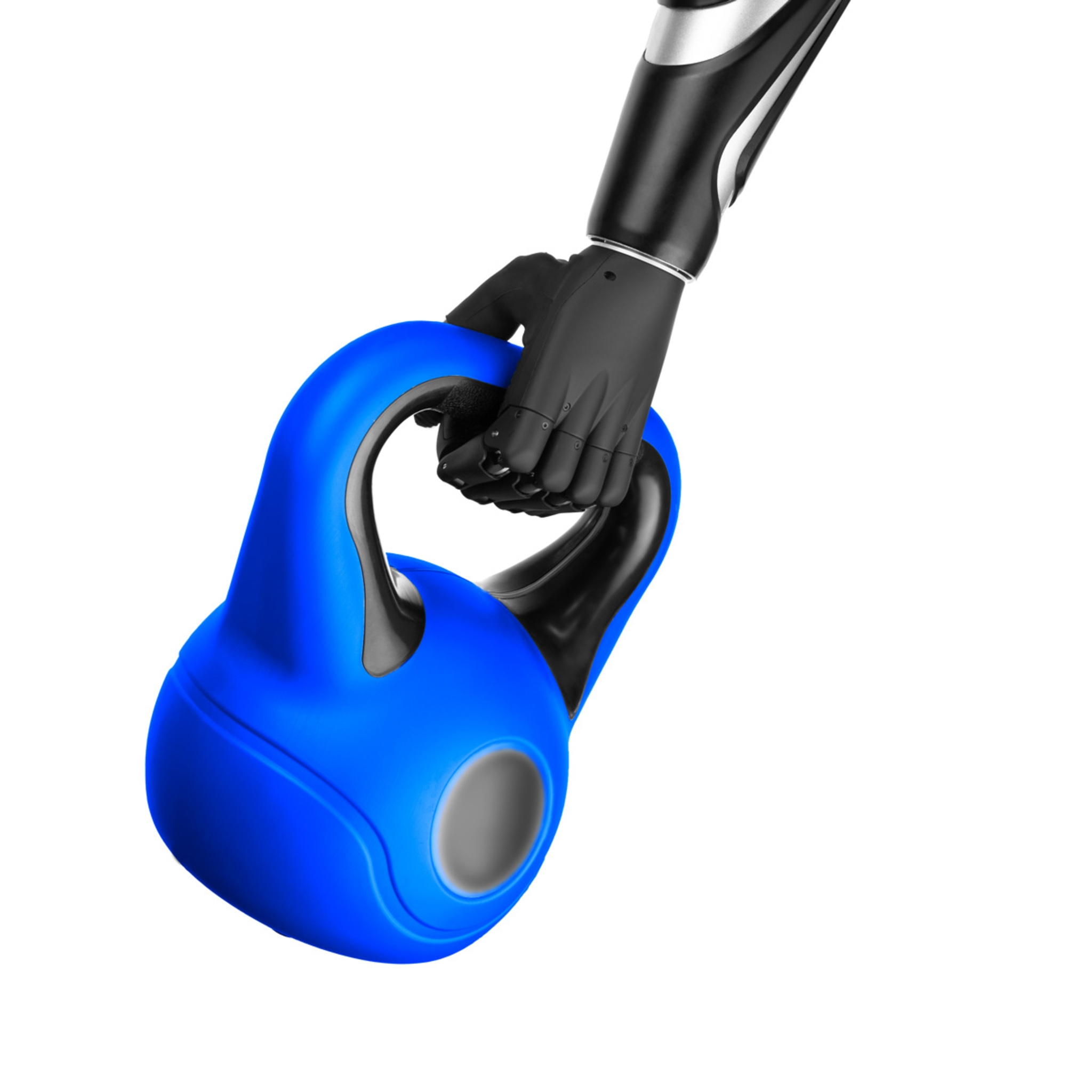

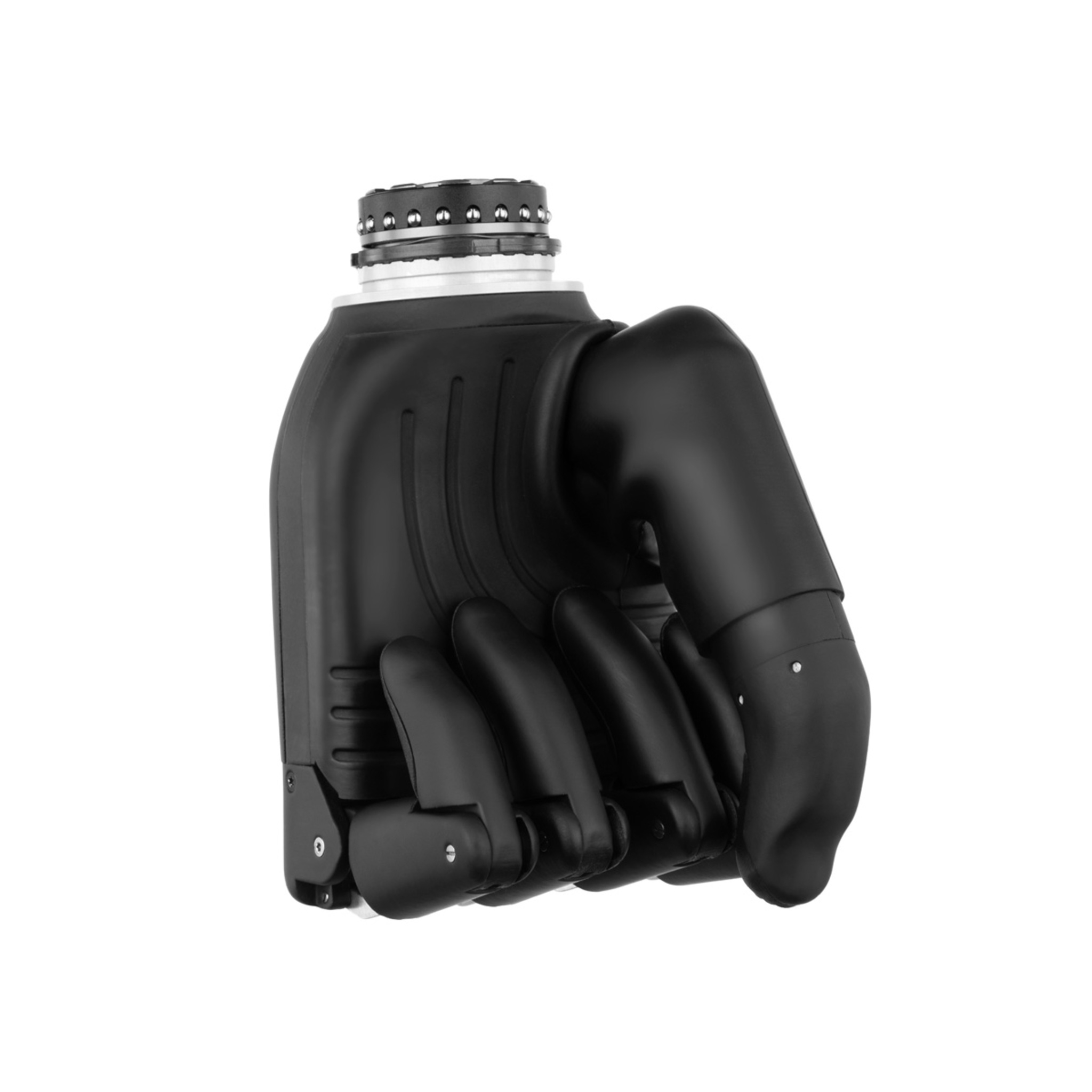

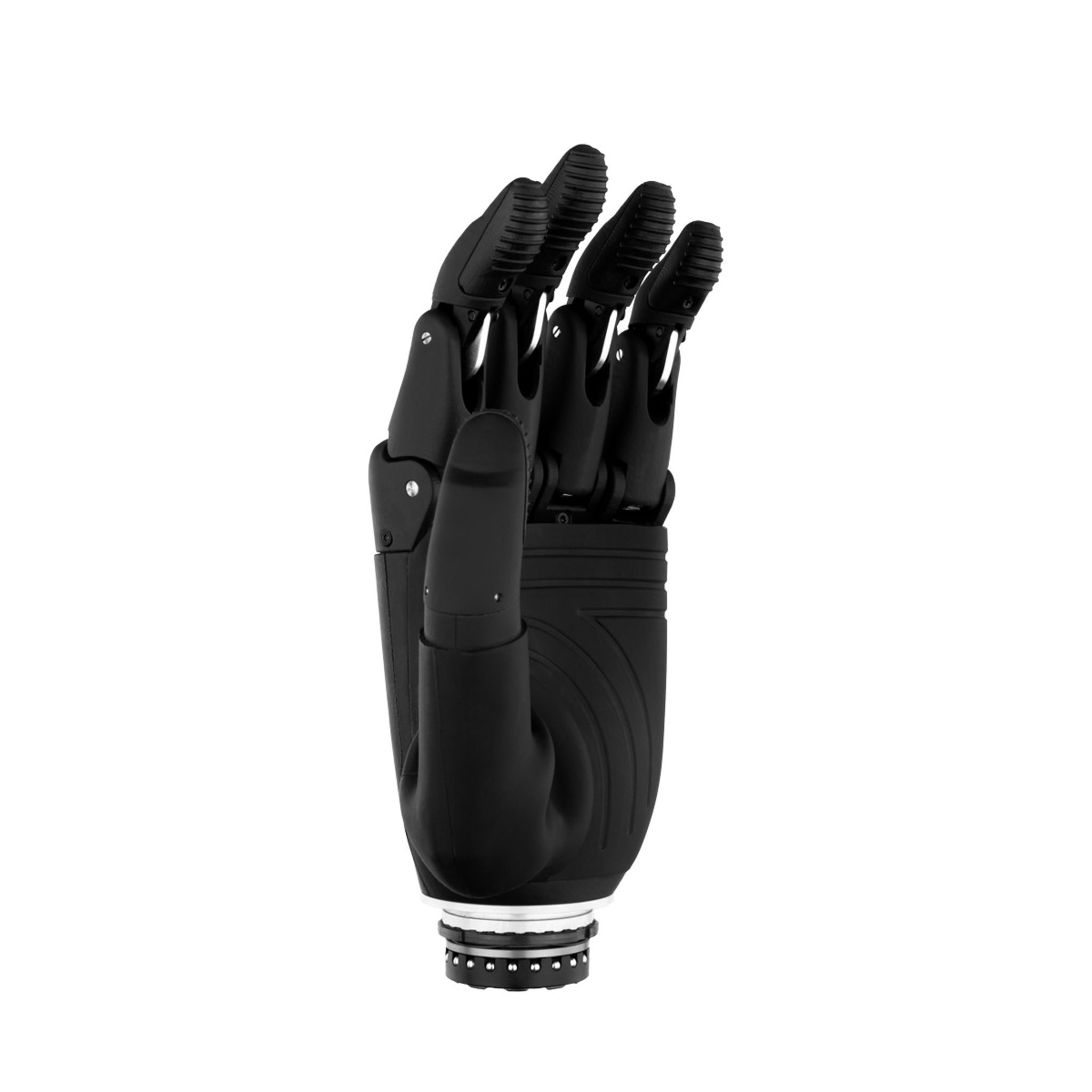

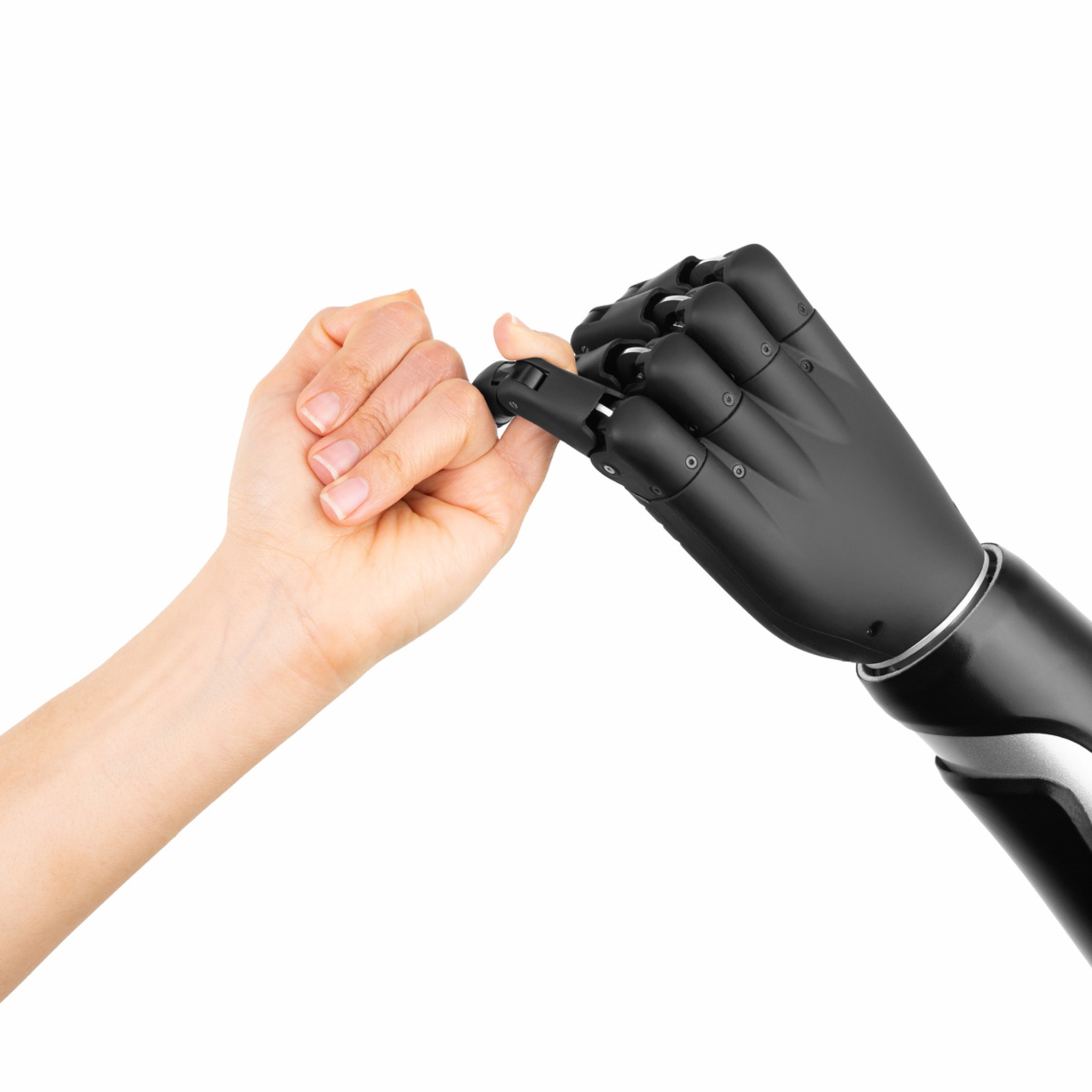

The Zeus hand is a multi-articulating myoelectric hand combining ease of control with an elegant, robust design. With a choice of 12 grips, the fingers and thumb provide a firm grasp to perform everyday tasks with ease. The fingers stall individually, allowing them to conform to the shape of the object, regardless of shape and size. The hand is compatible with most industry standard electrodes and batteries, as well as a variety of wrist rotators and elbows.
Specifications:
- 12 Selectable grip patterns
- Compliant fingers to prevent breaking of finger units
- Modular design all repairs can be done under 60 minutes
- Closing speed of 1.2 seconds
- Strong bionic hand (34.17lbf/ 152N grip force)
- 5 Individually motorized articulating digits allowing for dexterity in movement
- Opposable thumb
- Closed loop motor control sensing finger position and applied force for proportional control
- Hand Type: Myoelectric, Multi-Articulating
- Amputation Level: Transhumeral, Transradial, Wrist Disarticulation
- Impact Level: Low, Moderate
- Thumb Rotation: Manual
- Grip Patterns: 12 Automated Grips
- Hand Load Limit (Static): 79lbs (36kg)
- Finger Carry Load (Static):
- Time from Full Open to Full Close: 1.2 Seconds
- Device Weight: 1.2lbs (560g)
- Voltage: 7.4 V
- Warranty: 36 months (Canada only)
- Extended Warranty available
